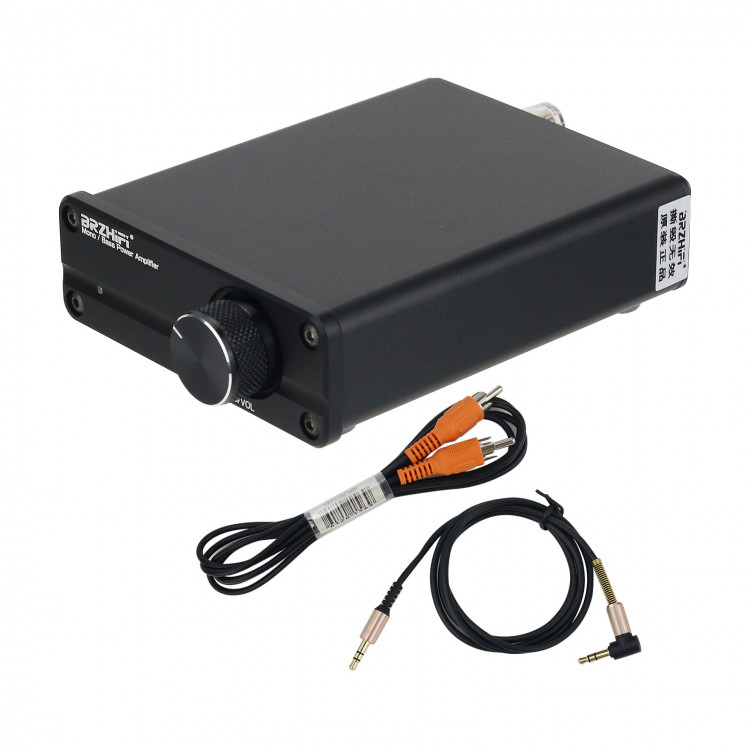

Mono Power Amplifier Subwoofer Power Amplifier 2.0 Channel to 2.1 For Home Theater (No Power Supply)
Features:
- 2-in-1: It can be used as a high-power subwoofer amplifier or a mono full-range amplifier.
- The subwoofer power amplifier uses imported components from the audio industry. HiFi PCB circuit is 2 times pure copper wiring, high current output coil. It can easily drive 5-12 inch subwoofer unit speakers.
- One-button switching function. Switching using modes through the button, the power amplifier can be used as a high-power mono-channel full-frequency power amplifier, and can be connected to full-frequency or cross-frequency speaker units and loudspeaker boxes.
- Brand-new Design Concept: adopt the method of combining stereo inputs, input the stereo sound of the left channel and the right channel at the same time, and merge through the first-level independent IC, so that the low frequency can perfectly derive the live performance of stereo. The low-frequency atmosphere and the stereo mix are more harmonious, the saturation and the sense of surround become stronger, and the surround effect is more prominent.
- Combined Design Ideas: the power amplifier input signal is first subjected to signal analysis and frequency point processing, and then power amplification. This not only makes the low-frequency filter more pure, but also more efficient in power consumption. There are two ways to use a power amplifier. You can use it as a professional high-power low-frequency power amplifier to drive passive sub-woofers,
- High-power output coil can pass 30A current instantly.
- Array high-speed high temperature resistant aluminum shell capacitor.
- TPA3116 power amplifier IC.
- Frequency analysis processing combination and amplification IC.
- Anodized coating on the surface of all aluminum alloy shell, exquisite hand feeling, the shell does not fade.
Specifications:
- Model: Mono or Bass
- Impedance: 4-8Ω
- Rated Power: 100W, 300 (Peak)
- Frequency Range:
* Low pass mode 20-200Hz
* Full frequency mode 20-20KHz
- Recommended Configuration:
* 5-12 inch passive bass unit loudspeaker box
* 3-8 inch passive full frequency or frequency division loudspeaker box
- Power Supply Requirement: DC 12-24V
- Interface Type: DC port positive inside and negative outside. 5.5mm external diameter. 2.5mm internal diameter
- Product Size: 87 x 32 x 102 mm
- Weight: 250 g
Package Included:
- 1 x Power Amplifier
Note:
- Power supply is not included in the package. If it is needed, please contact us to pay extra money. Thank you!
- Other items in the pictures are not included.
Protection System:
1. Soft start power switch: protect speakers switch from impact interference.
2. High frequency ring resistance constant voltage power management system: when plugged into DC power supply, there is no arc spark, safe and reliable to use.
3. Power-off sub-voltage surge wall: block the shock damage caused by power failure and voltage loss to speakers.
Attention:
Users with power supply lower than DC 20V, such as 12V battery / battery power supply (battery is not included) for cars and motorcycles, it is recommended to use our company's booster power supply to ensure power amplification and power output to obtain a good HiFi experience. If step up power supply is needed, please contact us to pay extra money.
