Morse Code Beginner II Short-Wave Radio Transmitter CW Morse Code Telegraph Auto Key Morse Trainer

Morse Code Beginner II Short-Wave Radio Transmitter CW Morse Code Telegraph Auto Key Morse Trainer

Description:
- MORSE CODE BEGINNER II trainer supports automatic key and manual key learning, you can use the automatic key simulation BUG key.
- Wide operating voltage range. Support earphone, headphone volume is adjustable.
- You can choose whether to connect the radio sound off the rear to accommodate a variety of radio stations.
- Automatic key support pinching hair, dashed alternately hair, the last point designated memory function.

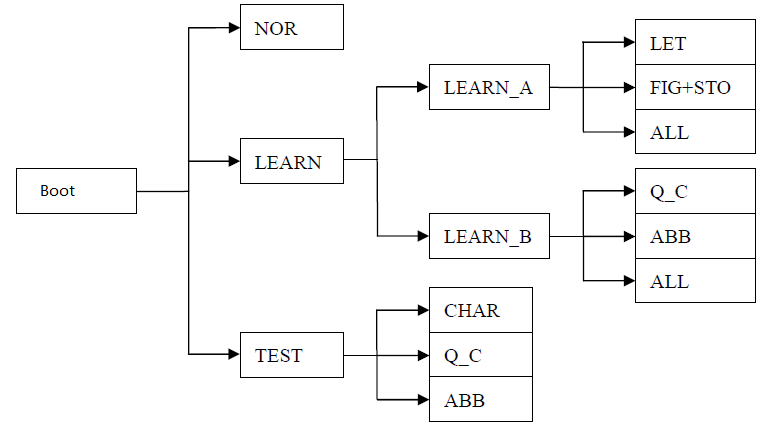

- Practice and test mode can be copied listen and hair code training, sequential and random modes to choose from.
- Perfect connection with HF and UV stations, convenient and practical self-test exercises.
- If the external audio PLL circuit increases added, it can decode CW.

Connection Description:
- Power: internal DC7V ~ 28V is outside the negative polarity reversal machine does not work. Shall not exceed the maximum power supply voltage 30V, otherwise the machine will burn.
- Keyboard: standard PS / 2 keyboard, use hair code in NOR mode.

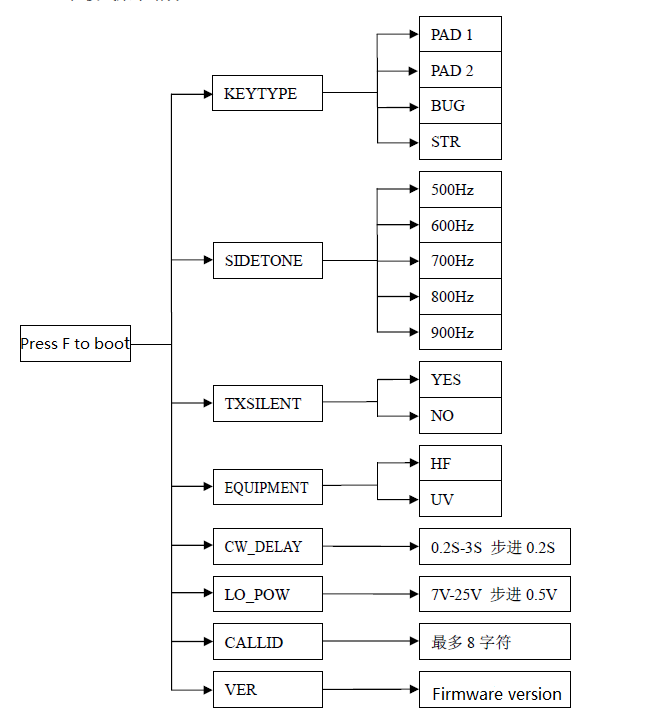

- Radio: mono 3.5mm plug. When using dual-channel interface to the middle part must be grounded. When using HF radio set radio set key Options
- Set manual key, when using a UV station, refer to Figure 2 connection, and set training-related options, and the same connection at the HF device is omitted.
- Key: 3.5mm plug, auto key dual-channel plug, the manual key to use mono plugs. Such as manual key using dual-channel connectors connect the intermediate portion
- Points floating or grounded.
- Headphones: binaural 3.5mm plug, such as using a mono headset might not be automatically muted.

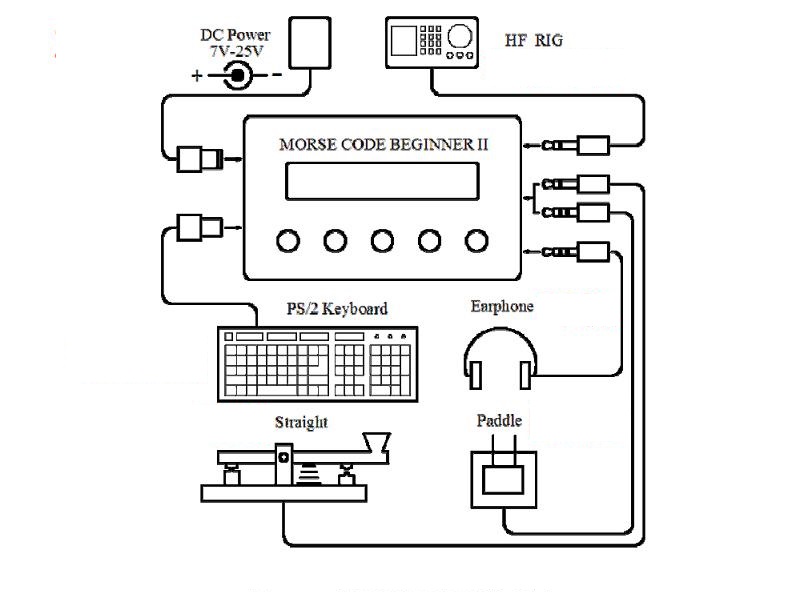

HF connection diagram electrical equipment system :

UV equipment system electrical connection diagram:

Packing Content:
- 1 x Morse Code Beginner II
