Motion Controller Kit Handwheel CNC Router DM500 4 Axis 500KHz

DM500 3 Axis 500KHz Handwheel CNC Motion Controller For CNC Router Engraving Milling Machine

Package:

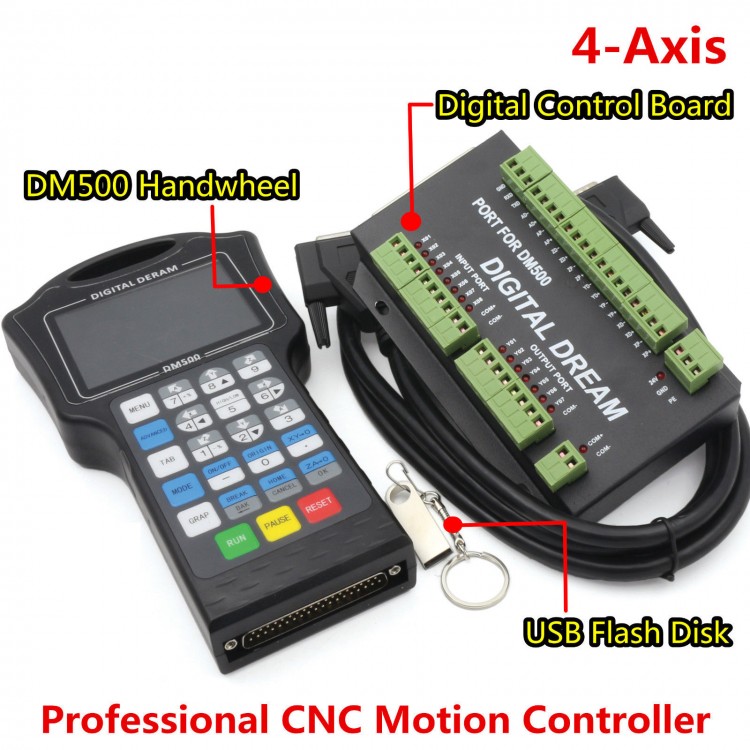

1 x DM500 Digital Control Board

1 x 4 Axis DM500 Handwheel Controller

1 x USB Flash Disk

​1 x English User manual will send by Email

1.1 Introduction of Product

DM500 is very professional CNC Motion Controller which is based on embedded system.

DM500 operates as a standalone system without the need of a computer,and with a pendant,it makes users very convenient to opreate the machines.

Our controller adopts Embedded Operating System,by which the controller will never get virus-infected.

And the controller adopts look-ahead algorithm by which the the controller can read more ahead 30-lines G-code than the operating.

All the features guarantees high precision,accuracy and reliability.And the size is very small, oepreation is very easy,very suitable for all size of Engraving machines, Milling machines and cutting machines and so on.

1.2 Performance parameter

1) Max. 4 Axis;2-4 Axis linear interpolation,any 2 axis circular interpolation;

2) 7 opto isolated digital outputs,8 opto isolated digital inputs;

3) Support every Input and output port definition by users.

4) The controller need 2 power supply,one power supply is for system power,one is for input and output ports power.Both input power is 24V,2A.

5) Open-collector output, Max. output current is 500mA,can power the relay directly;

6) Differential Pulse and direction output signal,Max. 500Khz per axis;

7) Spindle Control: 3 I/O ports control 8 different speeds(3 lines 8 speeds),1 I/O control the Start/Stop;

8) The System Support standard G-code.Also Support the popular CAD/CAM software,such as ArtCam,MasterCam,ProE and so on.

9) USB flash disk support for G code file input;

10) The control system can preview the process path before machining,and it makes the system more steady,working smoothy and precise;

1.3 Appearance, Structure and Size of Product
