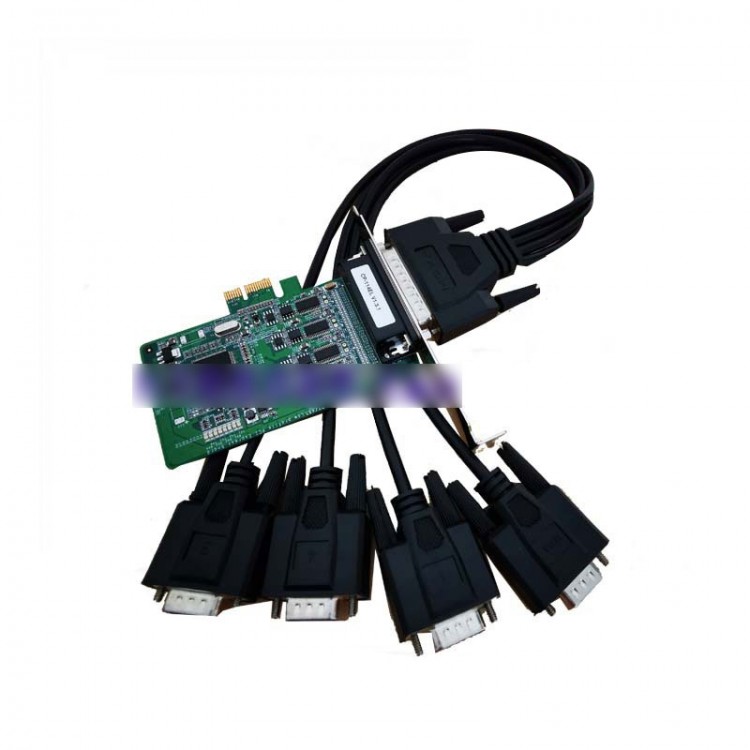

MOXA CP-104EL-A PCIe Serial Card 4-Port RS232 Low-Profile PCI Express x1 Serial Board with Cable
Introduction:
The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems such as for Windows, Linux, and even UNIX. In addition, each of the board's 4 RS-232 serial ports supports a fast 921.6 kbps baud-rate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.
Smaller Form Factor
The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable drivers for Windows and Linux/UNIX are provided for all Moxa boards, and other operating systems, such as for WEPOS, are also supported for embedded integration.
Optional Models:
* CP-104EL-A-DB25M: 4-port RS-232 PCI Express serial card with male DB25 cable
* CP-104EL-A-DB9M: 4-port RS-232 PCI Express serial card with male DB9 cable
Package Included:
* 1 x PCIe Serial Card
Note:
* Please choose the model you want while purchasing. Thank you!
