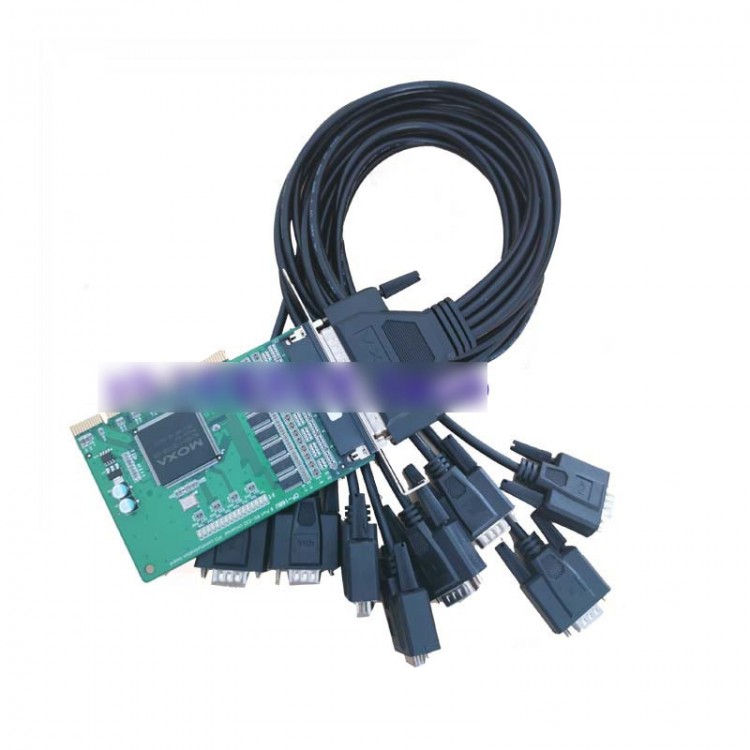

MOXA CP-168U 8-Port RS-232 Universal PCI Serial Card Multi-Port PCI Serial Port Card with Cables

MOXA CP-168U 8-Port RS-232 Universal PCI Serial Card Multi-Port PCI Serial Port Card with Cables

Introduction:
The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems such as for Windows, Linux, and even UNIX. In addition, each of the board's eight RS-232 serial ports supports a fast 921.6 kbps baud-rate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server.

Features:
* Over 700 kbps data throughput for top performance
* 921.6 kbps maximum baud-rate for fast data transmission
* 128-byte FIFO and on-chip H/W, S/W flow control
* Compatible with 3.3V/5V PCI and PCI-X
* For Windows Vista/2003/XP/2000, WinCE 50, Linux and UNIX
* On-board 15KV ESD protection

Specifications:
Hardware:
* Controller: MU860 (16C550C compatible)
* Bus: 32-bit general-purpose PCI
* Connector: Female DB62

Serial:
* Number of serial ports: 8
* Serial port standard: RS-232
* Number of boards: 4/PC

Linear protection:
* ESD protection: 15KV on-board
* Opto-isolation: with Opt8F connector (must be purchased separately) 500V

Performance:
* Rate: 50bps to 921.6Kbps

Serial port communication parameters:
* Data bits: 5, 6, 7, 8
* Stop bits: 1, 1.5, 2
* Check bit: None, Even, Odd, Space, Mark
* Flow control: RTS/CTS, XON/XOFF
* I/O address/IRQ: BIOS assignment

Signal:
* RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Driver support:
* Operating Systems: for Windows (2000, XP/2003/Vista x86/x64, 9X/ME/NT), Windows CE 5.0, Windows XP Embedded, DOS, Linux 2.4/2.6, FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7

Mechanical properties:
* Dimensions: 82x120 mm (3.22x4.72 in)

Working environment:
* Operating temperature: 0 to 55°C (32 to 131°F)
* Operating humidity: 5 to 95%RH
* Storage temperature: -20 to 85°C (-4 to 185°F)

Power requirements:
* Power Requirements: 180mA (+5V)

Safety certification:
* EN55022, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11, FCC Part 15 Class B

Warranty:
* Warranty period: 5 years

Comparison:
* CP-168U: 8-port RS-232 serial card.
* CP-168U-T: 8-port RS-232 serial card and its working temperature is -40 to 85°C.

Package Included:
* 1 x CP-168U PCI Serial Card

Note:
* CP-168U will be delivered by default. If you need a CP-168U-T, please contact us while purchasing. Thank you!
