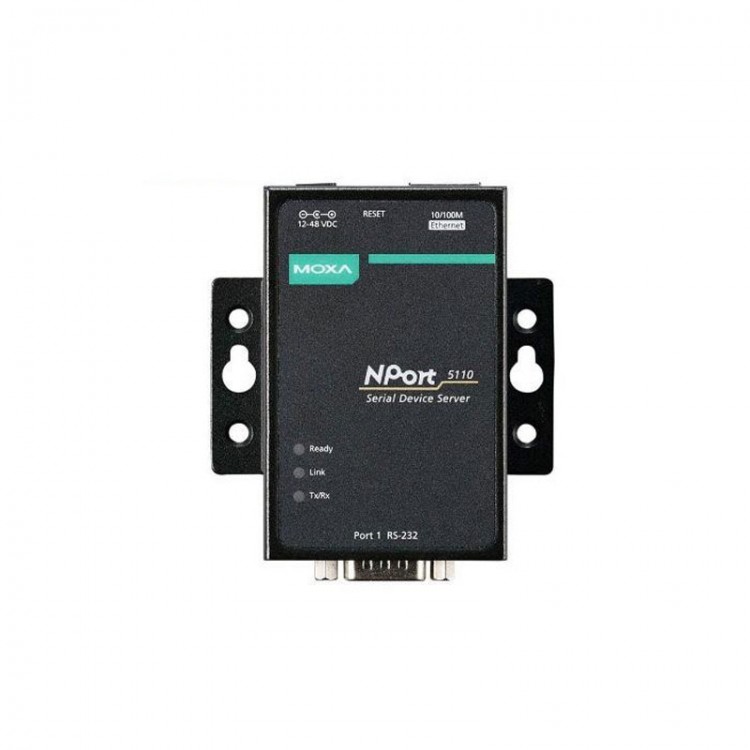

MOXA NPort 5110 NPort5110 1-Port Serial Device Server Serial Server RS232 Serial to Network Port

MOXA NPort 5110 NPort5110 1-Port Serial Device Server Serial Server RS232 Serial to Network Port

Features and Benefits:
- Small size for easy installation
- Real COM and TTY drivers for Windows, Linux, and macOS
- Standard TCP/IP interface and versatile operation modes
- Easy-to-use Windows utility for configuring multiple device servers
- SNMP MIB-II for network management
- Configure by Telnet, web browser, or Windows utility

Introduction:
The device server is designed to make serial devices network-ready in an instant. The small size of the server makes it ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the device server to give your PC software direct access to serial devices from anywhere on the network.

Most Cost-effective Serial-to-Ethernet Solution
Using serial device servers to connect legacy serial devices to Ethernet is now commonplace, and users expect device servers to be cost-effective and to provide a broad selection of useful functions. With its full support of operating systems for Microsoft and Linux and solid 5-year warranty, the NPort5110 (NPort 5110) provides the best choice for serial-to-Ethernet converters.

Standard TCP/IP Interface and Broad Choice of Operation Modes
The device server can be configured for TCP Server, TCP Client, UDP Server/Client, Pair Connection, or Ethernet Modem mode, ensuring compatibility with software based on a standard network API (e.g., Winsock or BSD Sockets).

Real COM/TTY Drivers for Existing Software
The Real COM/TTY drivers provided with the device server allow you to continue using software designed for communicating through COM/TTY ports. Installation and configuration are painless, and allows your serial devices and PC to communicate seamlessly over a TCP/IP network. Using Moxa's Real COM/TTY drivers is an excellent way to preserve your software investment while still allowing you to enjoy the benefits of networking your serial devices.

Easy to Troubleshoot
The device server supports SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert
can be sent instead. Users can define the trigger for the alerts using Moxa's Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a change in password.

Package Included:
- 1 x Serial Server
- 1 x Power Adapter
- 1 x Quick Installation Guide
- 1 x Warranty Card

Packaging Details:
- G.W.: 0.45kg
