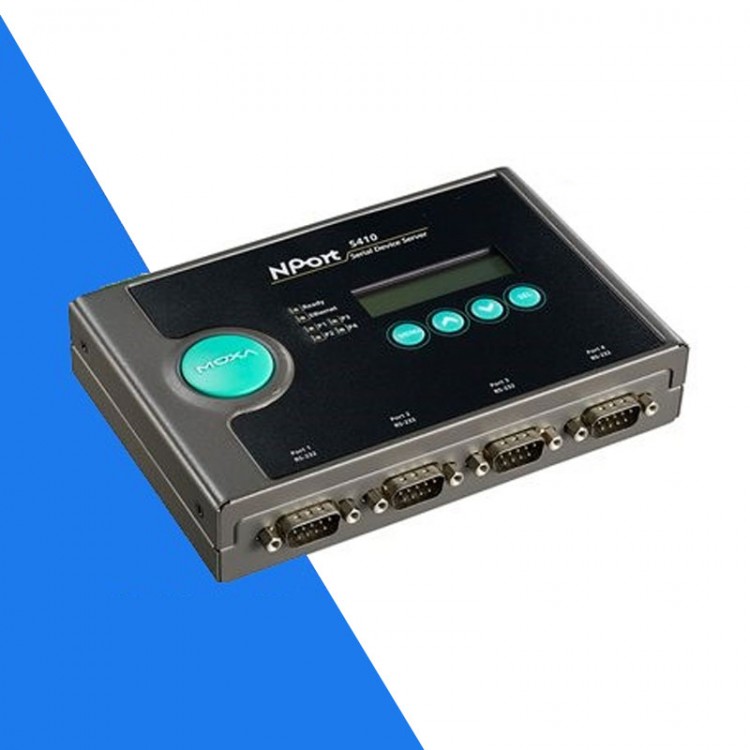

MOXA NPort 5410 4-Port RS232 to Ethernet Serial Device Server Support Dual Power Supply 12-48V Input

MOXA NPort 5410 4-Port RS232 to Ethernet Serial Device Server Support Dual Power Supply 12-48V Input

Description:
- NPort 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

Features:
- User-friendly LCD panel for easy installation
- Adjustable termination and pull high/low resistors
- Socket modes: TCP server, TCP client, UDP
- Configure by Telnet, web browser, or Windows utility
- SNMP MIB-II for network management
- 2kV isolation protection for NPort 5430I/5450I/5450I-T
- Operating temperature range: -40 to 75℃ (-T model)

Specification:
Power Parameter:
- Input Current: 365mA at 12 VDC
- Number of power inputs: 2
- Power connector: 1 removable 3-contact terminal block(s), power input jack
- Input voltage: 12 to 48VDC, 24VDC for DNV

Serial Interface:
- Connector: DB9 male connector
- Port number: 4
- Serial port standard: RS-232
- Operation mode: disable, Ethernet modem, paring connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP
- Baud rate: support calibration baud rate (unit = bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4K, 460.8K, 921.6K
- Data bit: 5, 6, 7, 8
- Stop bit: 1, 1.5, 2
- Calibration bit: no, even, odd, Space, Mark
- Flow control: RTS/CTS (only for RS-232), DTR/DSR (only for RS-232), XON/XOFF

Serial Signal:
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND

Package Included:
- 1 x Serial Server
