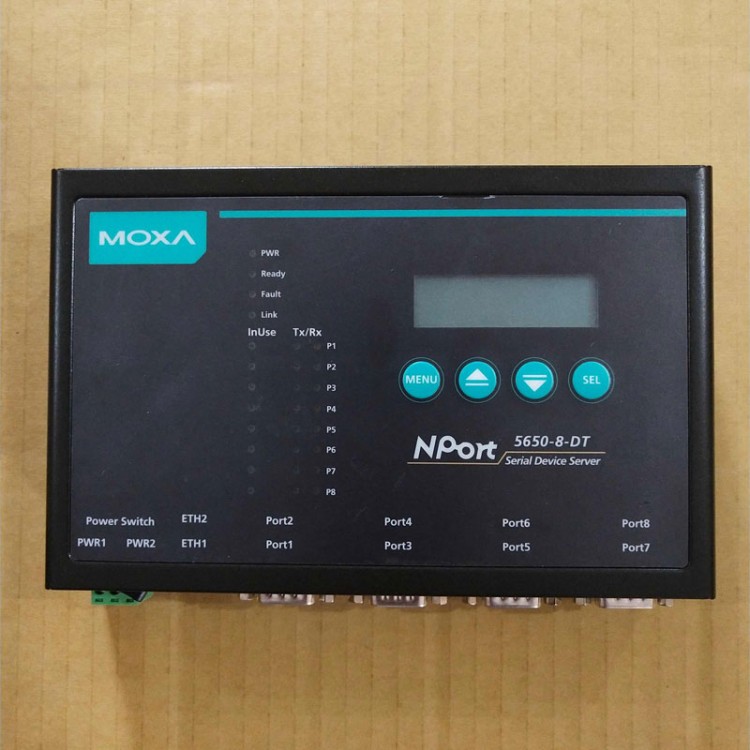

MOXA NPort 5650-8-DT 8-Port Serial Server Support Wall-mount and Guide-rail Installation with DB9 Pin Connector

MOXA NPort 5650-8-DT 8-Port Serial Server Support Wall-mount and Guide-rail Installation with DB9 Pin Connector

Description:
- NPort 5600 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

Specification:
Ethernet Interface:
- 10/100BaseT(X) terminal (RJ45 connector): 2
- Electromagnetic isolation protection: 1.5kV (built-in)

Power Parameter:
- Input voltage: 12 to 48VDC
- Operating temperature range: 0 to 55℃

Serial Interface:
- Connector: DB9 male connector
- Port number: 8
- Serial port standard: RS-232/422/485
- Baud rate: support calibration baud rate (unit = bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4K, 460.8K, 921.6K
- Console terminal: RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)
- Data bit: 5, 6, 7, 8
- Stop bit: 1, 1.5, 2
- Calibration bit: no, even, odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF

Serial Signal:
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND

Product Size:
- Size (with mount bracket): 229 x 46 x 125mm (9.01 x 1.81 x 4.92 inches)
- Size (without mount bracket): 197 x 44 x 125mm (7.76 x 1.73 x 4.92 inches)
- Size (with bottom panel guide rail installation kit): 1997 x 53 x 125mm (7.76 x 2.09 x 4.92 inches)

Package Included:
- 1 x Serial Server
