Description:
Instant Plug & Play
The UPort 1150/1150I USB-to-serial converters allow you to connect 1 RS-232/422/485 device to your laptop or workstation through the USB (Universal Serial Bus) port. These plug & play USB solutions are compatible with both new and legacy RS-232/422/485 devices, and are perfect for mobile, instrumentation, and point-of sale applications.

Simplified, Hassle-free Serial Port Expansion
USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports, saving on setup time and cost.

Features:
- Compatible with USB 2.0
- 12Mbps USB data rate
- Software selectable RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485
- Certified drivers provided for Windows (including Vista), Win CE 5.0, and Linux
- 15 KV ESD protection for all serial ports
- 2 KV optical isolation protection (UPort 1150I)
- Full modem status LEDs for UPort 1150I

Specifications:
USB Interface:
- Compliance: USB 1.0/1.1 compliant, USB 2.0 compatible
- Connector: USB type A (UPort 1150)
-Speed: 12 Mbps (Full-speed USB)

Serial Interface:
-Number of Ports: 1
-Serial Standards: RS-232/422/485
-Connector: DB9 male

Serial Line Protection:
-ESD protection: Built-in 15KV signal protection

Serial Communication Parameters:
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- I/O address/IRQ: BIOS assignment
- Parity: None, Even, Odd, Space and Mark
- Flow Control: RTS/CTS and XON/XOFF
- Baud-rate: 50 bps to 921.6 kbps
- FIFO: 64 bytes

Serial Signals:
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
- RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
- RS-485-2w: Data+(B), Data-(A), GND

Driver Support:
- Operating Systems: for Windows (98, ME, 2000, XP x86/x64, 2003 x86/x64, Vista x86/x64), WinCE 5.0, Linux 2.6 x86/x64

Physical Characteristics:
- Housing: UPort 1150: ABS + PC
- Product Weight: UPort 1150: 85G/0.19LB
- Size: UPort 1150: 37.5 x 60 x 20.5 mm (1.48 x 2.36 x 0.87 in)

Working Environment:
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature: -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity: 5 to 95% RH (non-condensing)

Standards and Certifications:
- EN55022 Class B, EN55024, EN61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3,  IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11, FCC Part 15 Class B

Power Requirements:
- Power Consumption: UPort 1150: 77 mA at 5 VDC

Warranty:
- Warranty Period: 5 years

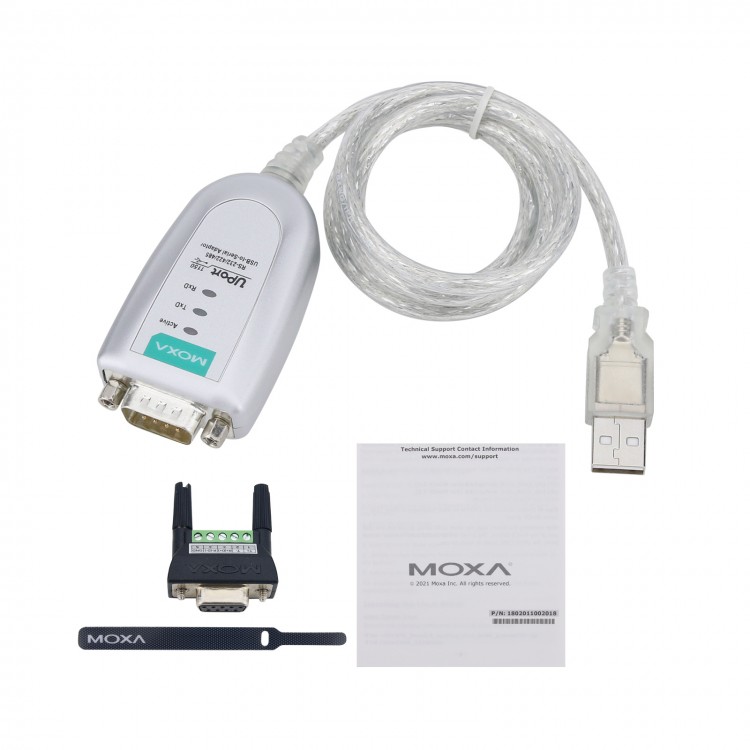

Package Included:
- 1 x USB to Serial Converter
- 1 x Terminal Block Adapter
