| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $1,003.96 | $983.47 | $952.74 | $911.76 | Contact US |

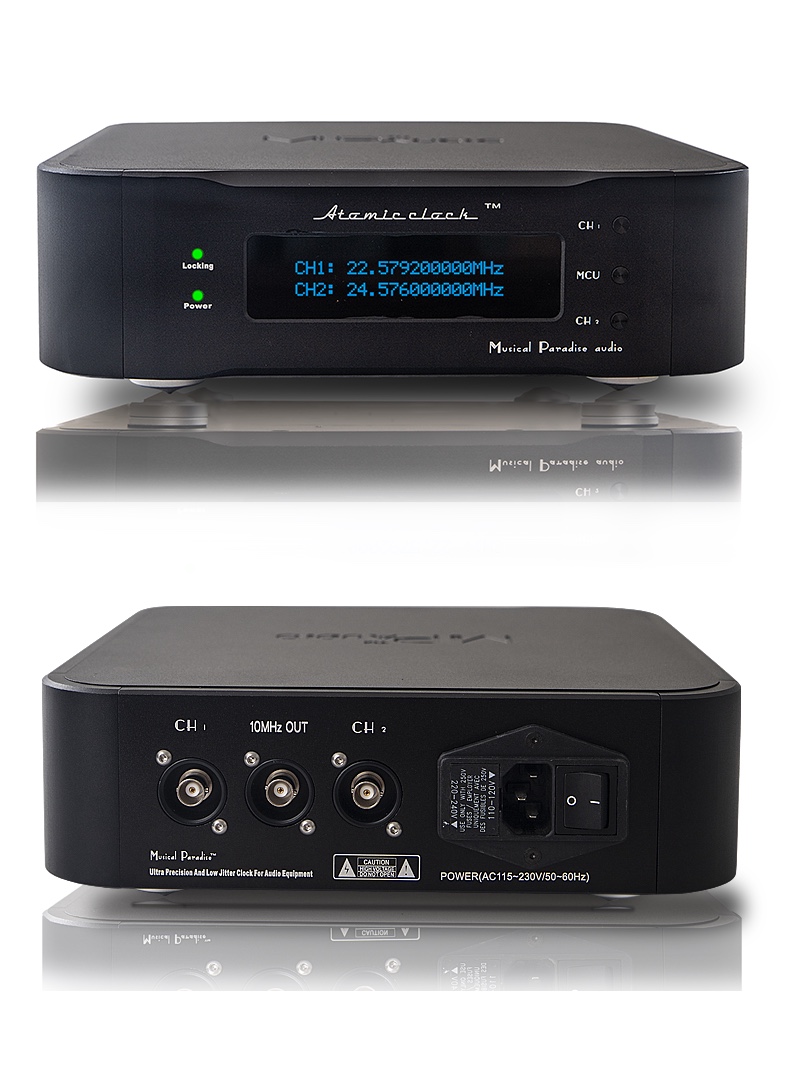

MP Audio MV83 Audio Clock Atomic Clock OCXO Version (22.5792MHZ/24.576MHZ) with OLED Screen
Features:
- OCXO version audio clock
- With power-off memory function and OLED dot matrix display
- Two groups of adjustable outputs: 44.1K, 88.2K, 176.4K, 352.8K, 48K, 96K, 192K, 384K or 8.4672M, 11.2896M, 12.288M, 16.9344M, 22.5792M/24.576M, 27M, 33.8688M
- One group of 10MHz fixed output
- Output level: 3.3Vpp

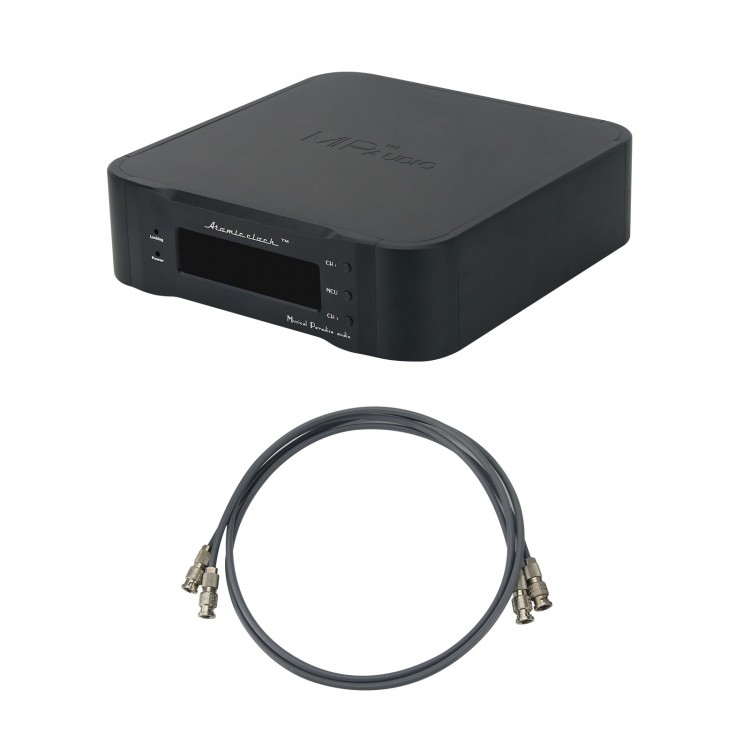

Package Included:
- 1 x Audio Clock
How to Use:
1. Press MCU button once and the CH1 of the display will flash. And then press the up/down button to set the corresponding frequency.
2. Press MCU twice and the CH2 of the display will flash. And then press the up/down button to set the corresponding frequency.
3. Press MCU three times and the display will stop flashing and lock the frequency of CH1/CH2.
Attention:
10M is a fixed output, so there is no need to set it. CH1-CH2 output corresponds to the output BNC terminals CH1-CH2 on the back of the clock.
