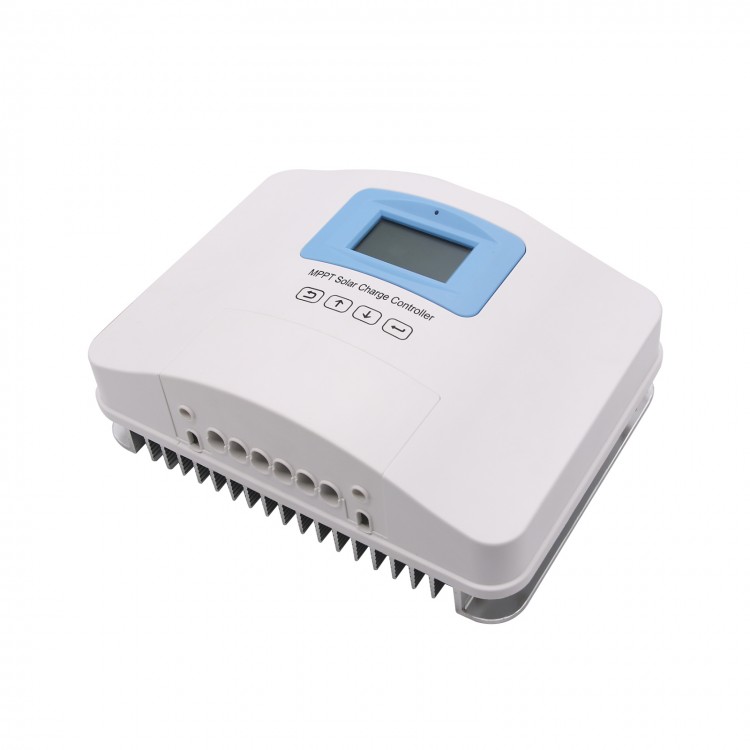

MPPT Solar Charge Controller 50A 650W/12V 1300W/24V 2650W/48V MC4850 Infrared Communications

MPPT Solar Charge Controller 50A 650W/12V 1300W/24V 2650W/48V MC4850 Infrared Communications

Features:
Professional Design to Promote System Reliability
◆Semiconductor devices use international famous brands
◆Super high charging efficiency, significantly reduce the product temperature.
◆Natural cooling, IP32 protective grade

MPPT Maximum Power Tracking
◆MPPT maximum power tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic system, which is 15%~30% higher than traditional PWM charging efficiency
◆Accurate identification and tracking of the maximum power point of multiple peaks

High Conversion Efficiency
◆MPPT tracking efficiency up to 99.9%
◆Charging efficiency up to 98%.

Intelligent Battery Management (Batteries are not included)
◆Supports different types of batteries such as gel batteries, sealed batteries, open batteries, lithium batteries, etc. (Batteries are not included)
◆Support battery voltage automatic identification (Batteries are not included)

Static Power Consumption
◆Static power consumption<0.9W

Standard Modbus Protocol
◆Support standard Modbus protocol to meet communications needs in different occasions

Large Capacitive Load Start
◆Maximum capacity 12000uf

Perfect Protection Function
◆Solar panel reverse protection
◆Battery reverse connection protection (Batteries are not included)
◆TVS lightning protection
◆Prevent battery from discharging to solar panels at night (Batteries are not included)
◆Battery under-voltage protection (Batteries are not included)
◆Module over-temperature protection
◆Load short-circuit protection

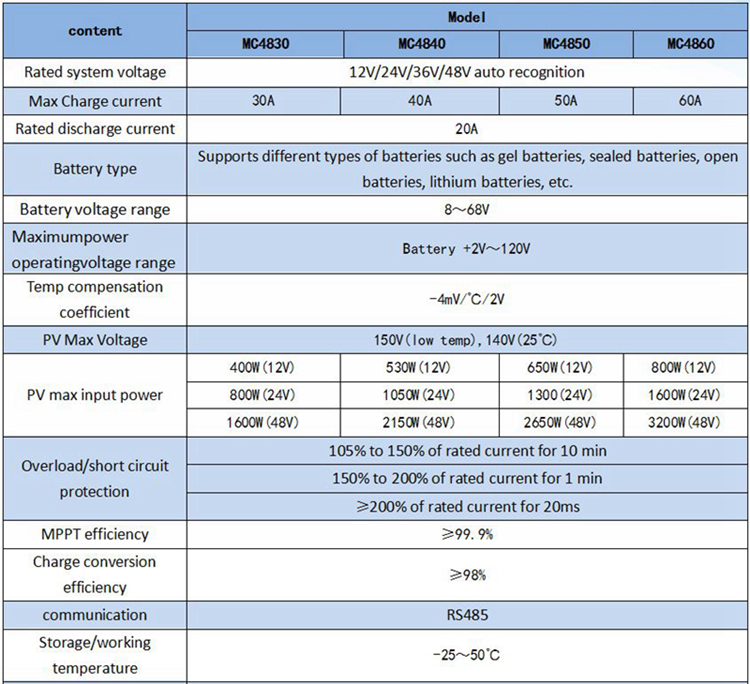

Specifications:



Package Included:
- 1 x MPPT Solar Charge Controller
- 1 x Remote Temperature Sensor 3M

Note: Items with different colors will be delivered at random. Thanks for your understanding.
