MPPT4515 Solar Charge Controller Regulator 60A 12V 24V 48V with LCD PV VOC 150V DC
Overview
This MPPT is essentially a smart DC to DC converter which has been optimized to harvest maximum energy from the PV array in battery based solar electric systems by using a variety of maximum power point tracking (MPPT) strategies. The controller’s secondary objective is to ensure that the batteries receive a full charge without becoming
overcharged. This is accomplished through a four stage charging process.
Features of MPPT Charge Controller
- MPPT function to harvest the maximum power from solar panel
- User programmable bulk and float voltages
- Large terminals for easy wire connections
- Night-light function
- Temperature compensation
- 4-stage charge cycle (bulk, absorption, float and equalize)
30A and 50A MPPT solar charge controller
Electronic protection functions:
- Overcharge and deep discharge protections
- Reverse polarity protection for solar panel, battery and load
- Automatic electronic fuse
- Overvoltage protection at solar panel input
- Short circuit protection of solar panel and load
- Open circuit protection without battery
- Reverse current protection at night
- Overload protection
- Battery over-voltage shutdown

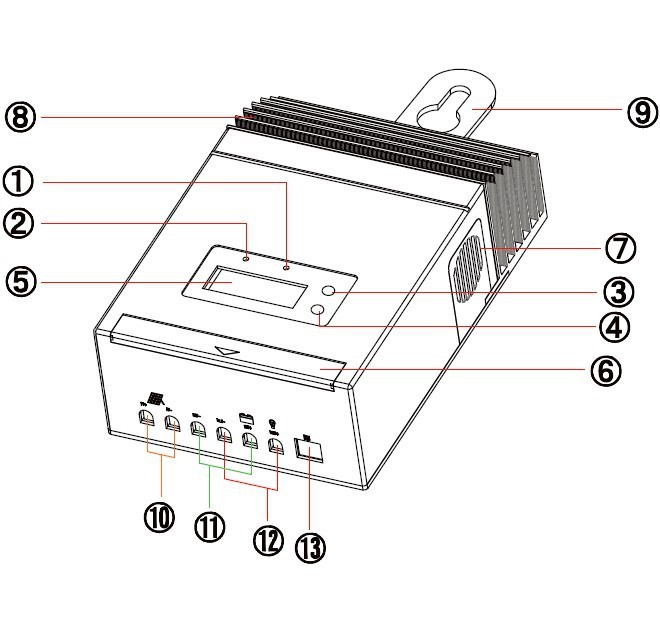

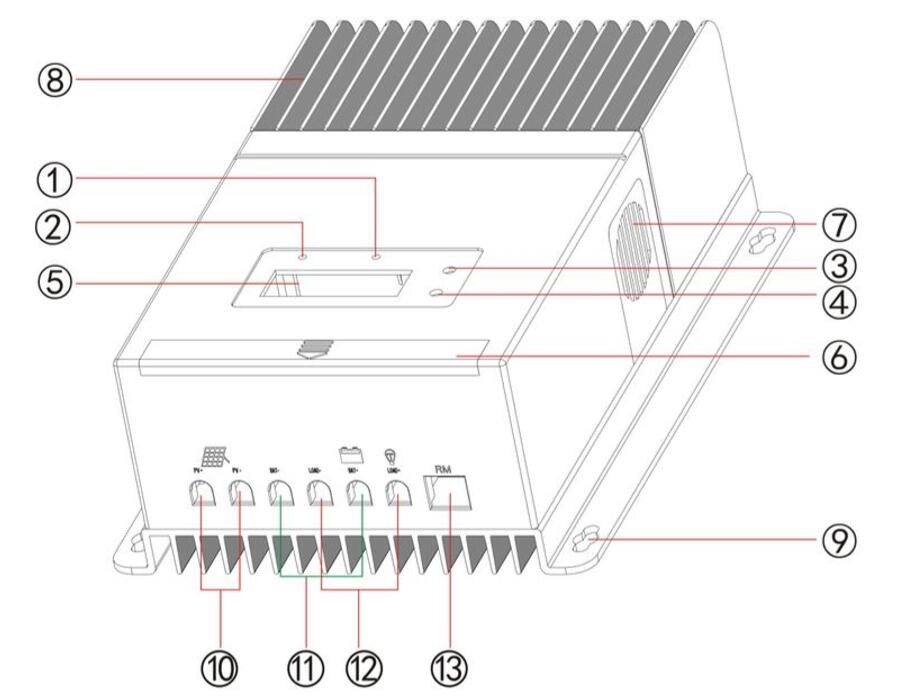

This is for 45A &60A solar charge controller
- Battery Status LED Indicator An LED indicator that shows battery status or system errors.
- Charging Status LED Insdicator An LED indicator that shows charging status and overvoltage of pv.
- Setting Button1 Set load work mode,battery type and max charge current.
- Setting Button2 Set load work mode,battery type and max charge current(in manual mode used for load ON/OFF).
- LCD Digital Display Dispaly the system status
- Wiring Box Cover Sheet metal wiring box cover protects power connections
- FAN FAN to dissipate Internal circuit heat
- Heatsink Aluminum heatsink to dissipate controller heat
- Mounting Hanger Keyhole slot for mounting
- Solar Module Terminals Connect solar modules
- Battery Terminals Connect batteries
- Load Terminals Connect loads
- RJ45 Communication Interface(This feature is still in development,.Cannot use yet)
Package Contents:
- 1 x Solar Charge Controller
