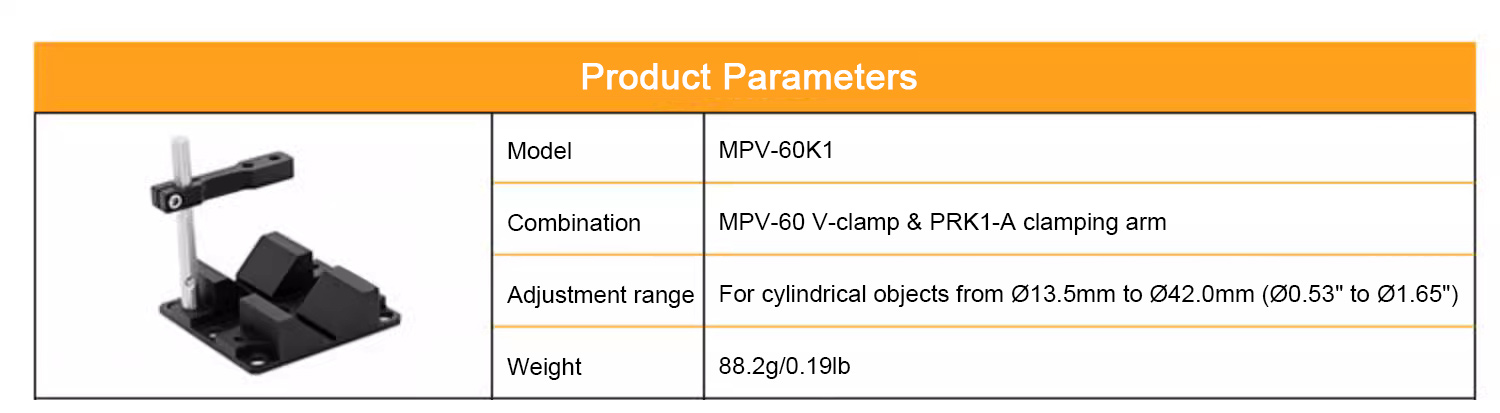

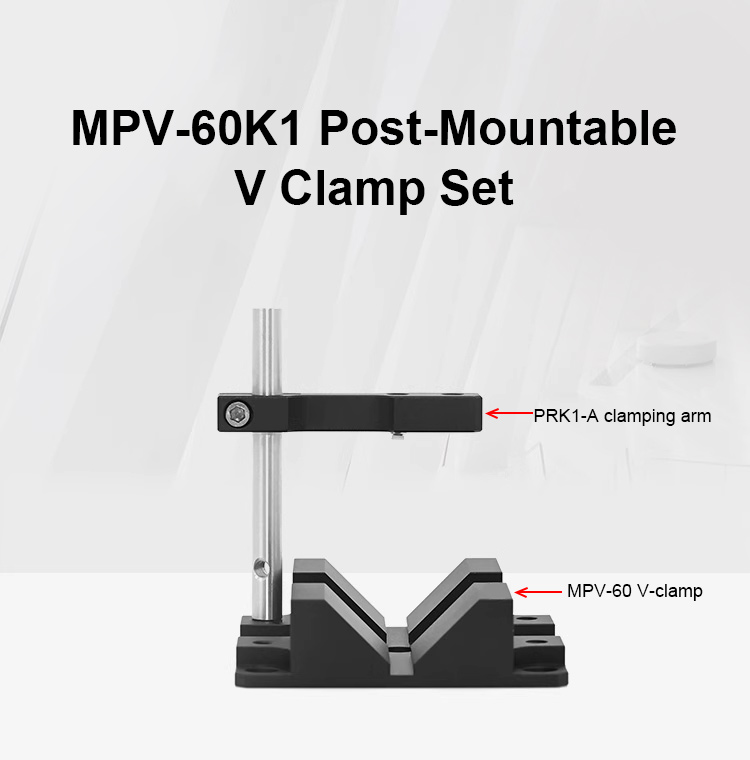

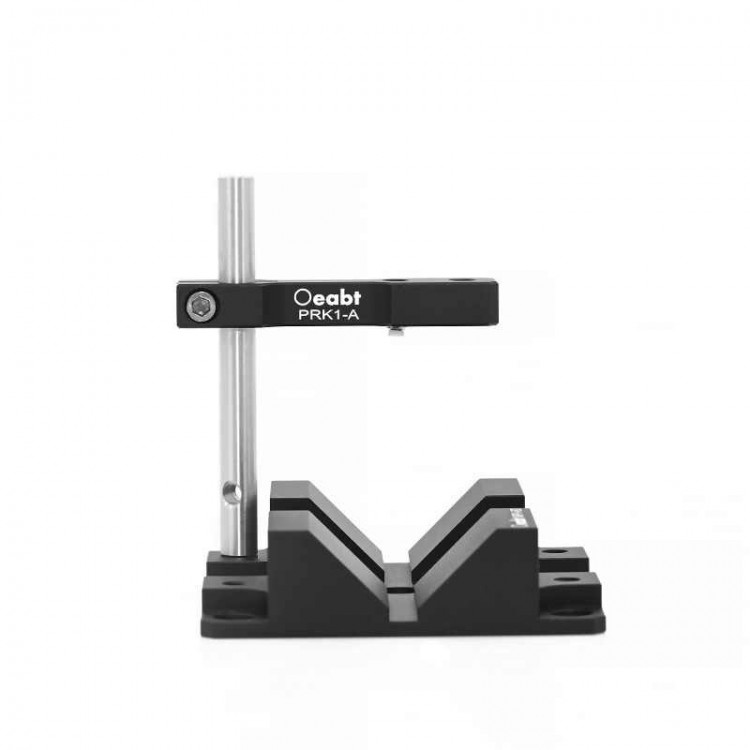

MPV-60K1 (MPV-60 + PRK1-A) Post-Mountable V Clamp Set for Cylindrical Objects from Ø0.53" to Ø1.65"
Description:
MPV-60K1 V Clamp Set is designed to clamp cylindrical objects ranging from Ø13.5mm to Ø42.0mm (Ø0.53" to Ø1.65"). PRK1-A clamping arm uses a nylon-tipped setscrew with a 5/64" (2.0 mm) hex to secure optics to your kinematic platform mounts and V-clamps.
The clamping arm is held to the post using a flexure mechanism that locks with a 2.5mm hex key. When PRK1-A is used alone, it can hold optics up to 53mm/2.09" tall.

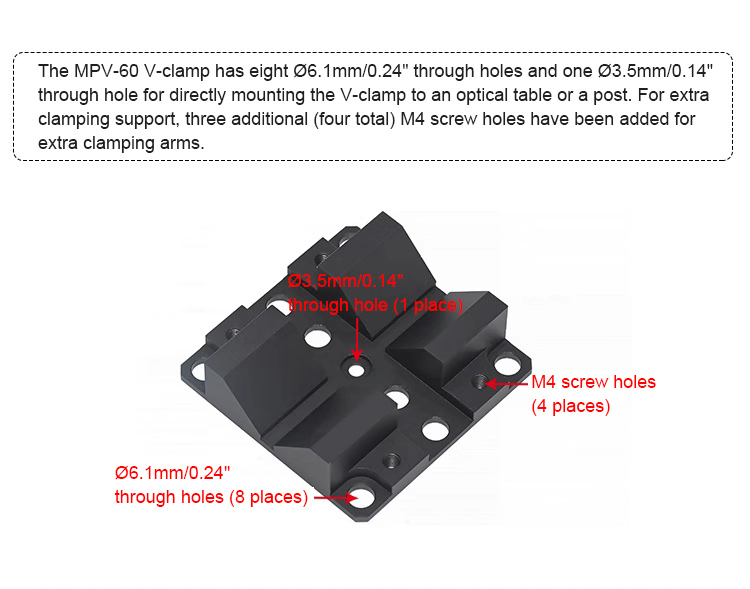

The MPV-60 V-clamp has eight Ø6.1mm/0.24" through holes and one Ø3.5mm/0.14" through hole for directly mounting the V-clamp to an optical table or a post. For extra clamping support, three additional (four total) M4 screw holes have been added for extra clamping arms.
Features:
- Clamps cylindrical objects ranging from Ø13.5mm to Ø42.0mm (Ø0.53" to Ø1.65")
- Clamping arm for stable, 3-point contact with the V-clamp
- With one PRK1-A clamping arm
- The V-clamp with many screw holes and counterbores for mounting
- Fits Ø12mm (0.47") posts and kinematic platform mounts
Package Included:
- 1 x Set of MPV-60K1 V Clamp
Packaging Details:
- Weight: 0.3kg
Note:

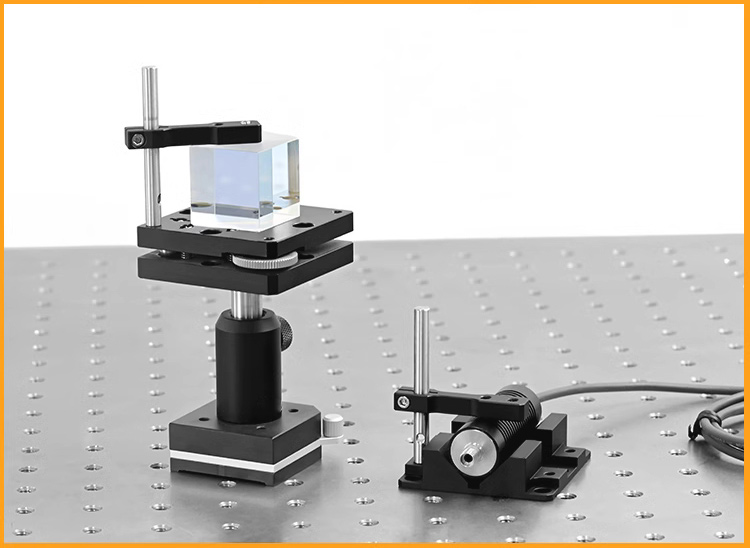

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
