| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $9.70 | $9.50 | $9.21 | $8.81 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

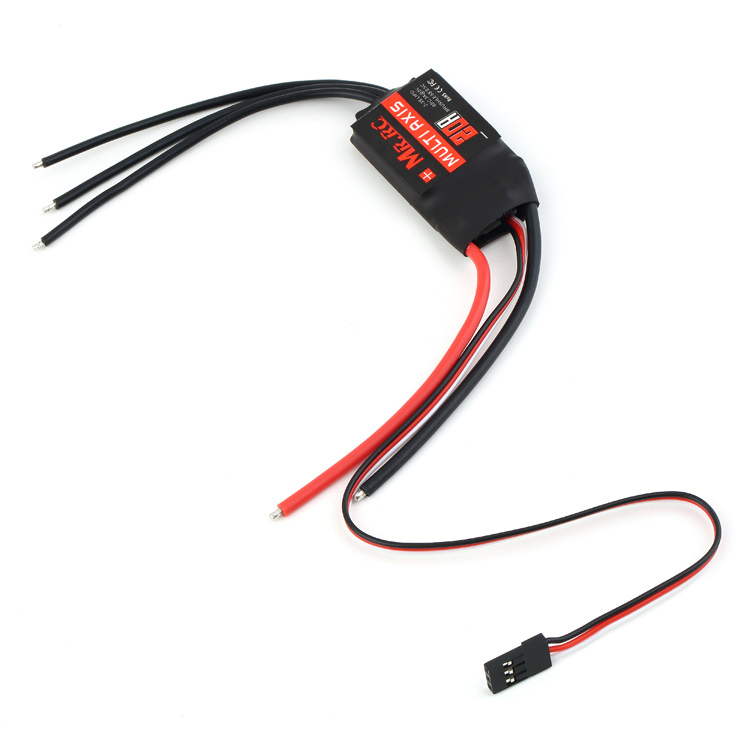

MR.RC 20A Brushless ESC for Quadcopter 4 Axis Fixed Wing Airplane Surpass Hobbywing
Specification:
- Output: continuous current 20A, instant current: 25A(no less than 10 secs)
- Power inut: 2-3 lipo battery or 5-9 NiCd/NiMH Battery
- BEC output: 5V/2A (Linear mode)
- Max rotate speed: 2 polarity motor 210000r/min, 6 polarity motor 70000r/mins, 12pole motor 35000r/min
- Dimension: 42*25*8mm(L*W*H)
- Weight: 19g
- ESC length: 376mm
Function:
- Safety power on function: when powered on, no matter where the throttle is, the motor will never be instantly started, which will avoid damage to human body
- Throttle range adjusting function: adapt to different RC htrottle range, improving throttle response linear degree
Programme setting project:
- Braking setting: no brake/brake
- Battery type: lipo battery/Ni-MH
- Low voltage protection mode: soft close/ hard
- Low voltage protection vaulve: low medium high
- Starting mode: ordinary soft super soft start
- Default coming out of factory setting
Protection function:
- Lack voltage protection
- Over voltaeg protection
- Overheat protection
- RC signal lost protection
Package includes:
- 1 x 20A ESC
- 1 x English user manual
