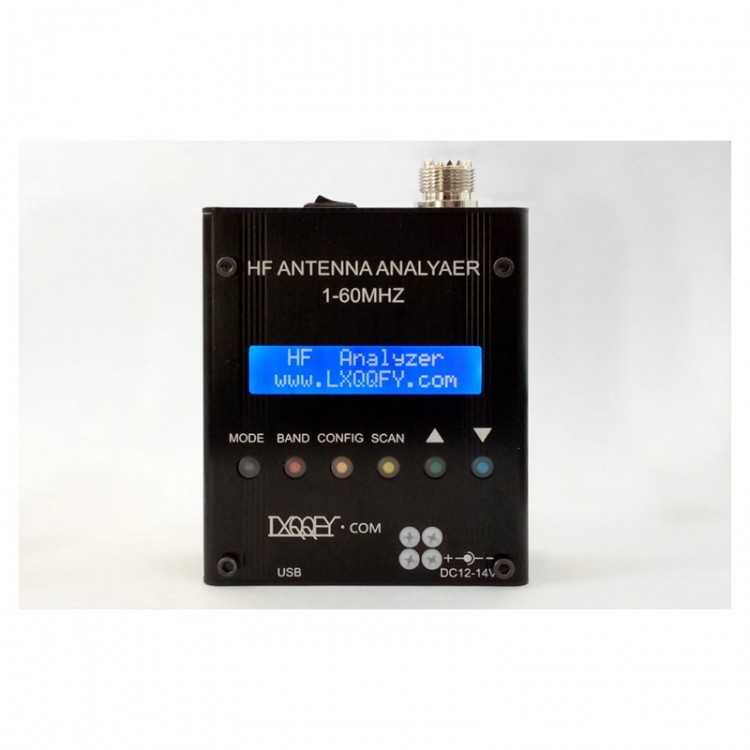

MR300 Shortwave Antenna Analyzer Meter Tester 1-60M For Ham Radio Support Bluetooth With Battery

MR300 Shortwave Antenna Analyzer Meter Tester 1-60M For Ham Radio Support Bluetooth With Battery

Description:
This is a great shortwave analyzer for ham hobbyists. With 5 buttons, "Mode", "Band", "Config", "Scan", "Up", "Down",  you can selects operation mode, band and extended functions. It is powered by DC external power connector with 2.1mm power jack, and can test the standing wave, impedance, and capacitance and so on.

Features:
- Powered by DC external power with 2.1mm power connector (positive inner conductor), just connect the power and then work.
- 5 operation buttons are easy and convenient to operate. You can select operation mode, band and extended functions.
- It can test the standing wave, impedance, and capacitance and so on, can be connected to the computer to do antenna and other graphic analysis.
- Beautiful and simple designed black case would protect the antenna analyzer from external damage.
- This is a great shortwave antenna analyzer for ham hobbyist or professionals.

Specifications:
- Test Frequency: 1 ~ 60 Mhz
- Push Buttons (5): "Mode", "Band", "Config", "Scan", "Up", "Down"
- Connectors: Type-M
- USB: Mini-B USB
- Battery: 3.7V lithium battery
- External Power: 2.1mm DC power connector, positive inner conductor (not included)
- Voltage: 12V - Can drive the Analyzer to work, but cannot charge the battery.
                  13.8V ~ 18V - Can drive the Analyzer to work, also able to charge the battery.
- Size: 90mm x 82mm x 30mm
- Material: Aluminum Outer Shell

Package Included:
- 1 x Analyzer (battery included)
