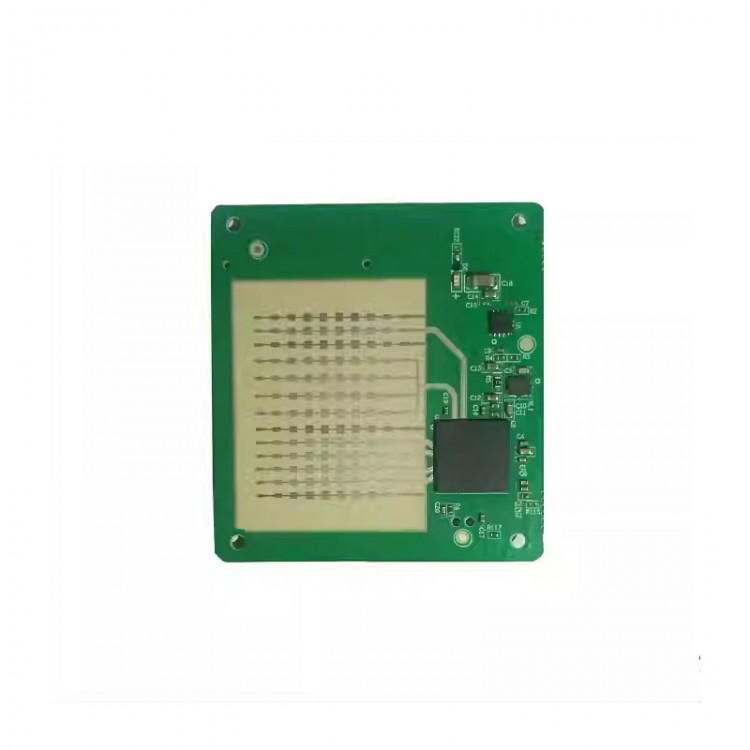

MR72 40-Meter 77GHz UAV Obstacle Avoidance Radar Module Millimeter Wave Radar without CAN Box (UART Interface)

MR72 40-Meter 77GHz UAV Obstacle Avoidance Radar Module Millimeter Wave Radar without CAN Box (UART Interface)

Description:
- MR72 is a compact 77GHz distance measurement radar. It can accurately guide UAV to avoid obstacles accurately in flight by transmitting two-beam fan-shaped microwaves to the front, detecting the reflection of microwaves, judging whether there are obstacles in front, and feedback the relative distance between obstacles and radar. This product adopts double beam design, 0.2~40m measurement distance, small size, high sensitivity, stable performance, light weight, easy to integrate, product performance has been recognized by many partners. The products are applied to plant protection, power inspection, industrial exploration, etc.

Features:
- Work in 24GHz Band for the detection of moving targets
- Adaptable for grasslands and other environment
- With UART interface
- With measurement accuracy of 0.1m
- With the measurement range of 40m
- RoHS compliant

Specification:
- Brand: Nanoradar
- Model: MR72
- Type: 77GHz radar sensor
- Working principle: magnetic sensor
- Working voltage: 5 - 32VDC
- Working current: 1A
- Communication interface: UART
- Transmitting frequency: 76.00 - 77.00GHz
- Transmitting power: 39.8dBm
- Modulation method: FMCW
- Refresh rate: 30Hz
- Power consumption: 2.5W
- Distance measurement range: 0.2 - 40m at ±56°
- Distance precision: ±0.1m
- Speed range: ±30m/s
- Speed precision: ±0.03m/s
- Beam width (azimuth plane): 112°
- Beam width (elevation plane): 14°
- Interface protocol: UART
- Working temperature: -40℃ ~ 85℃
- Storage temperature: -40℃ ~ 90℃
- Product size: 102 x 56 x 16.5mm
- Net weight: 90g

Package Included:
- 1 x MR72 Radar
- 1 x DC12V Power Adapter
- 1 x Radar Cable
