Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $136.81 | $134.02 | $129.83 | $124.24 | Contact US |
MR9270CP 0-24MA Signal Generator Current Voltage Frequency Thermal Resistant Thermocouple Handheld Calibrator
Introduction:
- MR9270CP adopts high-speed CPU for ARM, with strong performance, stable operation and friendly interface
- Nylon tool bag. Screen with backlight. Made of high quality tempered glass with high transparency and easy cleaning

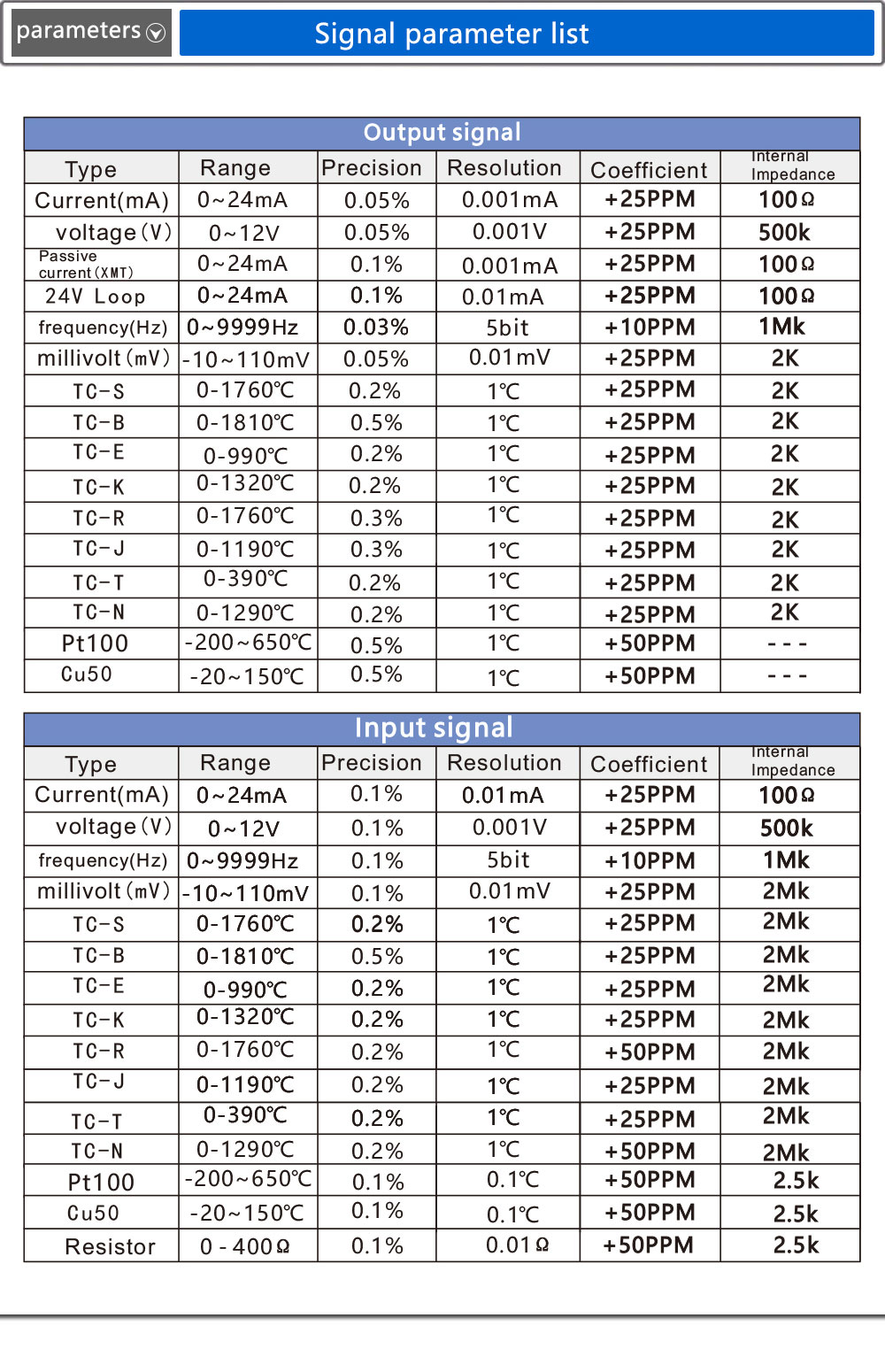

- MR9270CP has 8 signal measurement and signal sources (current, voltage, MV, frequency, resistance, thermocouple, thermal resistance, PT100)
- MR9270CP includes: signal conversion, real-time curve, programming output, etc.
Specifications:

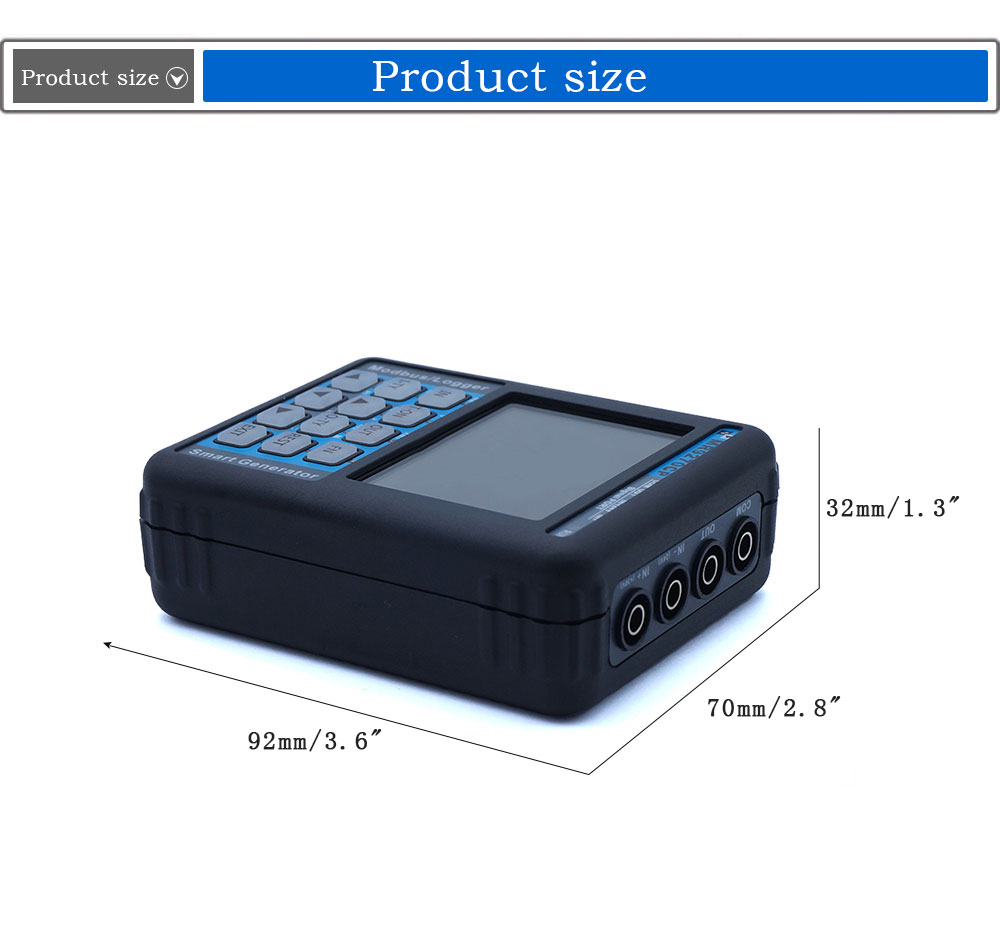

- Dimensions: 92 x 70 x 32mm/3.6 x 2.8 x 1.3"
- Power supply: Built-in 2500mA lithium battery or powered via 5V/1A USB port
- Working temperature: 0-50℃
- Duration time: work continuously for more than 8 hours with 20mA output
- Color display: 320*240 TFT screen
- Output: 3.7V
- USB input: 1000mA

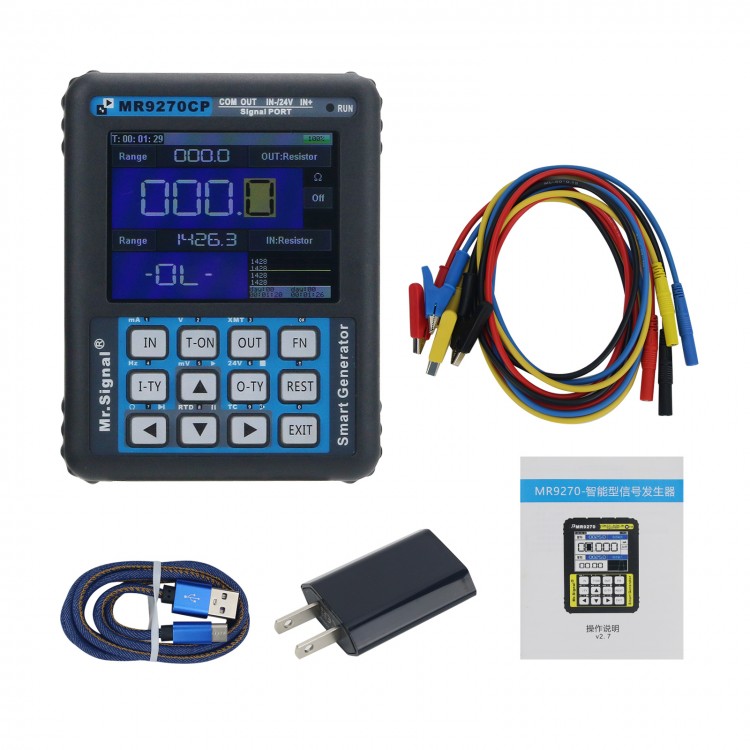

Package Included:
- 1 x Signal Generator
- 1 x Charger Plug
- 1 x USB Data Cable

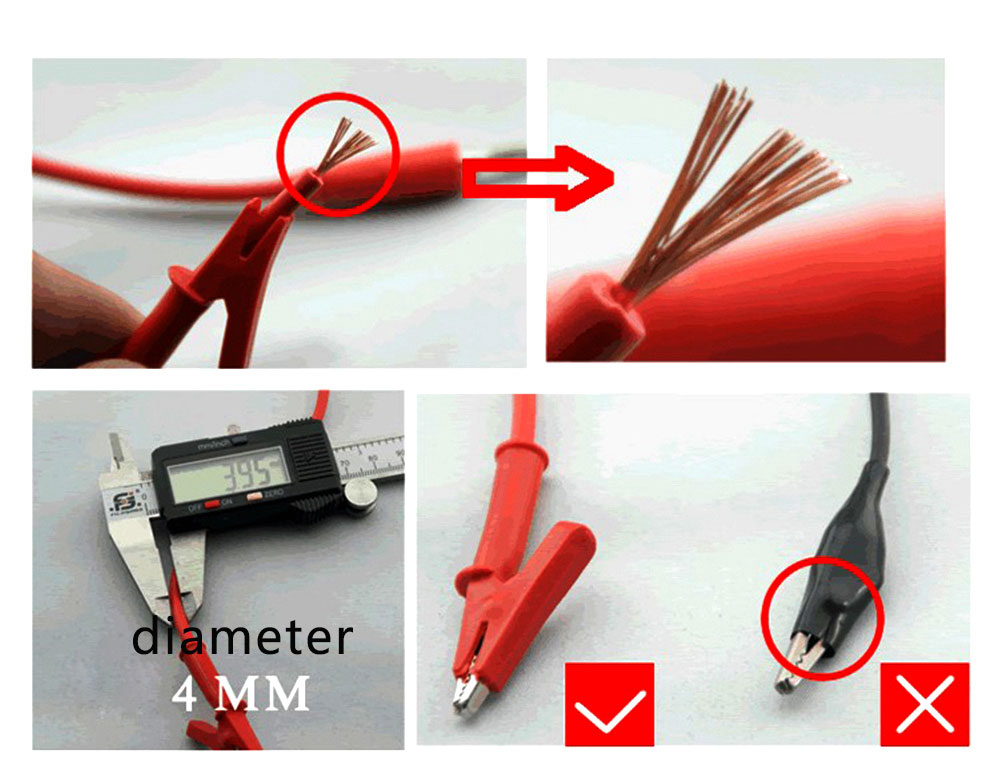

- 4 x Test Clips (alligator clips)
- 1 x Tool Bag
- 1 x User Manual
- 1 x Product Quality Certification
Note:
- It can also be powered 3pcs AA batteries. AA alkaline physical batteries and AA NiMH batteries cannot be used together. These two batteries cannot be charged through the meter.
