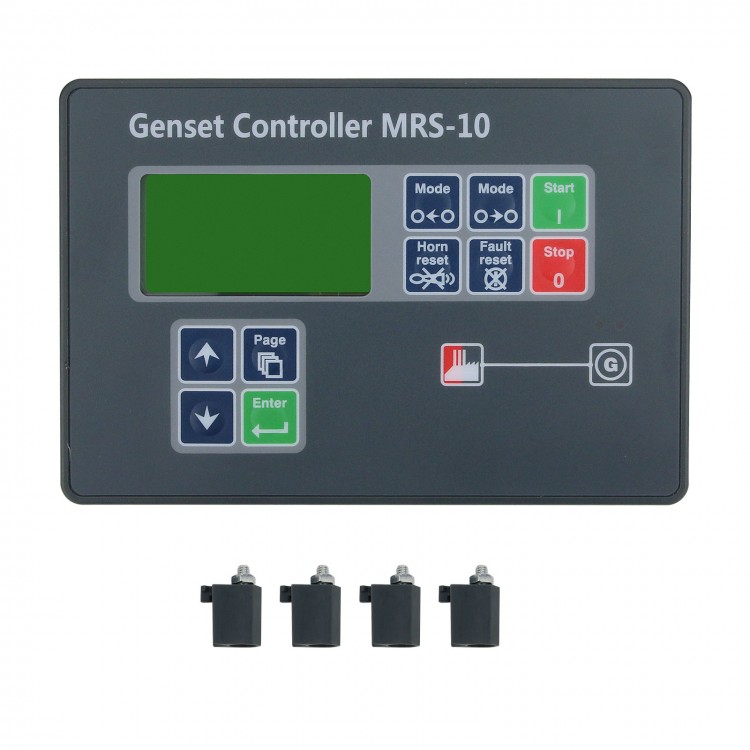

MRS-10 Genset Controller Diesel Generator Control Panel Auto Remote Start LCD Screen

MRS-10 Genset Controller Diesel Generator Control Panel Auto Remote Start LCD Screen

Features:
-It is a comprehensive controller for single generating sets.
-Equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in Gen-set controls.
-Automatically starts the Gen-set, closes the Gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.
-Provides gas engine support without ventilation.
-Easy operation and installation. Predefined configurations for typical applications are available as well as user-defined configurations for special applications.

Remote Control:
The controller can be remotely controlled. In case of the work on the gen-set check, that nobody can remotely start the engine.
To be sure:
Disconnect remote control via RS232 cable
Disconnect input REM START/STOP
or Disconnect output STARTER and outputs GCB CLOSE/OPEN

RS232 is optional plug-in card to enable the controller for RS232 communication. This is required for computer or Modbus connectin. Card inserts into expansion slot back on the controller.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be installed permanently. Should you need to remove it, the safest way is to remove whole back cover and than remove module manually.
(you need to buy RS232 communication module separately)

Package List:
1 x Genset Controller
