| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $12.45 | $12.19 | $11.81 | $11.30 | Contact US |

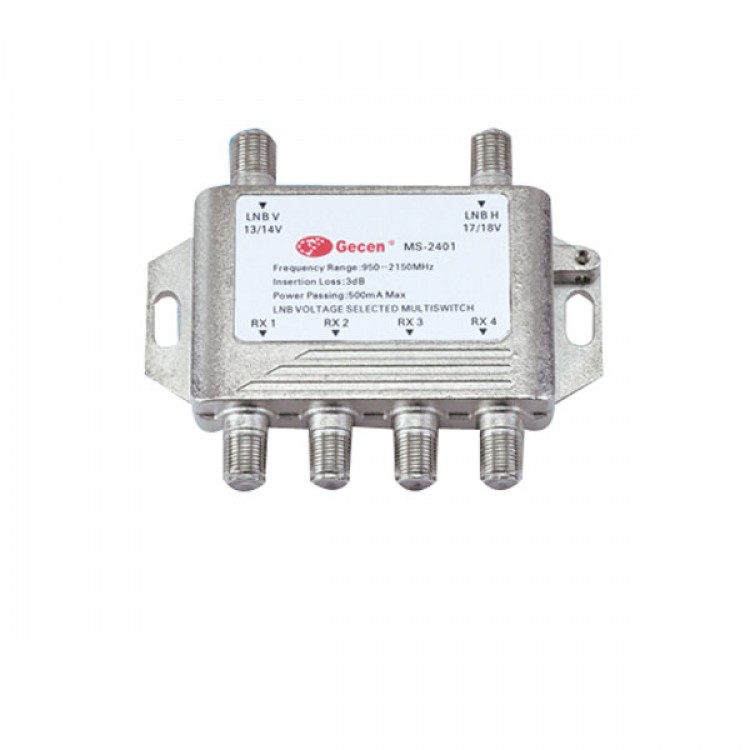

MS-2401 2 In 4 Out Multiswitch 13/18V LNB Voltage Selected Switch(Anti Interference)
Features:
- Zinc alloy pressure casting shell, Nickel plating processed surface
- Good components, professional circuit design, small consumption
- Receiver outputs 13/18V voltage, passing through coaxial-cable and swithed to corresponding terminal by multiswitch
- Can be connnected to two satellite TV signals at the same time, and switched a channel by 13/18V
- Can be used by four users without interference
- Suitable for multi head multi machine
Parameters:
- Frequency range: 950-2150(MHz)
- Insertion consumption: 5(dB)
- Isolation: 25(dB)
- Reflection consumption: 10(dB)
- Working voltage: 12-20(V)
- Working consumption current: 30(mA)
- Max passing current: 500(mA)
- Terminal resistance: 75(Ω)
- Max passing current: 13/18V
