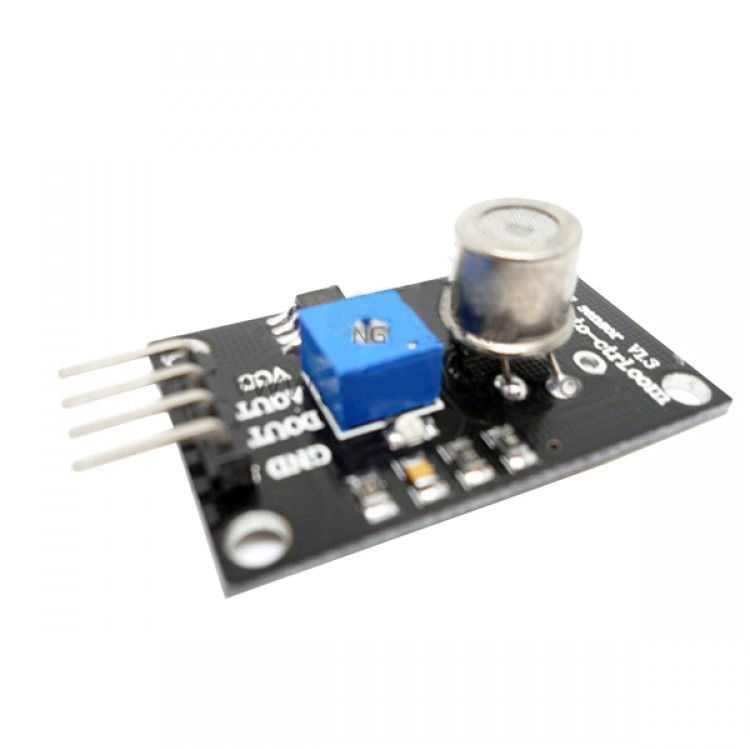

MS1100-P111 VOCs Formaldehyde Gas Detection Sensor Methylbenzene Xylene Sensor
Technical parameters
- the heating voltage: 5V + 2% (AC . DC)
- Working current: 100mA (max)
- the circuit voltage: <DC12V
- the load resistance: 1K (adjustable)
- the detection concentration range :0-1000ppm (different gases different scope)
- clean air voltage: < 1V
- Sensitivity: > 3%
- response time: < 5S (preheat 3-5 minutes)
- response time:> 10S
- the component power consumption: ≤ 430mW
- Working temperature: -10 ~ 60 oC (nominal temperature 20 oC)
- Humidity: 90% RH (nominal humidity 65% RH)
- life: 5 years
- size: 35mm × 21mm × 15mm
Package list:
- 1 x MS1100-P111 VOCs Formaldehyde Gas Detection Sensor
