Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $45.94 | $45.00 | $43.60 | $41.72 | Contact US |

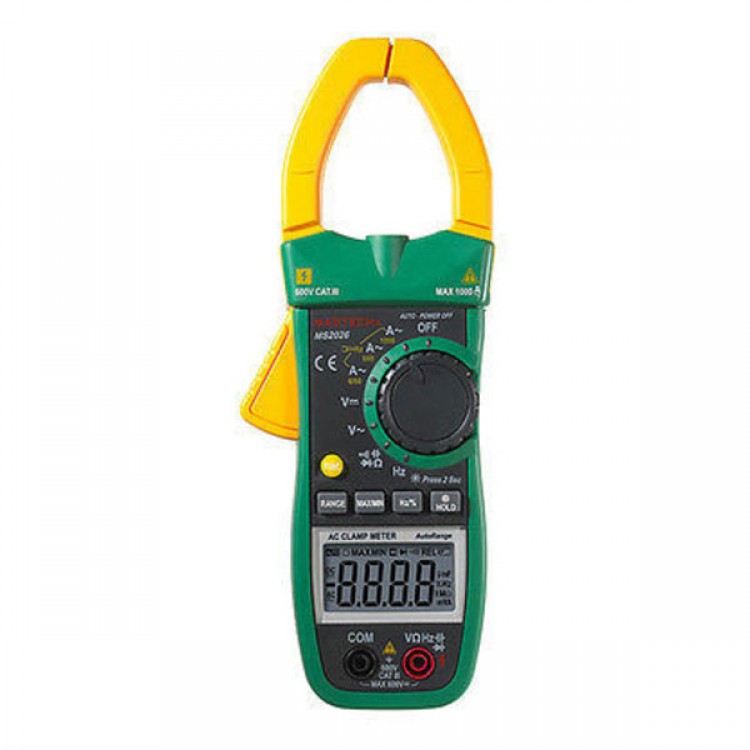

MS2026 Portable LCD AC Mini Accurate Electronic Digital Clamp Meter Tool
Description:
- 100% Brand New and high quality
- Small and compact design
- Data hold function
- Overload protection on all ranges
- Battery low indication
|
MS2026 |
|
DC Voltage |
600mV/6V/60V |
±(0.7% +3) |
600V |
±(0.8% +2) |
|
AC Voltage |
6V/60V |
±(0.8% +3) |
600V |
±(1% +4) |
|
AC Current |
6A/60A/600A/1000A |
±(2.0% +6) |
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ |
±(0.8% +3) |
60MΩ |
±(1.2% +3) |
|
Capacitance |
40nF/400nF/4µF/40µF/400µF/4000µF |
±(4.0% +5) |
Frequency (From Clamp) |
0~ 1KHz |
±(1.5% +5) |
Frequency (From Plug) |
0~10MHz |
±(0.5% +3) |
Duty Cycle |
10%~ 90% |
±3.0% |
Display |
counts |
6000 |
Jaw Opening |
|
Φ40mm/1.6” |
Auto Ranging |
|
√ |
Manual Ranging |
|
√ |
Auto Power Off |
|
√ |
Diode |
2.7V |
√ |
Continuity Buzzer |
<50Ω |
√ |
MAX/MIN |
|
√ |
Data Hold |
|
√ |
Low Battery Display |
|
√ |
Display Backlight |
|
√ |
Flash Light |
|
√ |
True RMS |
True root mean square measurement |
|
Power Supply |
3×1.5V A AA Batteries |
√ |
Product Size |
225mm×86mm×33mm/ 8.9”×3.4”×1.3” |
√ |
Product Weight |
320g/0.7lb |
√ |
Category |
CAT.III 600V |
CE |
Package includes:
- 1x Digital Clamp Meter
- 1x User manual
- 1x Bag
- 1x Test Leads
- 3x Battery
