Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $68.87 | $67.47 | $65.36 | $62.55 | Contact US |

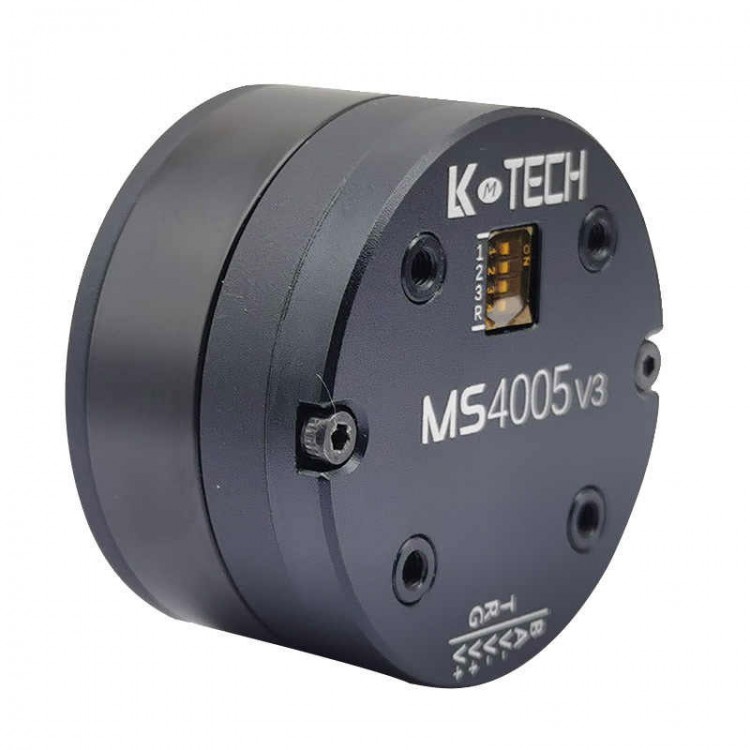

MS4005 V3 Servo Motor BLDC Motor (RS485 15bit & Through Slip Ring) for Mechanical Arms and UAV PTZ
Features:
- MS4005 V3 servo motor
- Small size and high torque
- Integrated motor drive
- Built-in driver board
- High-performance MCU
- High-precision absolute encoder
- Supports host computer to adjust parameters
- Suitable for low-speed and high-torque occasions, such as gimbal and turntable
- Widely used: for 360-degree cameras, laser radars, UAV PTZ and handheld cameras
Advantages:
- The high-performance 32-bit MCU makes the motors of the MS series fully compatible with all control commands of the MF series
- It meets the needs of low-speed high-precision position control
- The core materials of the motor are quality silicon steel sheet and high-temperature resistant and strong magnetic permanent magnet
- External rotor has a multi-stage flat design to provide higher torque. Therefore, it is suitable for space-related applications
- Brushless structure and high-performance bearings make the rotation smoother and the motor lasts longer
- With high precision and low temperature drift, alloy resistors are used for sampling, enabling accurate current control
- Full N-channel transistor three-phase full-bridge drive, low internal resistance, and high current
- Torque open-loop, speed, and position control modes can be switched arbitrarily
Package Included:
- 1 x Servo motor
Packaging Details:
- Weight: 0.32kg
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
