| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $1,965.15 | $1,925.05 | $1,864.89 | $1,784.68 | Contact US |

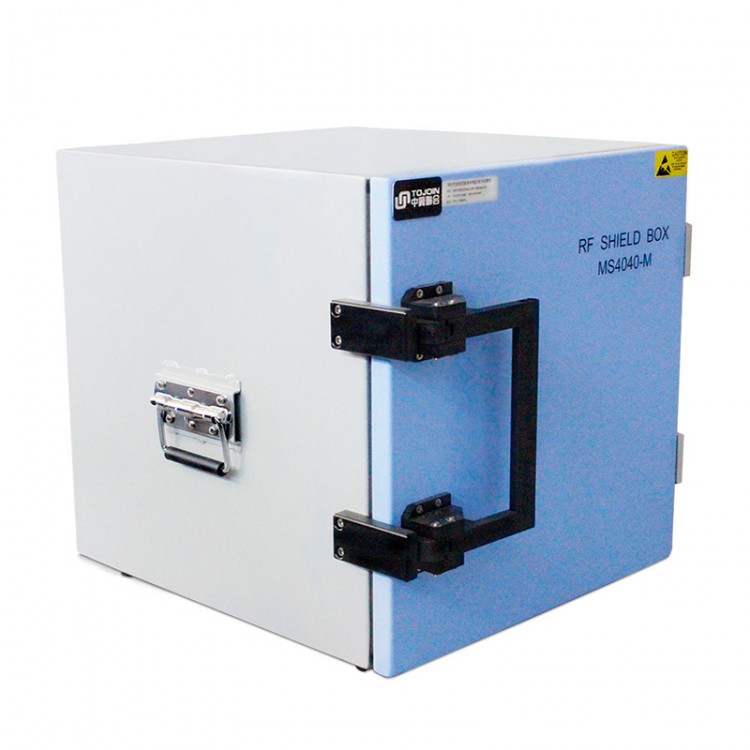

MS4040-M RF Shield Box RF Shield Enclosure Supports Bluetooth IoT 2G/3G/4G/5G Wifi6e Test Standards
Description:
MS4040-M is an economical manual shielding box. It is suitable for building a module and terminal testing solution platform in the fields of smart phones, WIFI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes and so on.
It is made of more than a dozen rigorous processes such as the CNC laser cutting of sheet metal, sheet metal forming, electroplating, electrostatic spray painting, assembly and debugging, testing, etc. It boasts high shielding effectiveness, firm structure, and stable performance.
Features:
- The working size meets most of the test requirements of smart mobile terminals on the market
- New wave absorbing materials are used to reduce the refracted and reflected wave signal in the box, thereby reducing the probability of false detection caused by the environment
- Various filters are available according to requirements
- Various interface types can be combined according to needs
Specifications:
- Working frequency: 0.8～8GHZ
- Shielding effect: ≥80 dB at 2.4GHz; ≥75dB at 7.5GHz
- Interface Type: SMA (6/10,optional)+USB2.0*2+RJ45*1+DB9*1+DC*1 (Can be customized)
- Numbers of filters: 5pcs, 6-SMA
- Control method: manual
- Working temperature (℃): Normal working temperature
- Working size: 370 x 388 x 370mm/14.6 x 15.3 x 14.6" (WxDxH)
- Dimensions: 450 x 490 x 426mm/17.7 x 19.3 x 16.8" (WxDxH)
- Weight: About 30kg/66.1 lb
- Color: Body: beige; Door: light blue (Can be customized)
Package Included:
- 1 x Set of RF Shield Box
