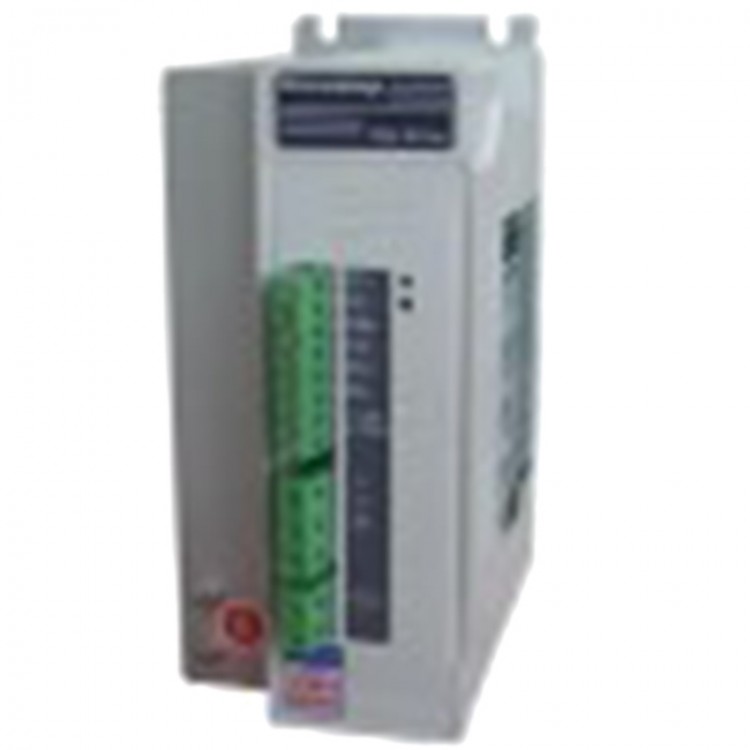

MSa-3H110M 3-Phase Hybrid Stepper Motor Driver Microstep Controller for CNC
Description:
This driver is with automatic half current, phase memory, self test function, with a single pulse mode. 28 kinds Running steps (subdivision), the maximum number of steps is 60000, current can be up to 5.2A.
Features:
- HIgh quality electronic components
- Current setting: 0.3A - 5.2A
- Subdivision: 2,3,4,5,6,8,10,12,15,16,18,20,25,30,32,36,40,50,60,64100150200300.
- Step for every rotation: 200-60000
- Working power supply: AC220V power supply, power is not less than 800W
- For motor: 110 series three phase mixed type high voltage motor
- Dimensions: 158 x 120 x 75mm
Package included:
- 1 x Stepper Motor Driver
