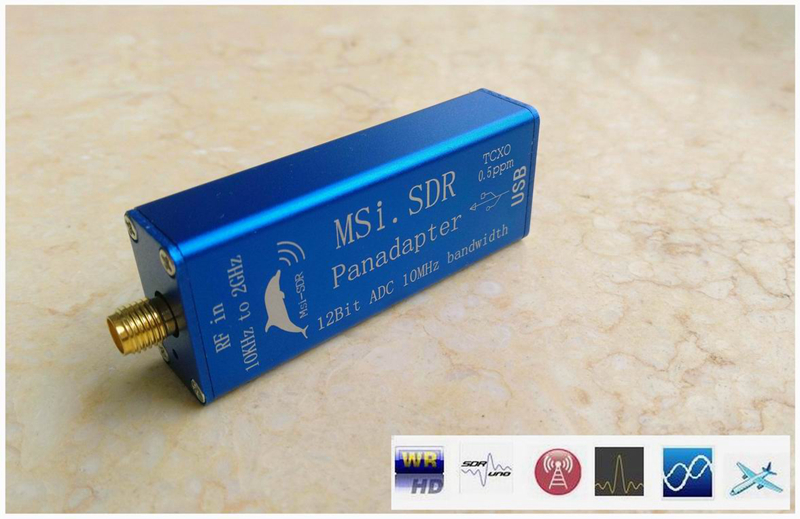

MSI.SDR Panadapter SDR Receiver 10KHz-2GHz For RSP1 Raspberry Pi 2/3 12-Bit ADC Ham Radio
Description:
MSI.SDR is a powerful broadband full-featured SDR receiver!
It covers frequencies from 10KHz to 2GHz. Just connect it to a PC and an antenna, it can work normally.
It is compatible with all RSP1 software and popular SDR software platforms. You can monitor up to 10 MHz spectrum simultaneously and enjoy all modes of operation. Compact size makes it easy to carry. It works in frequencies from LF to HF, VHF and UHF. It fits for all amateur radio wave bands.
Advantages:
- Ideal for portable operation. It weights only 25g.
- It can receive HF short wave directly without up converter.
- Covers all amateur bands, aeronautical bands LF to HF, VHF, UHF.
- It is possible to see the entire amateur band spectrum at the same time.

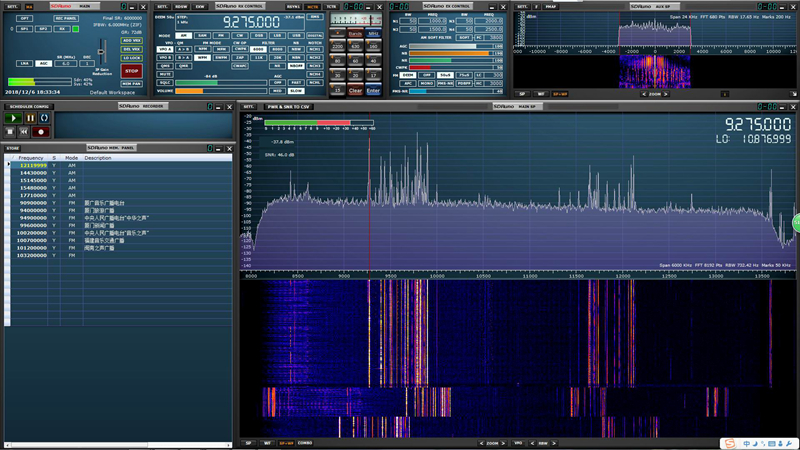

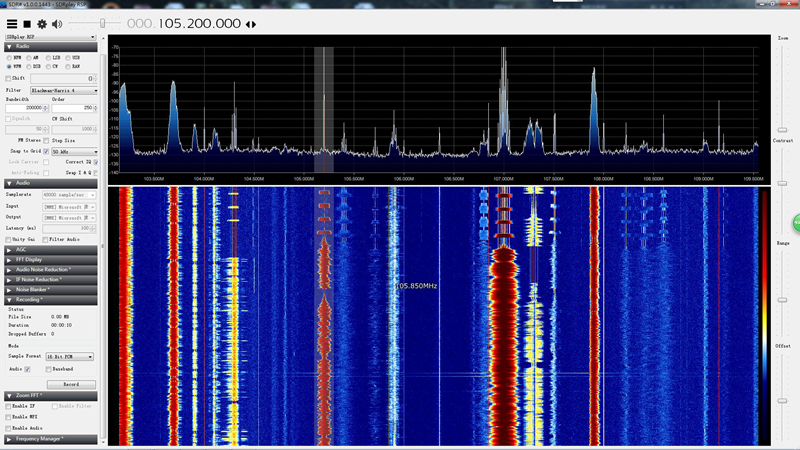

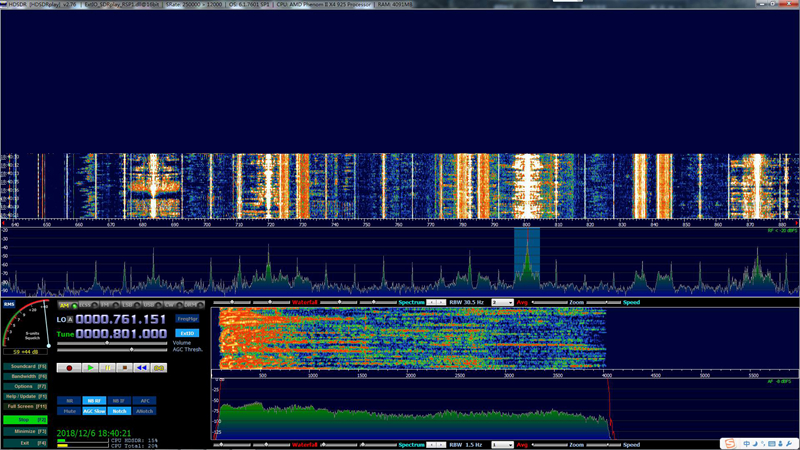

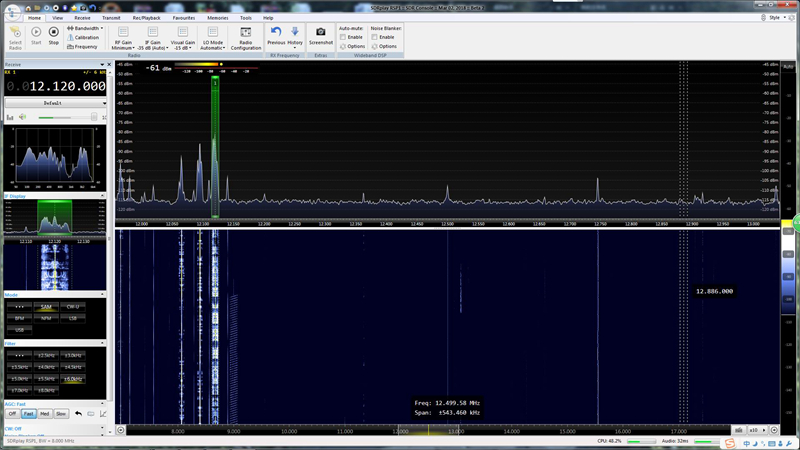

- Fits for mainstream SDR software, including HDSDR, SDRConsole, SDR#, SDRuno.
- Available ExtIO-based plugins
- Support for multi-system platforms, including Windows, Linux, Mac, Android and Raspberry Pi 2/3.
Features:
- Exquisite and sturdy aluminum casing
- Frequency continuous coverage from 10kHz to 2GHz
- 12-bit ADC chip (not RTL chip)
- Built-in front end filter
- Built-in TCXO (temperature-compensated crystal oscillator) 0.5ppm
- Spectrum bandwidth of up to 10Mhz
- Higher sensitivity and good selectivity
- Lower background noise
- Simple USB interface (micor port)
- SMA antenna connector
- USB power supply. No separate power supply needed
- Compatible with all RSP1 software
- Weight: 25g
Package Included:
- 1 x MSI. SDR Main Unit
- 1 x Micro USB Cable 1.0m
- 1 x Test Antenna
