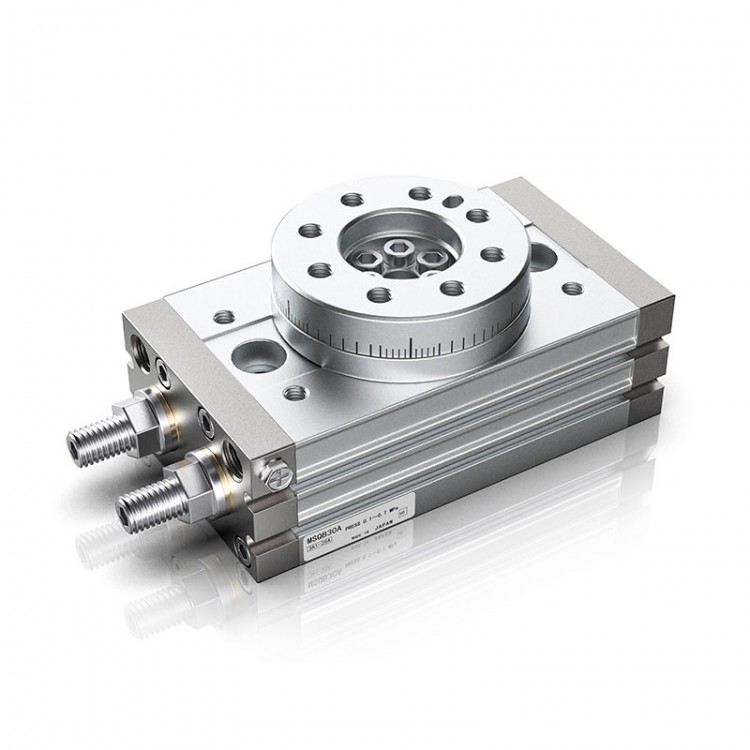

MSQB10A SMC Type Rotating Cylinder 0.1MPa-1MPa 0.007J High Quality Pneumatic Cylinder with Adjusting Screw
Features:
- Angle adjustable: The cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate.
- Design feature: Built-in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating supply from both sides of the piston, one or two way output force.
- Aluminum alloy made: The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment, and has the ability to prevent dust and water.
- Large output force: The cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure.
- Wide application: Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries.
Specification:
- Model: MSQB10A/MSQB20A/MSQB30A
- Working fluid: air
- Maximum working pressure: 1MPa
- Minimum working pressure: 0.1MPa
- Environmental temperature and working fluid temperature: 0 ~ 60℃ (non-condensing)
- Buffer: pad buffer
- Angle adjusting range: 0 ~ 190℃
- Cylinder internal diameter: 15mm for MSQB10A/18mm for MSQB20A/21mm for MSQB30A

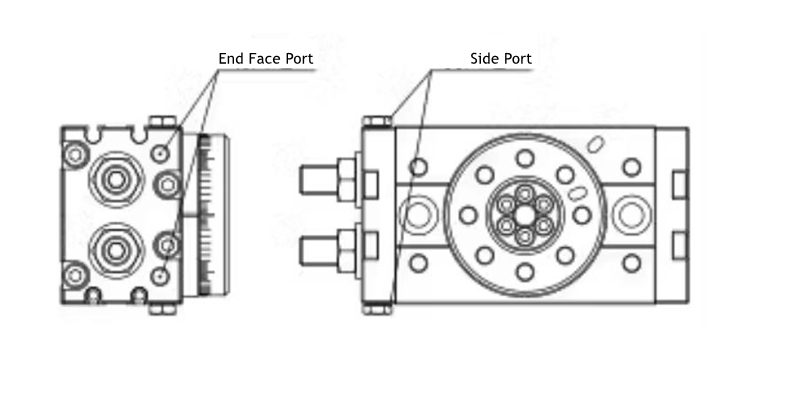

- Port size:
End face piping: M5x0.8 for MSQB10A/MSQB20A; G1/8 for MSQB30A
Side piping: M5x0.8
- The minimum swing angle at which the kinetic energy absorption capacity does not decrease:
MSQB10A: 52°
MSQB20A: 43°
MSQB30A: 40°
- Allow kinetic energy (J):
MSQB10A: 0.007
MSQB20A: 0.025
MSQB30A: 0.048
- Adjustment range of swing time (s~90°): 0.2 - 1.0
- Note: In situations where the kinetic energy exceeds the allowable value, the product may be damaged internally and cannot be used. Therefore, special attention should be paid to not exceeding the allowable value of kinetic energy during design and operation.
Package Included:
- 1 x Pneumatic Cylinder
