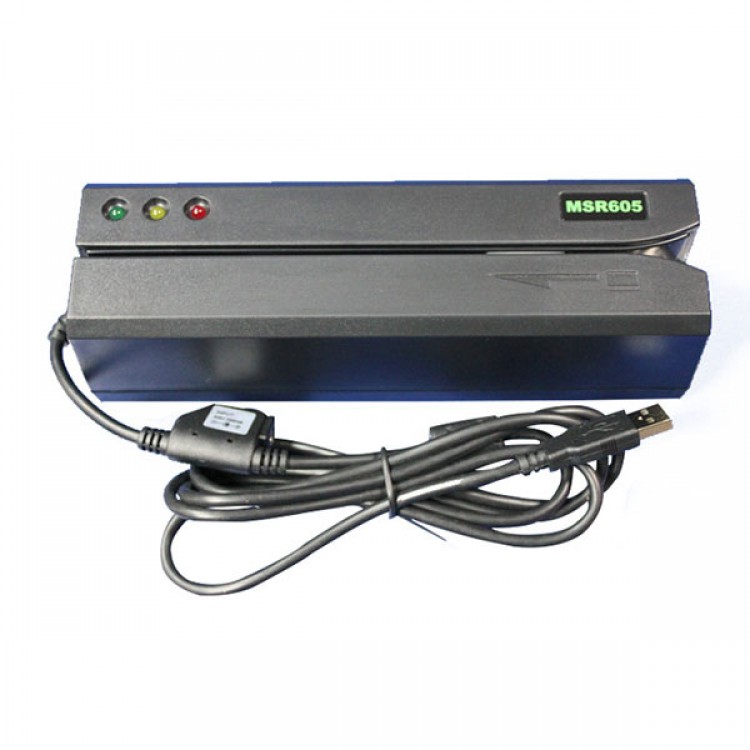

MSR605 HiCo Magnetic Card Reader Writer Encoder Multifunction Magnetic Reader/Writer
MSR605, compatible with MSR206 completely. It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
The MSR605 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system. The MSR605 series is designed to read and/or write high or low coercivity magnetic cards. It can encode and verify up to 3 tracks of data simultaneously. It communicates with a host computer or other terminal using a usb interface.
Specifications:
- Read/Write/Erase High & Low Coercivity (300~4000 Oe)
- Read/Write/Erase 3 Tracks (Track 1, 2 & 3)
- USB Interface
- Updated from MSR606
- Compatible with MSR206
- With Programming Software for Windows 95/98/Me/2000/XP/Vista/Windows 7
- 20 Blank HiCo Magnetic Cards as Free Gift
|
ITEM |
SPECIFICATION |
|
Standard |
ISO7811 |
|
Electrical |
|
|
Consumption |
Current/operating Typical 350mA Max |
|
600mA plus for each writing track |
|
|
Communication |
Standard RS232 signal voltage levels. Default, 9600 Baud, None Parity, 8 bits |
|
Power supply |
External switching Power 9V/2A regulated |
|
Interconnection |
|
|
Cable |
USB |
|
Pin Assignment USB |
1,VBUS |
|
2. Dâ |
|
|
3.D+ |
|
|
4. GND |
|
|
Mechanical |
|
|
Body |
ABS 94V-0 / Metal housing optional |
|
Swipe |
Manual, single direction |
|
Dimension |
212Lx64Wx63H mm |
|
Weight |
1.4Kg approx. |
|
Environment |
|
|
Operation |
- 10ºC to 60ºC |
|
 |
10 to 85% humidity, non condensing |
|
Storage |
-30ºC to 70ºC |
|
 |
10 to 90% humidity, non condensing |
|
Performance |
|
|
Read Circuit |
Track 1&3 210bpi |
|
Track 2,75 or 210 bpi |
|
|
Bit per Char |
5-7 bit per char. |
|
Media Speed |
Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi) |
|
Write, 5-30 |
|
|
Media Coercivity |
Read 300-4000 Oe Mag. Card |
|
Write 300-4000 Oe Mag. Card |
|
|
Media Thickness |
0.76-1.2mm |
|
Jitter Card |
Read bit to bit interval <+/-1 5% card |
|
Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips |
|
|
Low amplitude Card |
Read 60% for both 75& 210bpi |
|||
|
Error Rate |
Read < 0.5% |
|||
|
 |
Write < 0.8% |
|||
|
Media Swipe |
Head life 1,000,000 passes for both read & write head |
|||
|
Configuration Available Model |
Model |
Read/Write Track |
Hi-C |
Lo-C |
|
MSR605 |
1&2&3 |
R/W |
R/W |
|
Package Includes:
- 1 x MSR605 Reader Writer
- 1 x CD(User's Manual, USB Driver, Programming Software)
- 1 x A/C Adapter(100-240V, with plug for worldwide use: US, AU, UK or Europe)
- 1 x Cleaning Card
- 20 x Blank HiCo Magnetic Cards
