MT-15 Laser Ranging Sensor UAV FPV Fixed Height Obstacle Avoidance Module Compatible with APM/PX4

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.25
  • Price in reward points: 333 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.59 $31.92 $30.92 $29.59 Contact US
Quantity:

MT-15 Laser Ranging Sensor UAV FPV Fixed Height Obstacle Avoidance Module Compatible with APM/PX4

Specification:

- Model: MT - 15
- Product weight: 5.5g

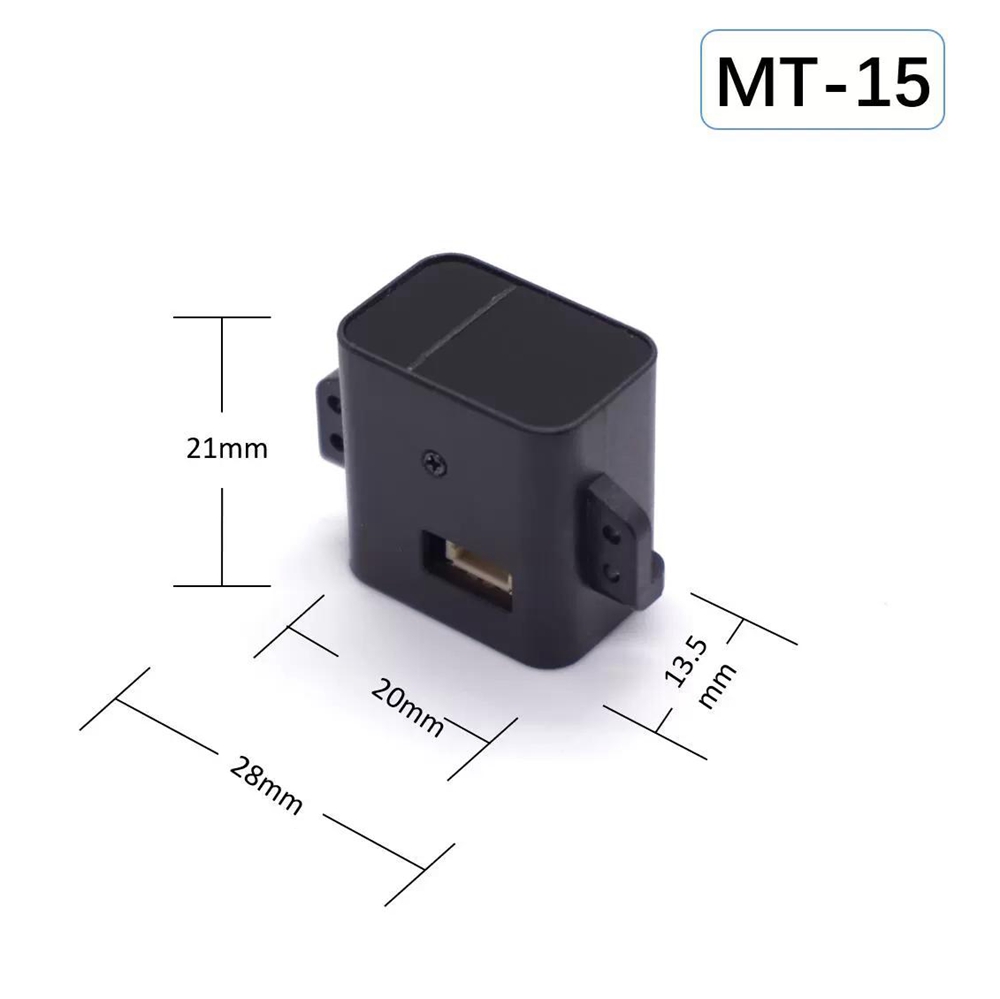

- Product size: 28 x 13.5 x 21mm
- Output method: UART/IIC switch
- Measuring frequency: 800Hz - 5Hz adjustable
- Ranging: 0.05 - 15m
- Blind region: 5cm
- Ranging precision: 2cm (0.05 - 2)m 1% (2m - 15m) at 90% reflective object
- Laser wavelength: 830 - 870nm
- Resistance to ambient light: 100K Lux illuminance
- Laser FOV: 1 - 2°
- Laser safety level: Class 1
- Power consumption: 500mW
- Working voltage: 4.0 - 5.5V
- Working temperature: -10℃ ~ 60℃

Package Included:

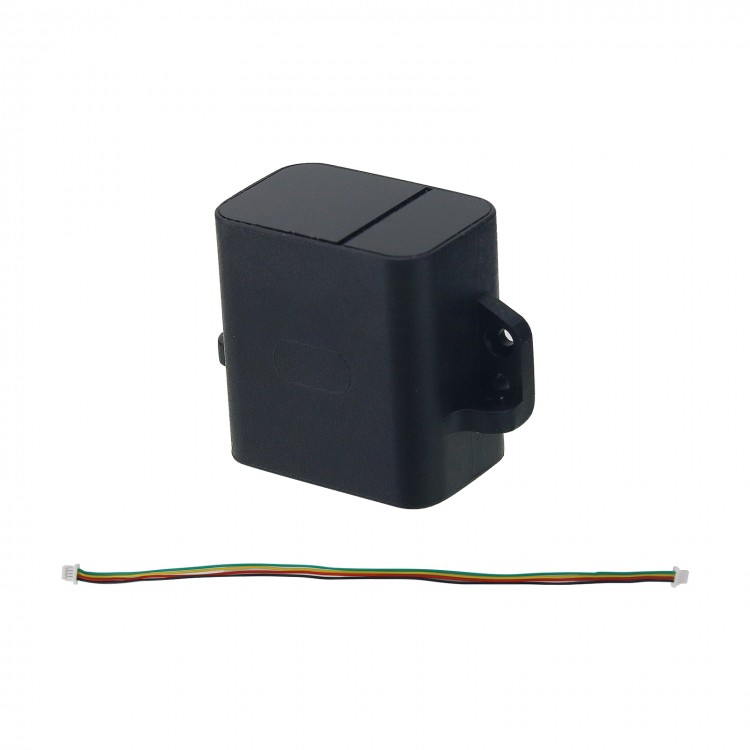

- 1 x Laser Ranging Sensor
