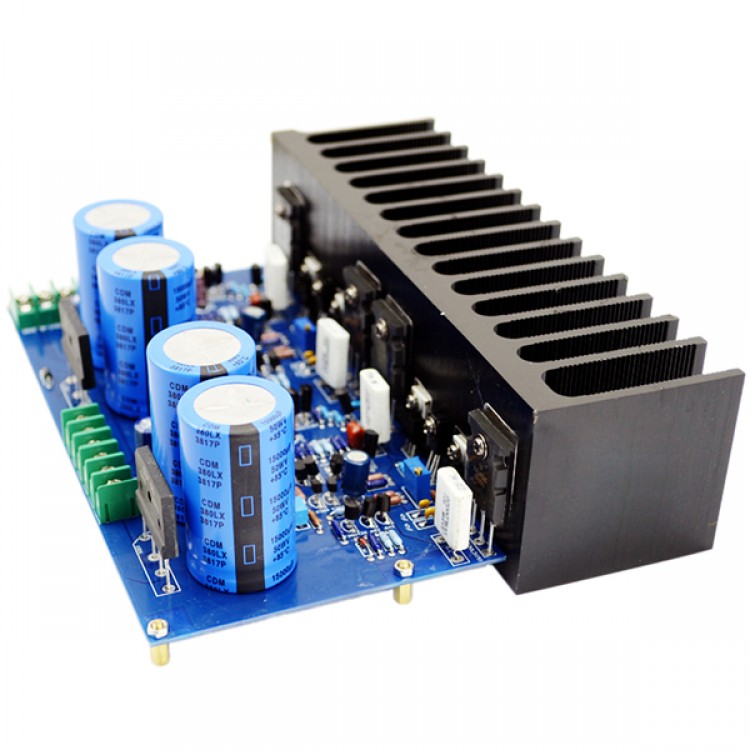

MT-150 HIFI Class A Amplifiers 150W 15000UF 50V 2SK366 Power Amplifier Board Asembled
Features:
- MT - 150 Using all the originalhifi components, to ensure its effect! Rectifier bridge is a flat of 25 a bridge, a new original American CDE 15000 uf 50 v filter capacitors (one of the most favorite capacitance enthusiasts), Toshiba fever 2 sk366 input field tube
Specifications:
- Size:203mm*103mm PCB
- Max power:150W/8ohm 250W/4ohm
- Power:15V-36V
- Distortion:<0.001% 10W/8ohm
- Response frequency:2Hz-200KHz
- Damping coefficient:>100
- SNR:>96dB
- Convert speed:>50V/uS
- Input sensitivity:0.707V
- Input impedance:33K
- Gain:31dB
Not iincluded the heatsink ,power tube and capacitor need to install, installation of power tube first, then install capacitance
