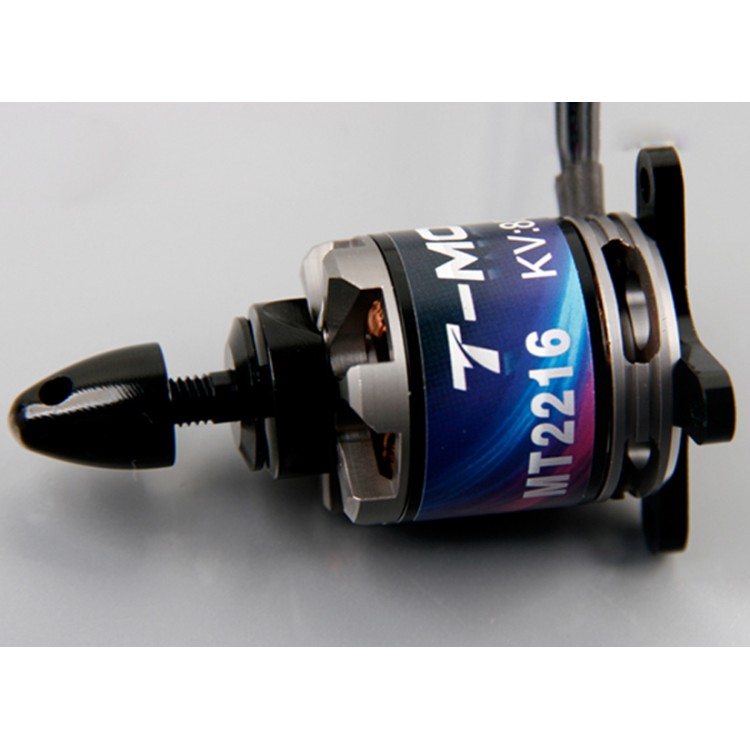

MT2216-12 800kv Motor Tiger T-Motor Multicopter series - 88g 180w
Tiger Motors elite series is the MT Multicopter brushless motor- using the best Japanese materials and assembled and balanced in one of the top factories in China - The reason for paying the extra is in the EFFICIENCY - more thrust and less amps, combined with more powerful magnets and EZO bearings made in Japan.
Features:
- All of our motors come with extremely permanently lubricated EZO ball bearings from Japan.
- All the stators of our motor are made with NO.1200#0.2mm sukucib laminations from Japan for maximum efficiency and minimum eddy current losse. High quality stator plates are epoxy coated on the inner surface to prevent winding shorts
- Specially designed N45uh magnets with a 200 C (392 F) temperature rating for trouble-free operation.
- All motors sound and feel perfect, the bearings sound great, they don’t sound at all.
- Oxygen-free copper wire temperature of 180 degrees is used in winding the motors.
- CNC Machined aluminum front and rear housing with cooling holes that pump air through the motor while it runs.
- Orderly winding configuration
- Offering perfect balance movement performance.
- Rear threaded mounting holes with both hole spacing fit a variety of applications.
- A machined aluminum cross style mount and a threaded prop mount is included with every motor, along with a wobbly adapter on select models.
- To sum up, creating a high quality T-motor motor
| Motor: MT2216- 12 KV:800 | |||||||
| Technical Datas | |||||||
| KV | 800 | ||||||
| Configu-ration | 12N14P | ||||||
| Stator Diameter | 22mm | ||||||
| STator Length | 16m | ||||||
| Shaft Diameter | 3mm | ||||||
| Motor Dimension(Dia.﹡Len) | Φ27.8×34mm | ||||||
| Weight(g) | 75 | ||||||
| ldle current(10)@10v(A) | 0.3 | ||||||
| No.of Cells(Lipo) | 2-4S | ||||||
| Max Continuous current(A)180S | 17A | ||||||
| Max Continuous Power(W)180S | 180W | ||||||
| Max. efficiency current | (5-15A)>80% | ||||||
| internal resistance | 129mΩ | ||||||
| Volts(V) | Prop | Throttle | Amps(A) | Watts(W) | Thrust(G) | Thrust(OZ) | RPM | Efficiency(G/W) | Efficiency(OZ/W) | Remark |
| 11.1 | APC10*3.8 | 50% | 2.1 | 23.31 | 320 | 11.29 | 4131 | 13.73 | 0.48 | |
| 65% | 3.5 | 38.85 | 440 | 15.52 | 4825 | 11.33 | 0.40 | |||
| 75% | 5.9 | 65.49 | 600 | 21.16 | 5560 | 9.16 | 0.32 | |||
| 85% | 7.8 | 86.58 | 690 | 24.34 | 5991 | 7.97 | 0.28 | |||
| 100% | 10.6 | 117.66 | 830 | 29.28 | 6548 | 7.05 | 0.25 | |||
| APC11*4.7 | 50% | 2.8 | 31.08 | 390 | 13.76 | 3840 | 12.55 | 0.44 | ||
| 65% | 4.5 | 49.95 | 500 | 17.64 | 4431 | 10.01 | 0.35 | |||
| 75% | 7.4 | 82.14 | 700 | 24.69 | 5065 | 8.52 | 0.30 | |||
| 85% | 9.9 | 109.89 | 820 | 28.92 | 5477 | 7.46 | 0.26 | |||
| 100% | 12.4 | 137.64 | 960 | 33.86 | 5862 | 6.97 | 0.25 | |||
| 14.8 | APC10*3.8 | 50% | 3.3 | 48.84 | 480 | 16.93 | 5074 | 9.83 | 0.35 | |
| 65% | 5.4 | 79.92 | 650 | 22.93 | 5837 | 8.13 | 0.29 | |||
| 75% | 8.1 | 119.88 | 810 | 28.57 | 6514 | 6.76 | 0.24 | |||
| 85% | 11.9 | 176.12 | 1030 | 36.33 | 7182 | 5.85 | 0.21 | |||
| 100% | 15.2 | 224.96 | 1210 | 42.68 | 7750 | 5.38 | 0.19 | |||
| APC11*4.7 | 50% | 3.9 | 57.72 | 540 | 19.05 | 4551 | 9.36 | 0.33 |
hot |
|
| 65% | 6.4 | 94.72 | 730 | 25.75 | 5262 | 7.71 | 0.27 | |||
| 75% | 10.8 | 159.84 | 990 | 34.92 | 6060 | 6.19 | 0.22 | |||
| 85% | 13.8 | 204.24 | 1110 | 39.15 | 6475 | 5.43 | 0.19 | |||
| 100% | 17.5 | 259 | 1320 | 46.56 | 6835 | 5.10 | 0.18 |
