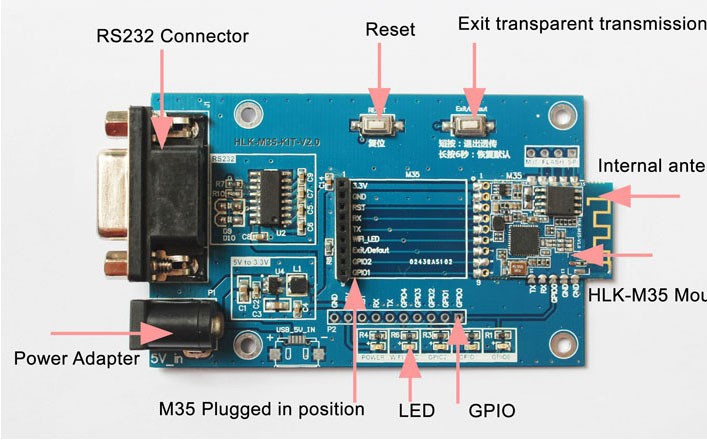

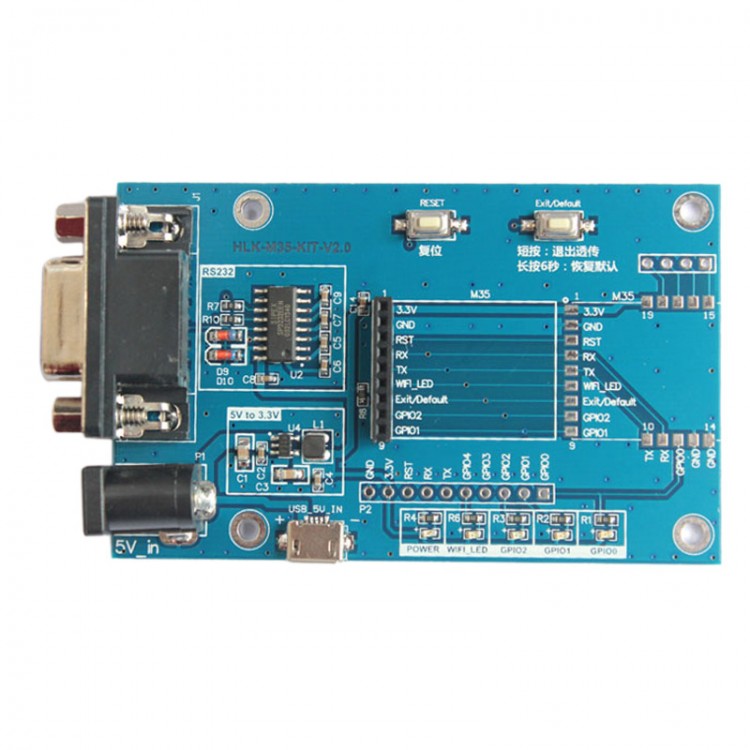

MT7681 Development Board Serial WiFi Module MCU Intelligent Home Wireless HLK-M35 Evaluation Board
The M35 module features:
- Small size 25*18MM
- The WIFI module with ultra low power consumption (outstanding power saving)
- The start time is 1 second
- The perfect support for the 802.11 b/g/n protocol
- To support the market all the way WIFI encryption
- No need any user driven,the user SCM need only as an ordinary serial port to use
- Support AP (hot) /STA (WIFI nodes)
- Support for TCP Server/TCP Client/UDP Server/UDP Client working mode
Support DHCP DNS HTTP advanced application layer protocol
- Support serial port AT instruction set(support serial port tool configuration)
- LAN support search protocol search module
- Support SmartLink intelligent network functions,use the mobile phone APP control module one key connected to common wireless router
- CE/FCC certification, in line with the ROHS standard
The technical characteristics of MT7681:
- Applicable to the wisdom household equipment, is currently the smallest IEEE 802.11n SoC,can be an easy way to
- Embedded equipment design web services,all functions are integrated in the 40pin, the 5x5mm QFN package.
- Provide GPIO/PWM intelligent control, and provides UART/SPI interface for mobile communication.
- Integrated power management unit, power amplifier, low noise amplifier, RF switch module, reduce the volume and RF design capacity requirements.
- For a simple type of small household electrical appliances, such as intelligent socket, lighting and sensor.
- Smart phone application Smart Connection is a superior solution,let different smart home devices through the Wi-Fi network
- Connect each other in a single interface,from lighting, television, wisdom wisdom door lock to other household appliances.
- This application supports Android, iOS, Windows and Linux platform,also supports the intelligent mobile phone with non MediaTek SoC.
Package included:
- 1 x Development Board
