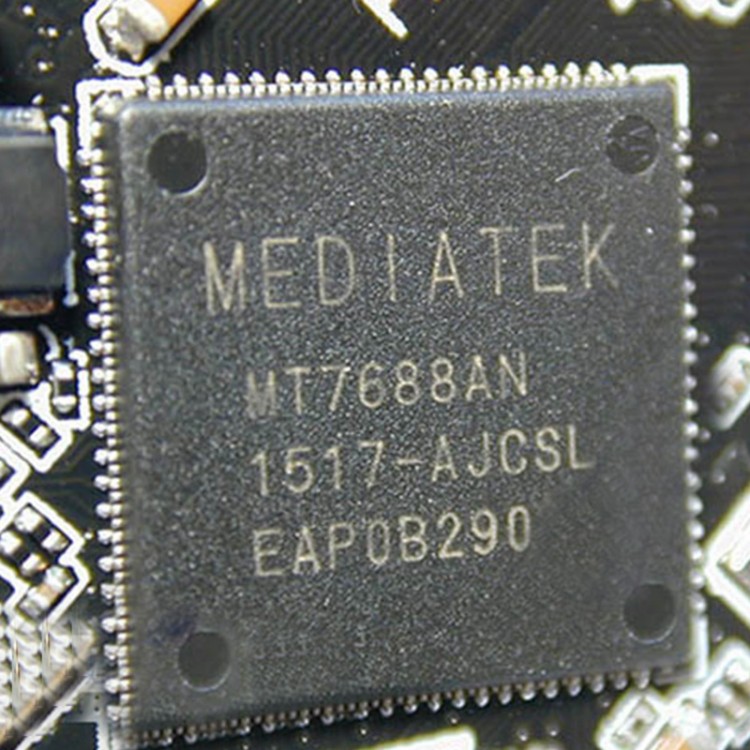

MT7688K MT7688A MTK Smart Household WIFI Chip IOT Intelligent Module

MT7688K MT7688A MTK Smart Household WIFI Chip IOT Intelligent Module

Description:
MT7688 is a smart domestic system chip, lowest power consumption one, using Linux system, support 802.11n. MT7688 built in MIPS24KEc/580MHz processor, 256MB memory and AES128/256 encryption engine, can handle more complex or data intensive smart home devices, such as IP projector and home monitoring system.

Features:
- Weirless + wired router scheme
- The wireless one supports 802.11b/g/n, the highest rate: 150Mbps
- The weired one supports 1WAN or 1LAN, 10M/100M adaptive
- RF power - moderate consumption
- Support 64MB/128MB/256MB DDR2 memory
- High speed USB interface - 480Mbps
- 3 channels UART (recommended UART0 dedicated to Debug system)
- I2S digital audio interface
- I2C communication interface
- 4 bit/8bit SD card memory interface
- Richful GPIO

Product specifications:
- Embedded MIPS24KEc (580MHz) 64KB for the ICache and 32KB data cache
- 1T1R 2.4 GHz and PHY 150Mbps data transmission rate
- 802.11n mode of traditional 802.11b / g and HT
- 20/40MHz channel bandwidth
- 802.11v standard
- Empty packet encoding (STBC)
- 16 bit DDR1/2 to 128/256 byte
- X1USB 2 host, PCIe X1 root Consortium
- 1 Port PHY 10FE
- SD-XC, I2C, PCM, I2S, eMMC (192K/24,,, PWM, SPI),, UART, JTAGGPIO
- Internet of things
- Built in PMU
- Green /STA AP
- Intelligent clock frequency (exclusive)
- DDRII:ODT off, self refresh mode
- Service quality: WMM-PS, WMM
- More than 16 BSSID
- /ILNA IPA and EPA/ELNA
- 24STA- agent
- AES128/256-CBC
- WEP64/128, TKIP, AES, WPA, WPA2, WAPI
- WPS: the people's Bank of China, PIN code
- /STA AP firmware: 2.6.36 SDK OpenWrt, 3.10SDK Linux and eCos using IPv6

Package included:
- 1 x Module
