MTSKR1905WF Waterproof Surfboard Skateboard Remote Control For Esk8/Esurf/Efoil/Hydrofoil RC Car
Description:
MTSKR1905WF New Waterproof Remote Control for Esk8/Esurf with Display and Wireless Charging Functions with Receiver. It is Perfect for Electric Foil/Hydrofoil/Efoil/Foilsurf/Electric Surfboard.
Applications:
It is suitable for your Efoil, E-SUP, robots, RC airplanes, RC boats, RC cars, electric skateboard, electric surfboard and the like.
Specifications:

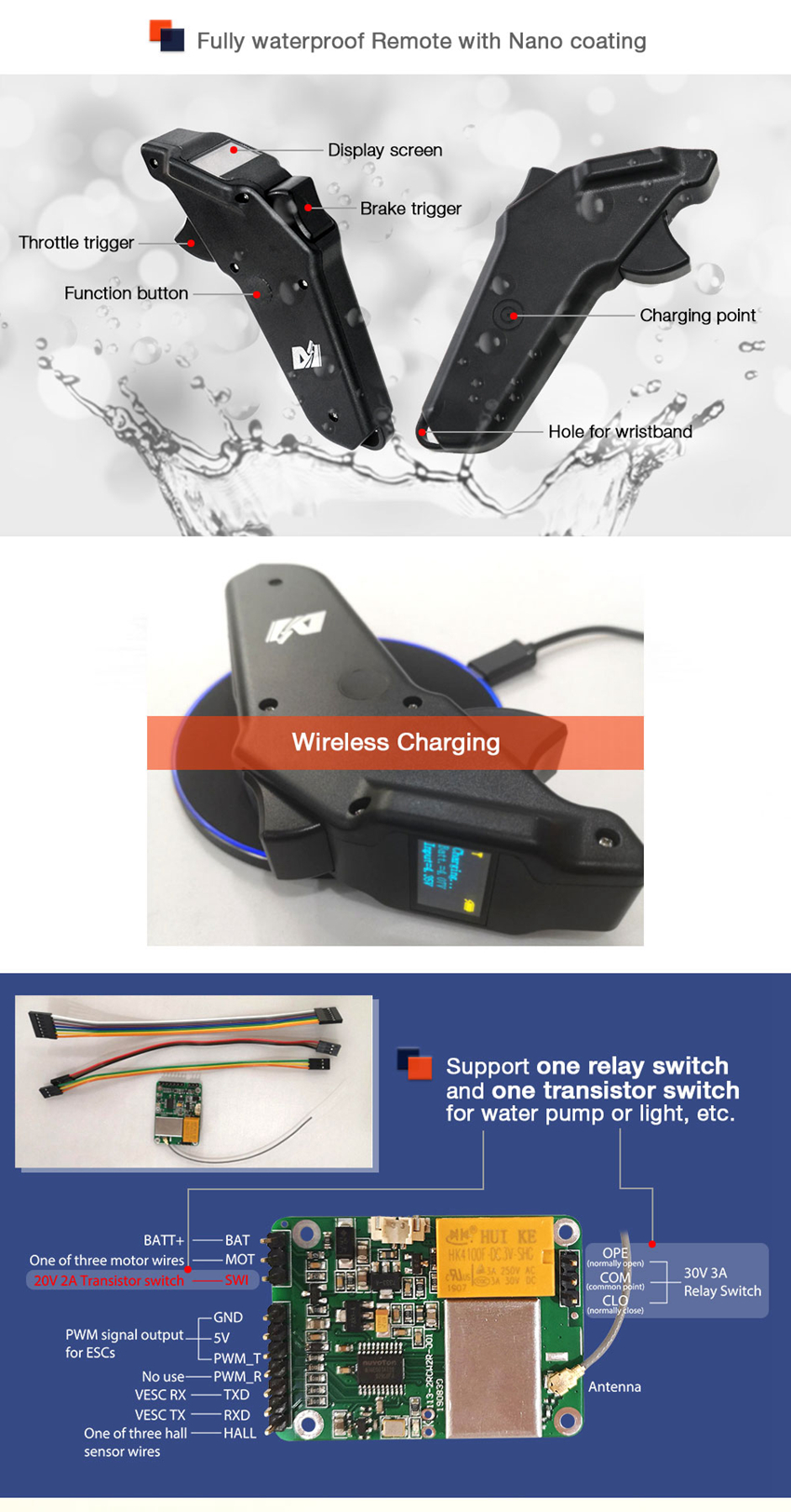

Transmitter:
- Waterproof Rank: IP67
- Triggers: 2pcs (For skateboard: lower trigger for throttle, upper trigger for brake. For surfboard: lower trigger for throttle, upper trigger for constant speed cruise)
- Sensor Type: Non-contact hall sensor
- CPU: STM8
- Screen: 128x64 OLED, yellow-blue display
- Charging Port: QI standard wireless charging interface
- Transmission Distance: 10M in the air; 1M in the water
Receiver:
- Power Supply: 5V/3.7V two-way power supply, supporting automatic switching
- Throttle Signal Output: 1-2ms, 50Hz, PWM, 5V Max.
- Voltage Detection Range: 5-80V, ±5%
-Hall / motor phase line speed measurement range: 0-80000 electrical speed
-Max. Load Current of Relay: 3A
-Maximum load current of MOS tube electronic switch: 2A
- ESC for Benjamin protocol communications rate: 115200bps
Dupont Cables:
- One 20cm cable with 7-pin
- Two 20cm cables with 3-pin
Attention: Due to different production batch, the colors of cables might vary slightly. Please make sure that you don't mind before purchasing.
Wireless Charger:
- To ensure its waterproof performance, the transmitter only supports the wireless chargers in line with QI standard. It takes less than two hours to fully charge the transmitter.
Tips After Using:
In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
Go to the following Links for Youtube to check the remote instruction videos:
1.Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0
2.Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww
3.Motor RPM display by VESC: https://youtu.be/qqaZf78ilV4
4.Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU
5.Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw
6.Connect to VESC or VESC based Controller: https://youtu.be/sDiAPsg0hWc
7.Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI
8.Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs

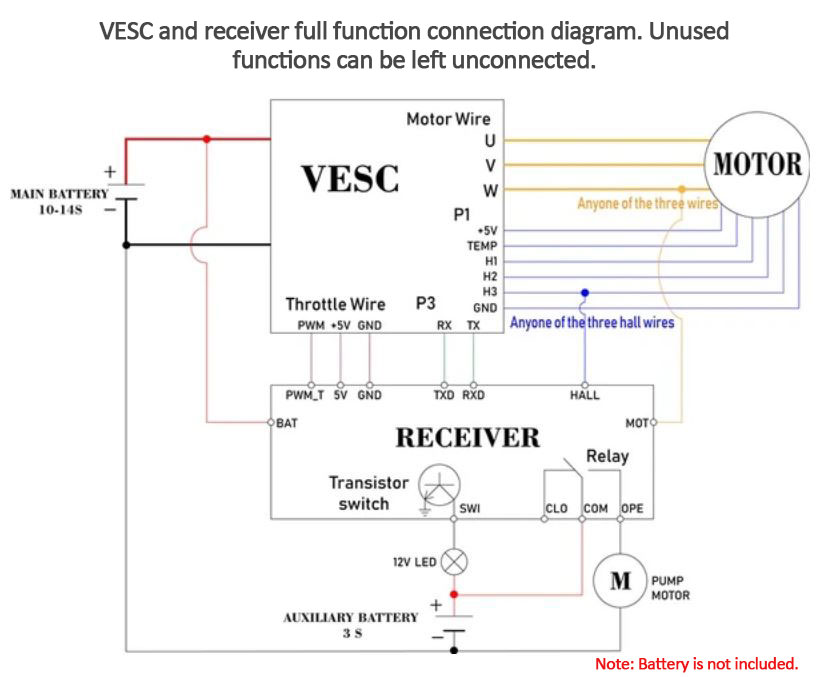

9.Receiver wiring with VESC or VESC based controller
(You can select the functions you need and connect them accordingly.)

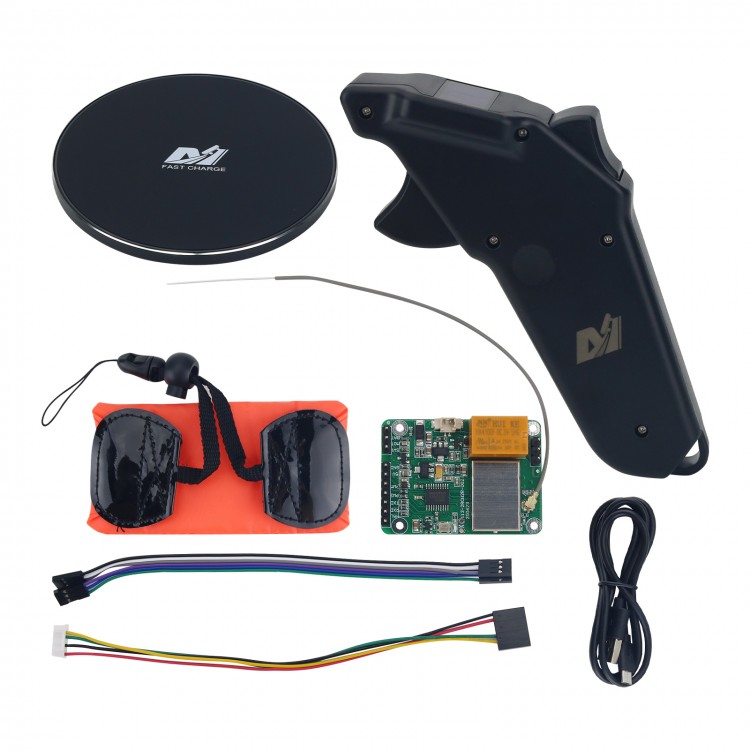

Package Included:
- 1 x Waterproof Transmitter
- 1 x Receiver with 3 Cables
- 1 x Charging Board with USB Cable
- 1 x Wristband
Note: Battery is not included in the package.
