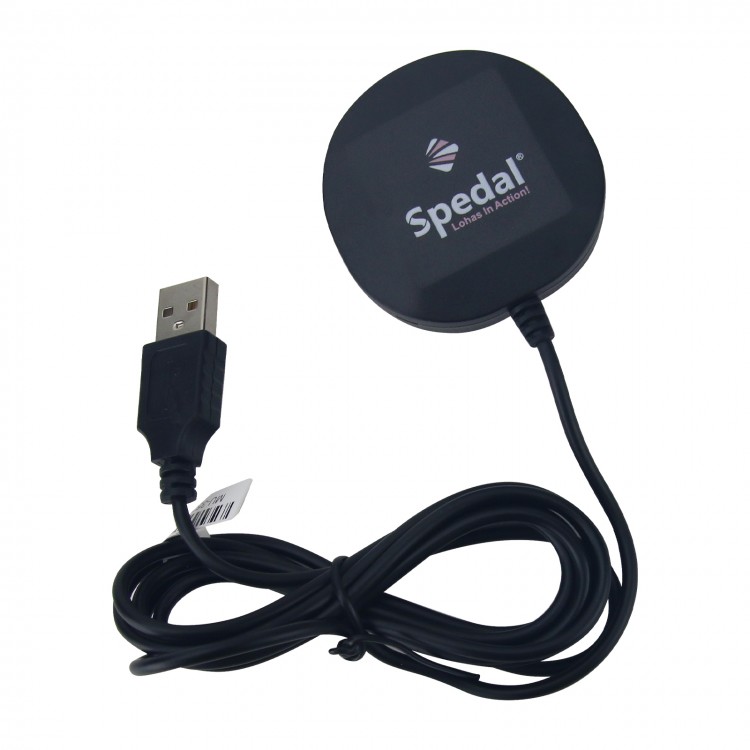

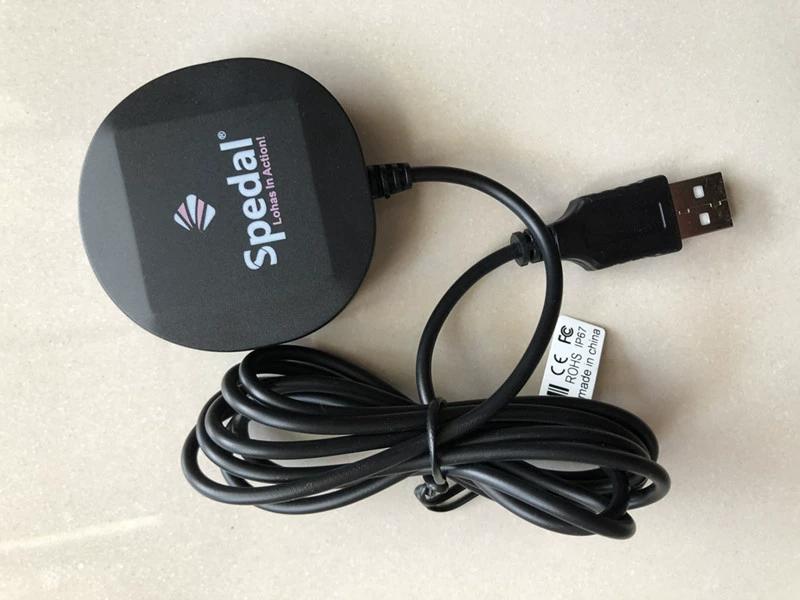

MU-353 High Sensitivity GPS Receiver Module Support NMEA0183 Protocol for Spedal Replacement for GlobalSat bu-353s4

MU-353 High Sensitivity GPS Receiver Module Support NMEA0183 Protocol for Spedal Replacement for GlobalSat bu-353s4

Description:
- This MU-353 uses a high sensitivity MTK chip, single mode GPS data format, and supports all GPS or GNSS map software on the market.
- MU-353 is the most commonly used GPS receiver, currently the latest 5th generation high sensitivity MTK chip. It has a special lightweight design and industrial grade waterproof design, using the MTKAG3352Q chip set and built-in active ceramic antenna to make positioning more accurate; Especially suitable for using in conjunction with various outdoor activities, it can be used on various vehicles, ships, and aircraft.

USB Computer Driver and Testing Software Download:
- https://www.globalsat.com.tw/style/frame/m5/features.asp?content_set=color_2&lang=2&customer_id=909&name_id=10593

Application:
- Professional network testing, network optimization, and road testing equipment for many companies.
- Used for measurement, such as geodesy, resource exploration, cadastral surveying, etc.
- In the field of intelligent transportation, ship and car navigation, aircraft positioning and navigation, bus companies, vehicle and personnel positioning and tracking, logistics, etc.
- Outdoor sports, tourism and exploration.
- Accurate timing of electricity, post and telecommunications, communication networks, etc.

Performance Testing:
- Let's first observe the satellite search situation of MU-353. The testing conditions are in an open area, as GPS equipment cannot receive satellite signals indoors. Unless you choose to use simulated signals from the laboratory, in order to describe its true performance, we think it is better to choose an outdoor environment.
- Before testing, install the driver PL2303 and GPS testing software "GPS Information". The driver and testing software can be downloaded from the official website for GlobalSat at www.globalsat.com

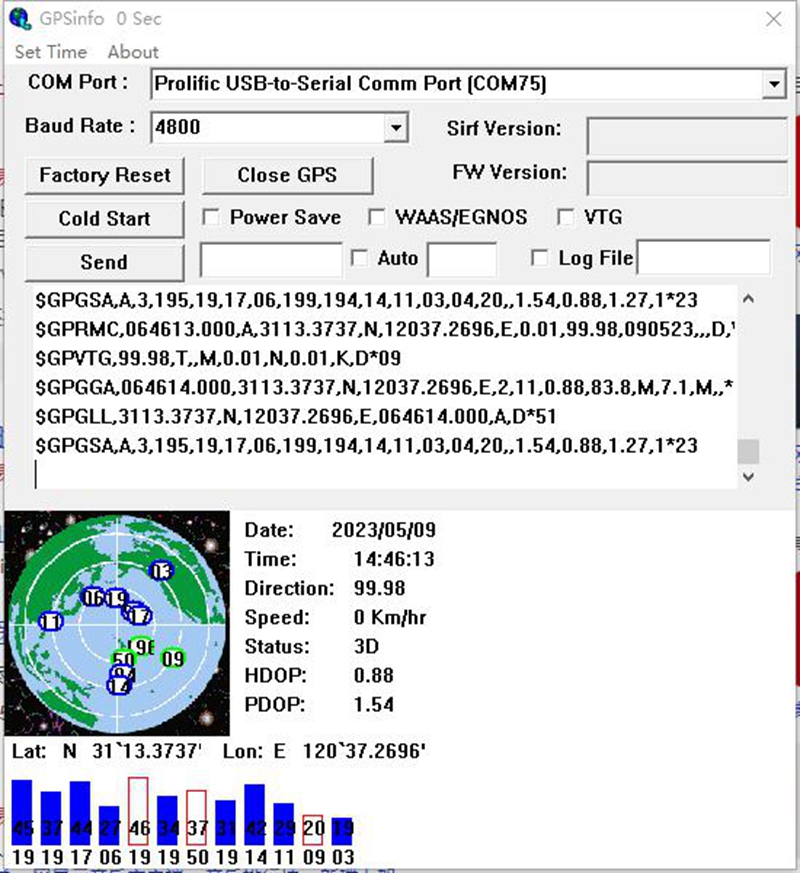

- For GlobalSat GPS Testing Software Interface:


Features:
- MediaTek AG3352Q high performance GPS chip set
- High sensitivity (-165dBm)
- Even if the satellite signal is weak, the first positioning is still very fast
- Support NMEA0183 communication protocol
- Built-in super large capacitor, which can store quickly obtained satellite signal data
- Built-in ceramic antenna
- Strong magnetic properties that can be adsorbed on vehicles
- 100% waterproof and anti slip bottom
- USB or RS232 connection interface
- Display GPS positioning status with LED indicator
  LED light off: not enabled
  LED light on: search signal
  LED flashing: positioned
- Support for WAAS ENGOS

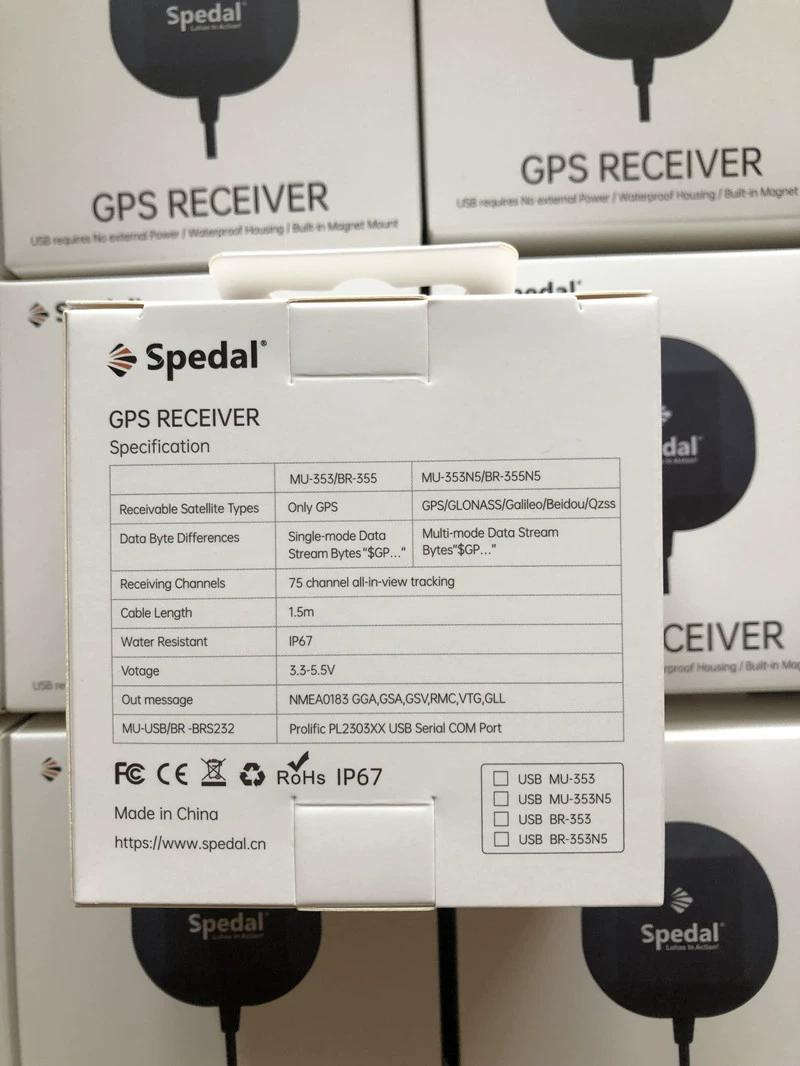

Specification:
- Chip set: MediaTek AG3352Q
- Frequency:
  GPS/Galileo/QZSS/SBAS: L1, 1575.42 MHz, C/A code
  GLONASS: L1, 1602 MHz
- C/A code: 1.023MHz chip rate
- Channel count: 75 tracking channels
- Sensitivity: -165dBm
- Accuracy: 3 meters, 2DRMS
- Positioning:
  2.5meters, 2DRMS
  2 meters, 2D RMS
  WAAS enable
- Speed: 0.1m/s
- Time: 1 microsecond satellite synchronization

Coordinate data:
- Preset: WGS-84

Receiving time:
- Re reception: average 0.1s
- Hot start: average 1s
- Warm up: average 33s
- Warm and cold startup: average 33 seconds

Related Restrictions:
- Height: 18000 meters (60000 feet) maximum
- Speed: 515m/s (10000 knots) maximum
- Gravity: less than 4G
- Shake: 20m/s x 3

Power:
- Main power input: 4.5V ~ 6.5V DC input
- Power consumption: 42mA

Agreement:
- Operational level: TTL level
- Output voltage: 0V~2.85V
- Transmission speed: 4800bps
- Output format: for NMEA 0183 GGA, GSA, GSV, RMC (GLL, VTG, ZDA, GRS, GST are optional)

Physical characteristics:
- Volume: 30.3 +/- 0.3 x 30 +/- 0.3 x 8.6 +/- 0.5mm
- Signal line length: 1.50 meters
- Operating temperature: -40°C to +85°C

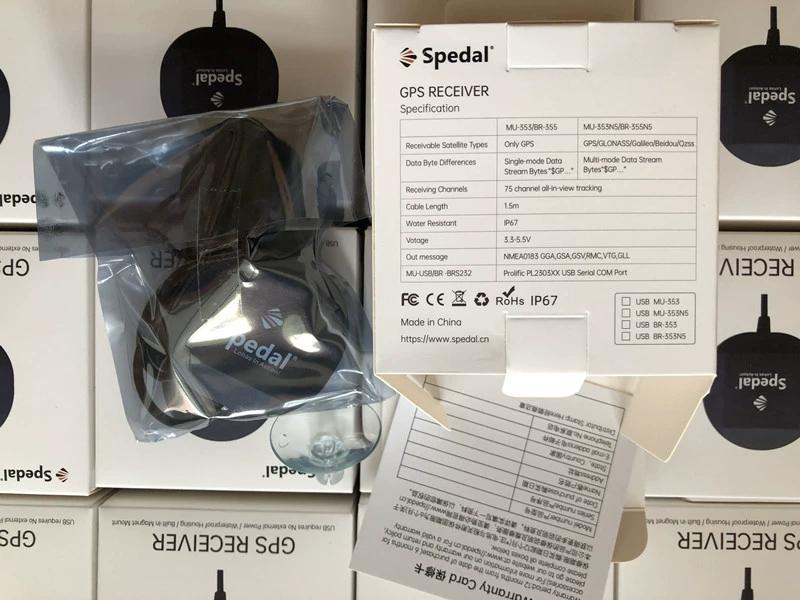

Package Included:
- 1 x GPS Receiver Module
