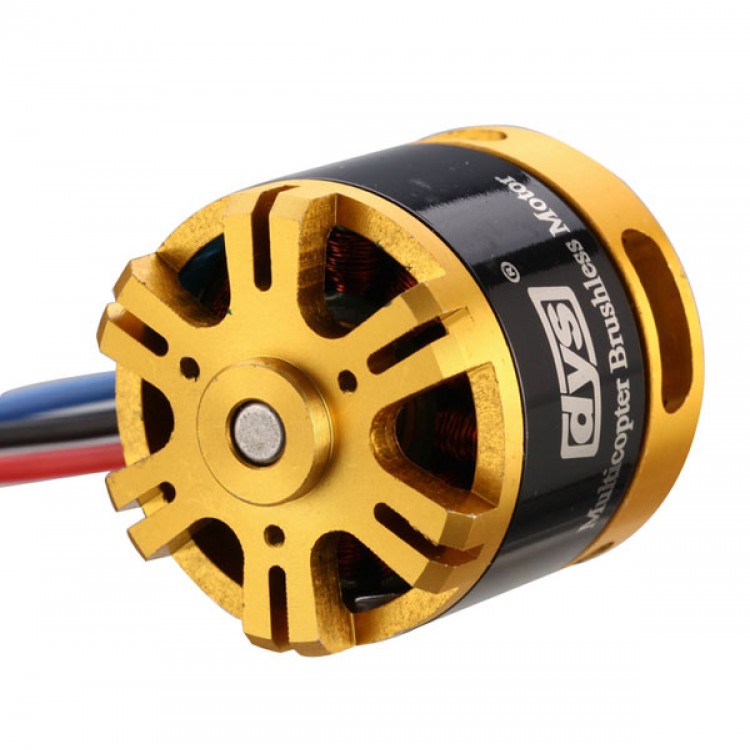

Multi Rotor Brushless Motor BE2208-10 (1800KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1800
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................3.17mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
- Weight (g)...................................................................................................44g
- No.of Cells(Lipo).....................................................................................2-3S
- Max Continuous current(A)............................................................26.1A
- Max Continuous Power(W)...........................................................289W
- Internal resistance..............................................................................0.085
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE2208-10 (1800KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 7.4 | 0.8 | 13500 | 6.2 | 270 | 45.9 | LiPoх2/6x5E | |
| 15.5 | 430 | 114.7 | LiPoх2/7x5E | ||||
| 16.6 | 540 | 122.8 | LiPoх2/8x4E | ||||
| 11.1 | 0.8 | 20250 | 11.6 | 574 | 128.8 | LiPoх3/6x5E | |
| 24.7 | 662 | 274.2 | LiPoх3/7x5E | ||||
| 26.1 | 816 | 289.7 | LiPoх3/8x4E | ||||
