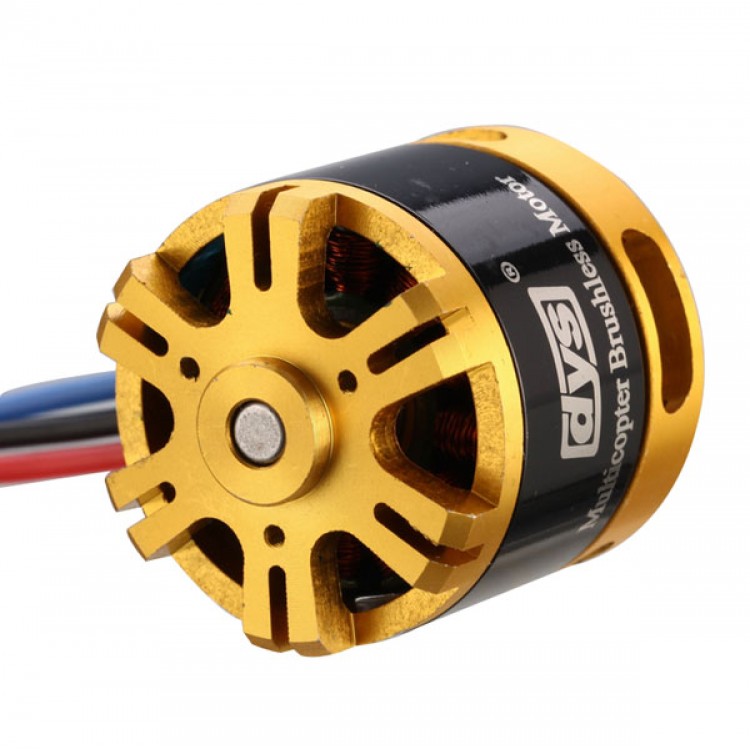

Multi Rotor Brushless Motor BE2208-13 (1400KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1400
- Configuration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................3.17mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
- Weight (g)...................................................................................................44g
- No.of Cells(Lipo).....................................................................................2-4S
- Max Continuous current(A)............................................................26A
- Max Continuous Power(W)...........................................................384W
- Internal resistance..............................................................................0.106Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE2208-13 (1400KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 7.4 | 0.4 | 7970 | 3.4 | 170 | 25.2 | LiPoх2/6x5E | |
| 9.6 | 340 | 71.0 | LiPoх2/7x5E | ||||
| 10.3 | 430 | 76.2 | LiPoх2/8x4E | ||||
| 12.1 | 530 | 89.5 | LiPoх2/9x6E | ||||
| 11.1 | 0.5 | 11930 | 6.3 | 380 | 69.9 | LiPoх3/6x5E | |
| 16.1 | 580 | 178.7 | LiPoх3/7x5E | ||||
| 17.1 | 730 | 189.8 | LiPoх3/8x4E | ||||
| 19 | 835 | 210.9 | LiPoх3/9x6E | ||||
| 14.8 | 0.5 | 15880 | 9.8 | 640 | 145.0 | LiPoх4/6x5E | |
| 22.1 | 780 | 327.1 | LiPoх4/7x5E | ||||
| 23.5 | 960 | 347.8 | LiPoх4/8x4E | ||||
| 26 | 1060 | 384.8 | LiPoх4/9x6E | ||||
