Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $15.48 | $15.17 | $14.69 | $14.06 | Contact US |

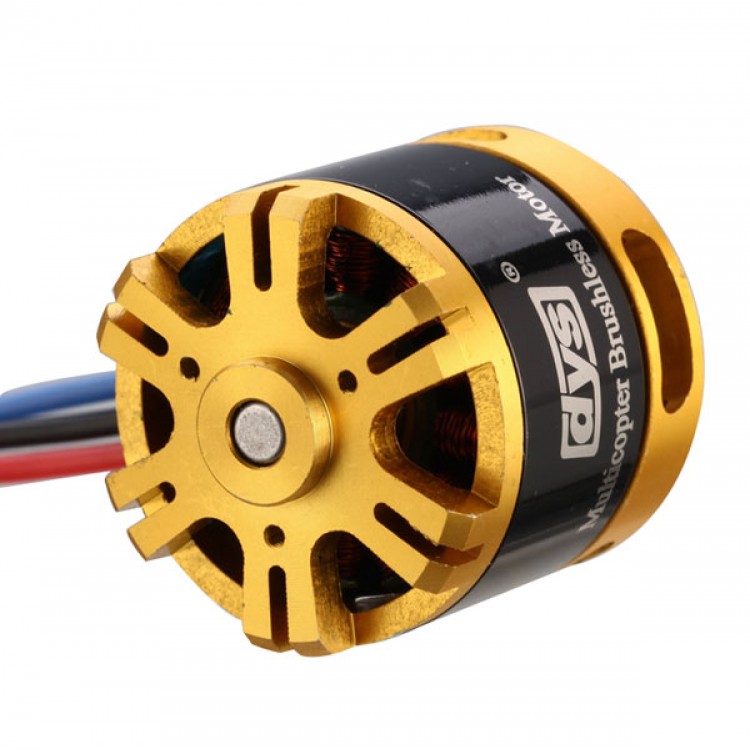

Multi Rotor Brushless Motor BE2208-7 (2600KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................2600
- Configuration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................3.17mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×26mm
- Weight (g)...................................................................................................44g
- No.of Cells(Lipo).....................................................................................2-3S
- Max Continuous current(A)............................................................43.1A
- Max Continuous Power(W)...........................................................478W
- Internal resistance..............................................................................0.044Ω
Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
BE2208-7 (2600KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
V | A | rpm | A | g | W | ||
7.4 | 1.1 | 19200 | 14 | 477 | 103.6 | LiPoх2/6x5E | |
28.8 | 561 | 213.1 | LiPoх2/7x5E | ||||
30 | 680 | 222.0 | LiPoх2/8x4E | ||||
11.1 | 1.2 | 28800 | 24.5 | 872 | 272.0 | LiPoх3/6x5E | |
43.1 | 800 | 478.4 | LiPoх3/7x5E |
