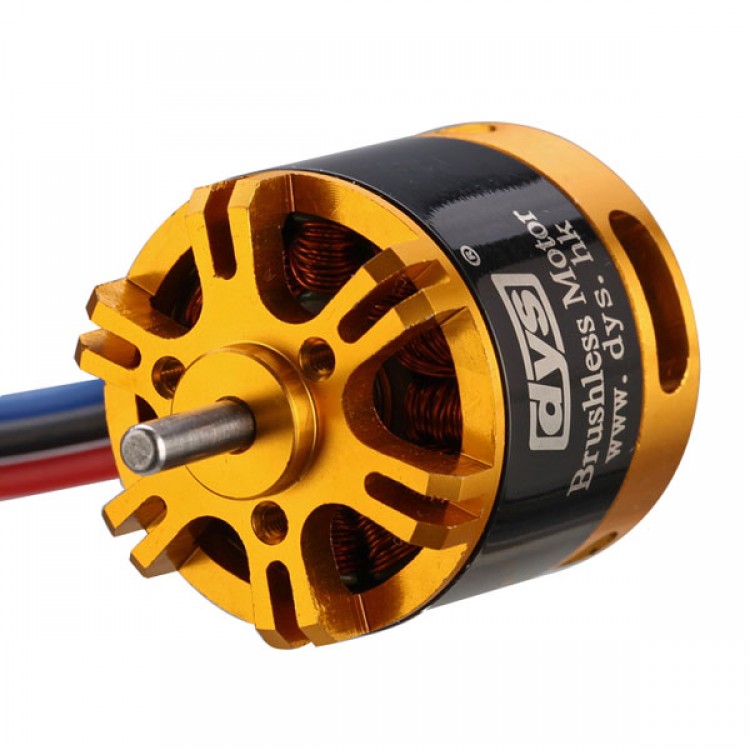

Multi Rotor Brushless Motor BE2212-5 (2300KV) Long Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................2300
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................12mm
- Shaft Diameter.......................................................................................3.17mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×30mm
- Weight (g)...................................................................................................66g
- No.of Cells(Lipo).....................................................................................3-4S
- Max Continuous current(A)............................................................39A
- Max Continuous Power(W)...........................................................288W
- Internal resistance..............................................................................0.032Ω
| Item No. | Weight | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | SPEED | Pull | Power | Battery/prop | ||
| V | A | rpm | A | rpm | g | W | |||
| BE2212-5 (2300KV) | 60g | 7.4 | 1.5 | 17177 | 12.3 | 14554 | 430 | 91.0 | LiPoх3/7X4.5E |
| 31.2 | 9669 | 800 | 230.9 | LiPoх3/8X4E | |||||
| 28.5 | 10680 | 650 | 210.9 | LiPoх3/9X6E | |||||
| 34.2 | 8760 | 920 | 253.1 | LiPoх3/11X5.5E | |||||
| 39 | 7371 | 1000 | 288.6 | LiPoх3/12X10 | |||||
