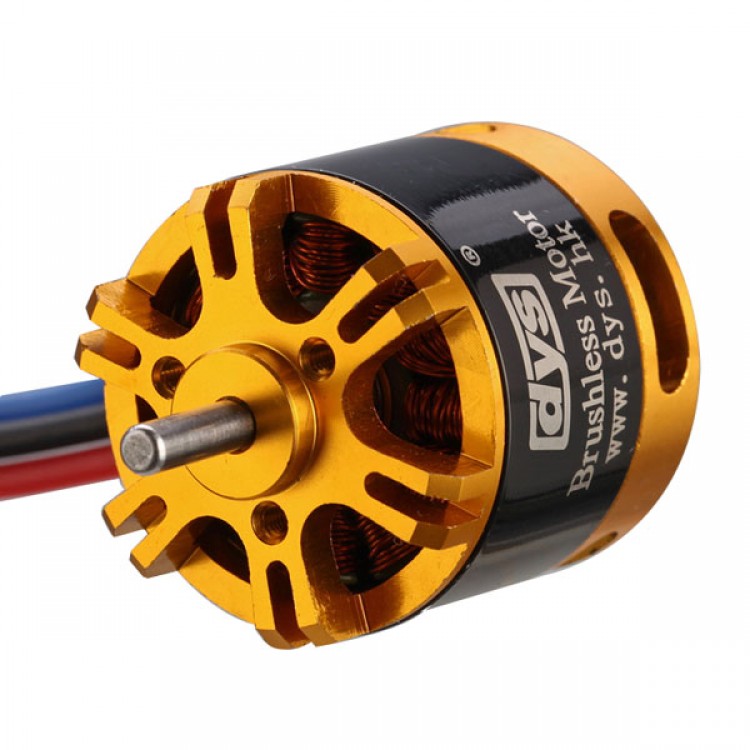

Multi Rotor Brushless Motor BE2212-8 (1450KV) Long Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1450
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................12mm
- Shaft Diameter.......................................................................................3.17mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×30mm
- Weight (g)...................................................................................................66g
- No.of Cells(Lipo).....................................................................................3-4S
- Max Continuous current(A)............................................................39A
- Max Continuous Power(W)...........................................................432W
- Internal resistance..............................................................................0.067Ω
| Item No. | Weight | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | SPEED | Pull | Power | Battery/prop | ||
| V | A | rpm | A | rpm | g | W | |||
| BE2212-8 (1450KV) | 66g | 11.1 | 0.9 | 16302 | 12.3 | 14554 | 430 | 136.5 | LiPoх3/7X4.5E |
| 21.8 | 10029 | 886 | 242.0 | LiPoх3/8X4E | |||||
| 28.5 | 10680 | 650 | 316.4 | LiPoх3/9X6E | |||||
| 34.2 | 8760 | 920 | 379.6 | LiPoх3/11X5.5E | |||||
| 39 | 7371 | 1000 | 432.9 | LiPoх3/12X10E | |||||
