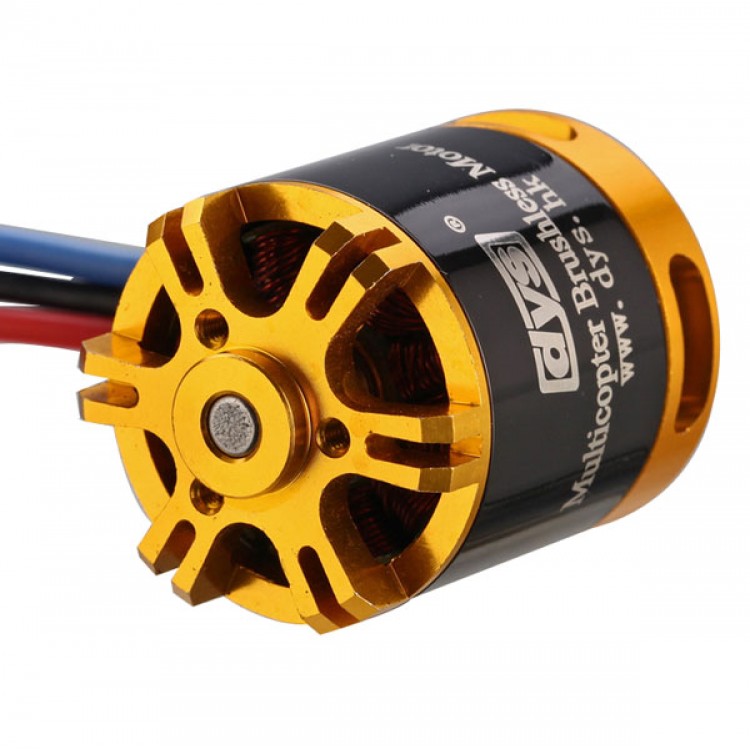

Multi Rotor Brushless Motor BE2217-10 (800KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................800
- Configuration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................17mm
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×36mm
- Weight (g)...................................................................................................80g
- No.of Cells(Lipo).....................................................................................3-4S
- Max Continuous current(A)............................................................16.1A
- Max Continuous Power(W)...........................................................178W
- internal resistance..............................................................................0.131Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||||
| BE2217-10 (800KV) | weight | VOLTAGE | CURRENT | SPEED | CURRENT | SPEED | Pull | Power | Battery/prop |
| V | A | rpm | A | rpm | g | W | |||
| 74g | 11.1 | 0.8 | 8957 | 7.2 | 7731 | 360 | 79.9 | LiPoх3/7X5E | |
| 8.2 | 7594 | 470 | 91.0 | LiPoх3/8X4E | |||||
| 9.7 | 7183 | 640 | 107.7 | LiPoх3/9X6SF | |||||
| 12.2 | 7071 | 850 | 135.4 | LiPoх3/10X4.7SF | |||||
| 16.1 | 6617 | 1040 | 178.7 | LiPoх3/12X3.8SF | |||||
