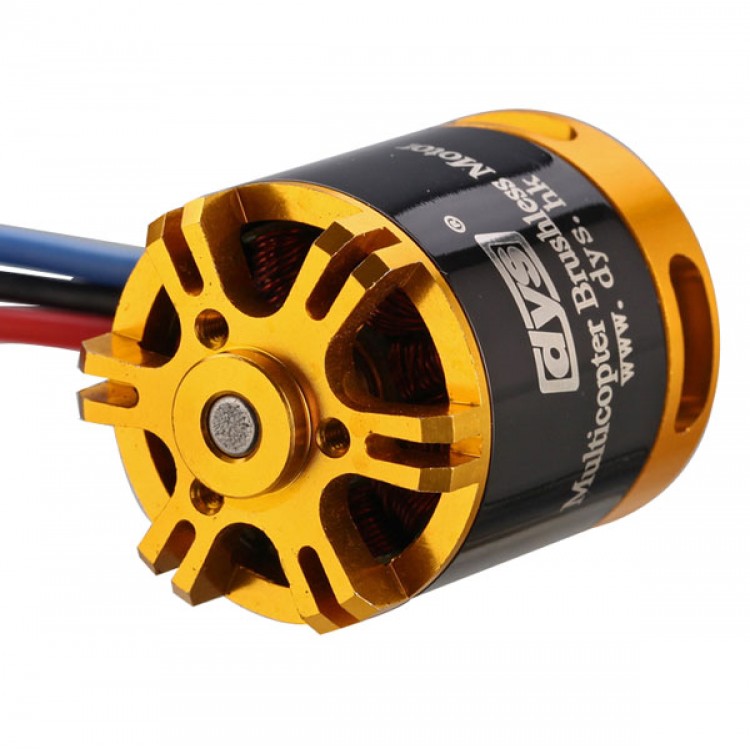

Multi Rotor Brushless Motor BE2217-9 (930KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................930
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................22mm
- Stator Length..........................................................................................17mm
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ28×36mm
- Weight (g)...................................................................................................80g
- No.of Cells(Lipo).....................................................................................3-4S
- Max Continuous current(A)............................................................16.1A
- Max Continuous Power(W)...........................................................178W
- internal resistance..............................................................................0.131
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||||
| BE2217-9 (930KV) | weight | VOLTAGE | CURRENT | SPEED | CURRENT | SPEED | Pull | Power | Battery/prop |
| V | A | rpm | A | rpm | g | W | |||
| 74g | 11.1 | 0.7 | 10320 | 8.6 | 8717 | 460 | 95.5 | LiPoх3/7X5E | |
| 9.7 | 8451 | 600 | 107.7 | LiPoх3/8X4E | |||||
| 11.6 | 8023 | 810 | 128.8 | LiPoх3/9X6SF | |||||
| 16.1 | 6926 | 1000 | 178.7 | LiPoх3/10X4.7SF | |||||
| 21.1 | 6583 | 1200 | 234.2 | LiPoх3/12X3.8SF | |||||
