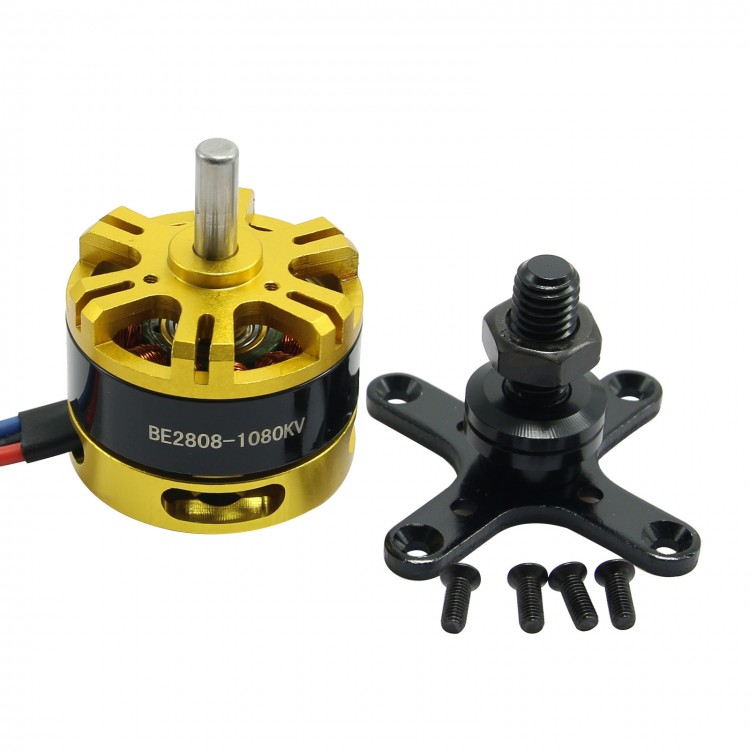

Multi Rotor Brushless Motor BE2808-13 (1080KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1080
- Configuration....................................................................................NP
- Stator Diameter....................................................................................28mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................5mm
- Motor Dimensions(Dia.*Len)...............................................Φ35×42mm
- Weight (g)...................................................................................................75g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................22.2A
- Max Continuous Power(W)...........................................................523W
- Internal resistance..............................................................................0.081Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE2808-13 (1080KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.8 | 12080 | 7.8 | 470 | 86.6 | LiPoх3/7x4E | |
| 14.5 | 750 | 161.0 | LiPoх3/8x4E | ||||
| 17.2 | 950 | 190.9 | LiPoх3/9x6E | ||||
| 14.8 | 0.9 | 16110 | 12.3 | 770 | 182.0 | LiPoх4/7x4E | |
| 22 | 1120 | 325.6 | LiPoх4/8x4E | ||||
| 24.5 | 1350 | 362.6 | LiPoх4/9x6E | ||||
| 18.5 | 0.9 | 20140 | 17.7 | 1100 | 327.5 | LiPoх5/7x4E | |
| 29 | 1420 | 536.5 | LiPoх5/8x4E | ||||
| 31.4 | 1620 | 580.9 | LiPoх5/9x6E | ||||
| 22.2 | 1 | 24170 | 23.6 | 1430 | 523.9 | LiPoх6/7x4E | |
