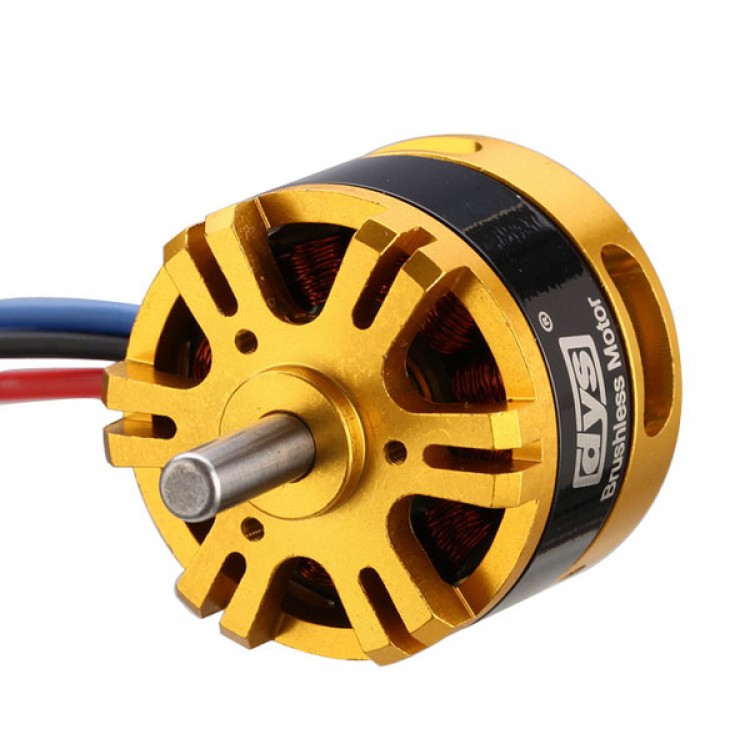

Multi Rotor Brushless Motor BE2808-8 (1760KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1760
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................28mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................5mm
- Motor Dimensions(Dia.*Len)...............................................Φ35×42mm
- Weight (g)...................................................................................................75g
- No.of Cells(Lipo).....................................................................................3-4S
- Max Continuous current(A)............................................................14.8A
- Max Continuous Power(W)...........................................................535W
- Internal resistance..............................................................................0.033Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE2808-8 (1760KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 1.7 | 19520 | 23.7 | 940 | 263.1 | LiPoх3/7x4E | |
| 36.7 | 1150 | 407.4 | LiPoх3/8x4E | ||||
| 14.8 | 1.8 | 26030 | 36.2 | 1390 | 535.8 | LiPoх4/7x4E | |
