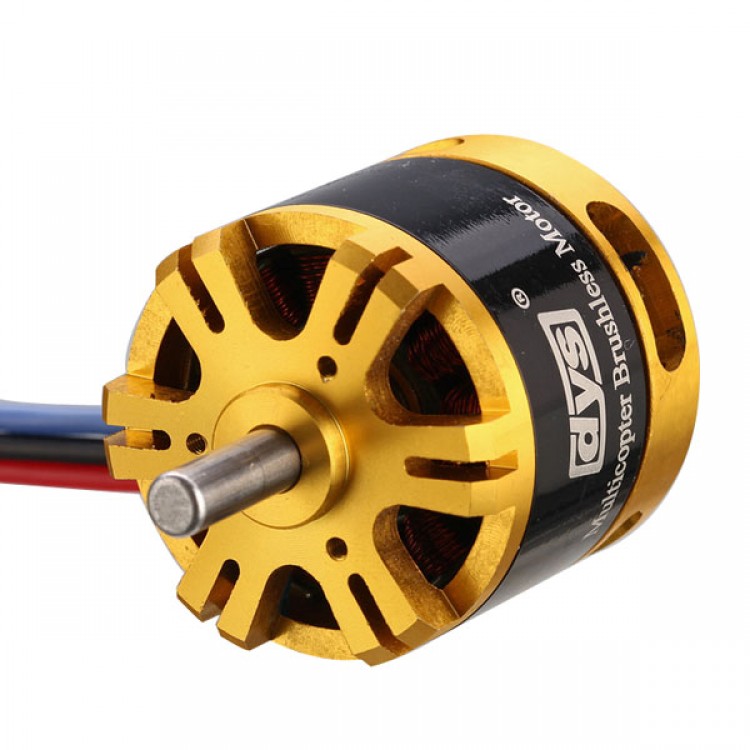

Multi-Rotor Brushless Motor BE2814-8.5(910KV) Long Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................910
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................28mm
- Stator Length..........................................................................................14mm
- Shaft Diameter.......................................................................................5.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
- Weight (g)...................................................................................................100g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................22.2A
- Max Continuous Power(W)...........................................................759W
- Internal resistance..............................................................................0.061Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE2814-8.5 (910KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 1 | 10100 | 11.4 | 670 | 126.5 | LiPoх3/8x4E | |
| 14.2 | 900 | 157.6 | LiPoх3/9x6E | ||||
| 14.8 | 1000 | 164.3 | LiPoх3/10x5E | ||||
| 14.8 | 1.1 | 13460 | 18.4 | 1100 | 272.3 | LiPoх4/8x4E | |
| 21.6 | 1390 | 319.7 | LiPoх4/9x6E | ||||
| 23 | 1560 | 340.4 | LiPoх4/10x5E | ||||
| 18.5 | 1.2 | 16830 | 25.9 | 1540 | 479.2 | LiPoх5/8x4E | |
| 29.9 | 1910 | 553.2 | LiPoх5/9x6E | ||||
| 32.1 | 2130 | 593.9 | LiPoх5/10x5E | ||||
| 22.2 | 1.2 | 20200 | 34.2 | 1990 | 759.2 | LiPoх6/8x4E | |
DYS final released BE series super strength out-runner high-end brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series high-end brushless motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
