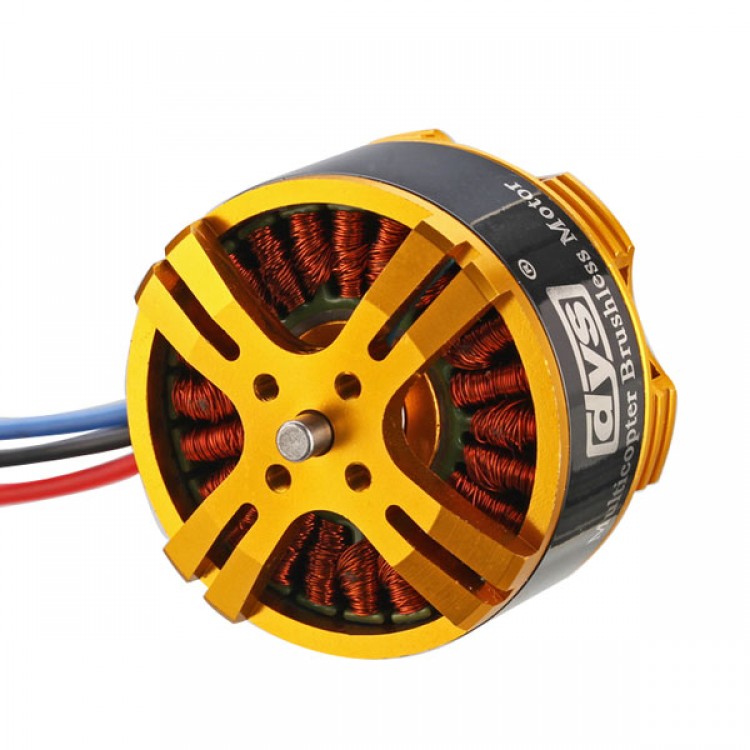

Multi Rotor Brushless Motor BE3608-11 (630KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................630
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................36mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ42×15mm
- Weight (g)...................................................................................................83g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................32.1A
- Max Continuous Power(W)...........................................................700W
- Internal resistance..............................................................................0.076Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE3608-11 (630KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.7 | 6985 | 8 | 713 | 88.8 | LiPoх3/1047(APC) | |
| 11.9 | 1029 | 132.1 | LiPoх3/1238(APC) | ||||
| 15.1 | 1119 | 167.6 | LiPoх3/1365( CF prop） | ||||
| 12 | 927 | 133.2 | LiPoх3/1447(CF prop） | ||||
| 17.7 | 1392 | 196.5 | LiPoх3/1503(CF prop） | ||||
| 14.8 | 0.8 | 9285 | 12.6 | 1154 | 186.5 | LiPoх4/1047(APC) | |
| 19.3 | 1650 | 285.6 | LiPoх4/1238(APC) | ||||
| 23.2 | 1652 | 343.4 | LiPoх4/1365(CF prop） | ||||
| 17.8 | 1442 | 263.4 | LiPoх4/1447(CF prop） | ||||
| 25.5 | 2069 | 377.4 | LiPoх4/1503(CF prop） | ||||
| 18.5 | 0.9 | 11675 | 17.6 | 1620 | 325.6 | LiPoх5/1047(APC) | |
| 22.4 | 1970 | 414.4 | LiPoх5/1238(APC) | ||||
| 24.6 | 1805 | 455.1 | LiPoх5/1365(CF prop） | ||||
| 24.4 | 1987 | 451.4 | LiPoх5/1447(CF prop） | ||||
| 30.1 | 2275 | 556.9 | LiPoх5/1503(CF prop） | ||||
| 22.2 | 0.9 | 13775 | 18.1 | 1783 | 401.8 | LiPoх6/1047(APC) | |
| 22.6 | 2121 | 501.7 | LiPoх6/1238(APC) | ||||
| 27 | 1990 | 599.4 | LiPoх6/1365(CF prop） | ||||
| 26.3 | 2123 | 583.9 | LiPoх6/1447(CF prop） | ||||
| 32.1 | 2369 | 712.6 | LiPoх6/1503(CF prop） | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
