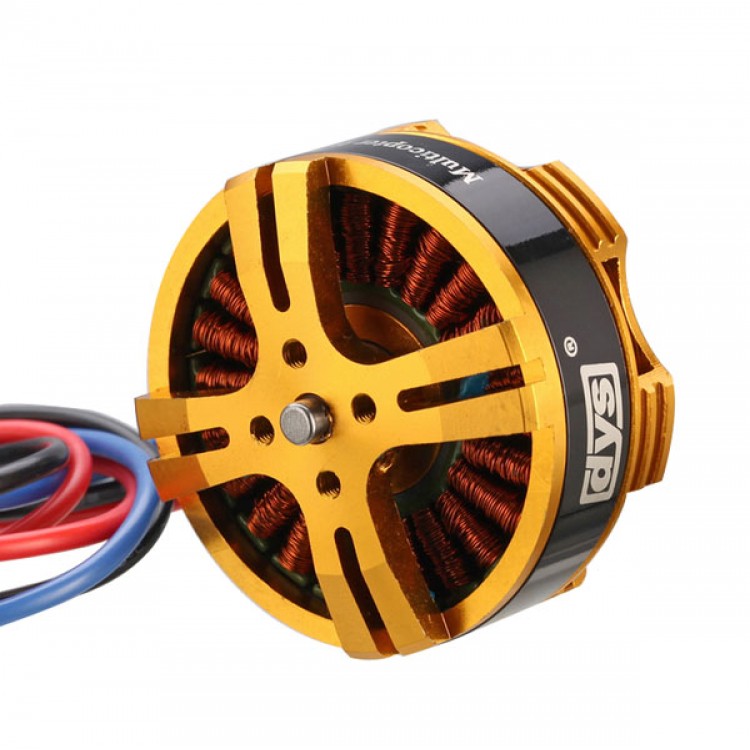

Multi Rotor Brushless Motor BE4108-10 (580KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
KV..............................................................................................................580
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................22.2A
Max Continuous Power(W)...........................................................821W
internal resistance..............................................................................0.098Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE4108-10 (580KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.9 | 6440 | 6.8 | 455 | 75.5 | LiPoх3/10x4.7(APC) | |
| 11.2 | 700 | 124.3 | LiPoх3/12x3.8(APC) | ||||
| 13.9 | 800 | 154.3 | LiPoх3/13x6.5(CF Prop） | ||||
| 10.8 | 620 | 119.9 | LiPoх3/14x3.8(CF Prop） | ||||
| 14.8 | 0.9 | 8580 | 11 | 770 | 162.8 | LiPoх4/10x4.7(APC) | |
| 18.3 | 1180 | 270.8 | LiPoх4/12x3.8(APC) | ||||
| 21.5 | 1225 | 318.2 | LiPoх4/13x6.5(CF Prop） | ||||
| 16.7 | 1020 | 247.2 | LiPoх4/14x3.8(CF Prop） | ||||
| 18.5 | 1 | 10730 | 15.6 | 1150 | 288.6 | LiPoх5/10x4.7(APC) | |
| 26 | 1680 | 481.0 | LiPoх5/12x3.8(APC) | ||||
| 29.1 | 1640 | 538.4 | LiPoх5/13x6.5(CF Prop） | ||||
| 23.2 | 1490 | 429.2 | LiPoх5/14x3.8(CF Prop） | ||||
| 22.2 | 1 | 12880 | 22.1 | 1560 | 490.6 | LiPoх6/10x4.7(APC) | |
| 34 | 2140 | 754.8 | LiPoх6/12x3.8(APC) | ||||
| 37 | 2000 | 821.4 | LiPoх6/13x6.5(CF Prop） | ||||
