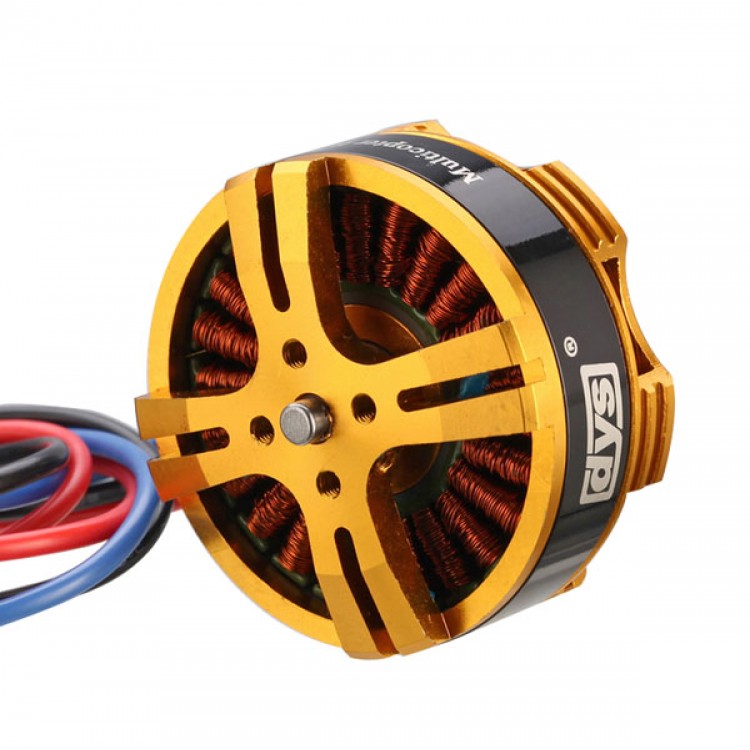

Multi Rotor Brushless Motor BE4108-12 (480KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................480
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................41mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
- Weight (g)...................................................................................................113g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................22.2A
- Max Continuous Power(W)...........................................................599W
- internal resistance..............................................................................0.125Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE4108-12 (480KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.7 | 5330 | 4.4 | 455 | 48.8 | LiPoх3/10x4.7(APC) | |
| 6.9 | 700 | 76.6 | LiPoх3/12x3.8(APC) | ||||
| 9 | 800 | 99.9 | LiPoх3/13x6.5(CF Prop） | ||||
| 7 | 620 | 77.7 | LiPoх3/14x3.8(CF Prop） | ||||
| 10.7 | 1010 | 118.8 | LiPoх3/15x5.5(CF Prop） | ||||
| 14.8 | 0.7 | 7100 | 7 | 770 | 103.6 | LiPoх4/10x4.7(APC) | |
| 11.5 | 1180 | 170.2 | LiPoх4/12x3.8(APC) | ||||
| 14.1 | 1225 | 208.7 | LiPoх4/13x6.5(CF Prop） | ||||
| 10.8 | 1020 | 159.8 | LiPoх4/14x3.8(CF Prop） | ||||
| 16 | 1540 | 236.8 | LiPoх4/15x5.5(CF Prop） | ||||
| 18.5 | 0.8 | 8880 | 10.6 | 1150 | 196.1 | LiPoх5/10x4.7(APC) | |
| 16.7 | 1680 | 309.0 | LiPoх5/12x3.8(APC) | ||||
| 19.3 | 1640 | 357.1 | LiPoх5/13x6.5(CF Prop） | ||||
| 15.3 | 1490 | 283.1 | LiPoх5/14x3.8(CF Prop） | ||||
| 21.5 | 2050 | 397.8 | LiPoх5/15x5.5(CF Prop） | ||||
| 22.2 | 0.8 | 10660 | 14.2 | 1560 | 315.2 | LiPoх6/10x4.7(APC) | |
| 22.1 | 2140 | 490.6 | LiPoх6/12x3.8(APC) | ||||
| 24.7 | 2000 | 548.3 | LiPoх6/13x6.5(CF Prop） | ||||
| 20 | 1920 | 444.0 | LiPoх6/14x3.8(CF Prop） | ||||
| 27 | 2450 | 599.4 | LiPoх6/15x5.5(CF Prop） | ||||
