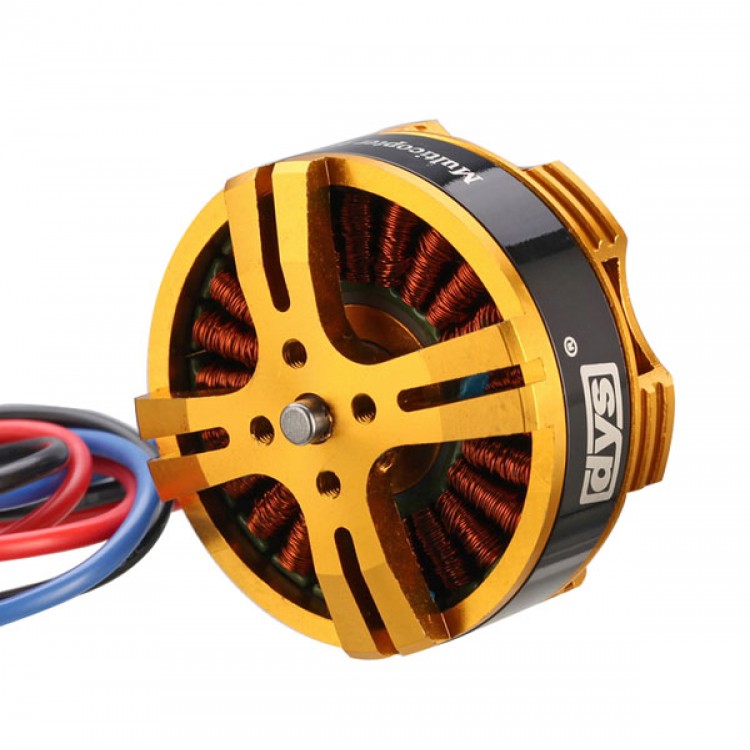

Multi Rotor Brushless Motor BE4108-15 (380KV) Short Shaft for Quad Hexa Octa Multicopter
Specifications:
KV..............................................................................................................380
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................22.2A
Max Continuous Power(W)...........................................................381W
internal resistance..............................................................................0.193Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE4108-15 (380KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.6 | 4180 | 2.4 | 287 | 26.6 | LiPoх3/10x4.7(APC) | |
| 3.6 | 430 | 40.0 | LiPoх3/12x3.8(APC) | ||||
| 5.3 | 570 | 58.8 | LiPoх3/13x6.5(CF Prop） | ||||
| 3.9 | 410 | 43.3 | LiPoх3/14x3.8(CF Prop） | ||||
| 6.4 | 750 | 71.0 | LiPoх3/15x5.5(CF Prop） | ||||
| 14.8 | 0.6 | 5580 | 3.8 | 550 | 56.2 | LiPoх4/10x4.7(APC) | |
| 6 | 780 | 88.8 | LiPoх4/12x3.8(APC) | ||||
| 8.2 | 935 | 121.4 | LiPoх4/13x6.5(CF Prop） | ||||
| 6.2 | 705 | 91.8 | LiPoх4/14x3.8(CF Prop） | ||||
| 9.6 | 1170 | 142.1 | LiPoх4/15x5.5(CF Prop） | ||||
| 18.5 | 0.7 | 6970 | 5.5 | 770 | 101.8 | LiPoх5/10x4.7(APC) | |
| 9 | 1190 | 166.5 | LiPoх5/12x3.8(APC) | ||||
| 11.5 | 1310 | 212.8 | LiPoх5/13x6.5(CF Prop） | ||||
| 8.8 | 1060 | 162.8 | LiPoх5/14x3.8(CF Prop） | ||||
| 13.4 | 1650 | 247.9 | LiPoх5/15x5.5(CF Prop） | ||||
| 22.2 | 0.7 | 8360 | 7.9 | 1070 | 175.4 | LiPoх6/10x4.7(APC) | |
| 13 | 1660 | 288.6 | LiPoх6/12x3.8(APC) | ||||
| 15.4 | 1690 | 341.9 | LiPoх6/13x6.5(CF Prop） | ||||
| 11.8 | 1450 | 262.0 | LiPoх6/14x3.8(CF Prop） | ||||
| 17.2 | 2080 | 381.8 | LiPoх6/15x5.5(CF Prop） | ||||
