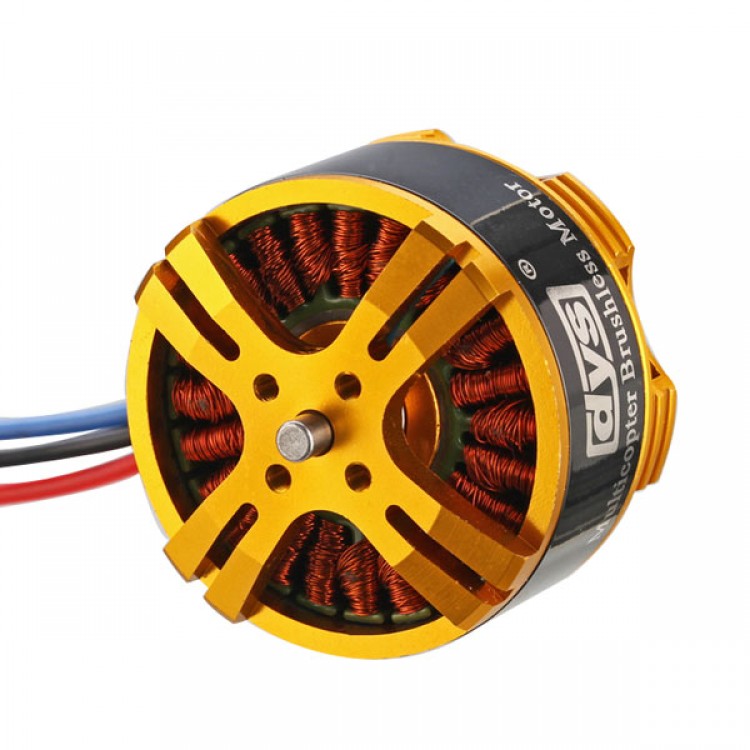

Multi-Rotor Brushless Motor BE4114-10(350KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................350
- Configuration....................................................................................NP
- Stator Diameter....................................................................................41mm
- Stator Length..........................................................................................14mm
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ46×31mm
- Weight (g)...................................................................................................150g
- No.of Cells(Lipo).....................................................................................5-6S
- Max Continuous current(A)............................................................18.5A
- Max Continuous Power(W)...........................................................212W
- Internal resistance..............................................................................0.126
| Item No. | ON LOAD | LOAD TYPE | |||||
| KV | VOLTAGE | CURRENT | Pull | Power | EEP | Battery/prop | |
| rpm/v | V | A | g | W | % | ||
| BE4114-10(350KV) | 350 | 22.2 | 2.4 | 600 | 53.28 | 11.26 | LiPoх5/15X5.5 |
| 3 | 700 | 66.6 | 10.51 | ||||
| 3.5 | 800 | 77.7 | 10.30 | ||||
| 4 | 900 | 88.8 | 10.14 | ||||
| 4.9 | 1000 | 108.78 | 9.19 | ||||
| 5.7 | 1100 | 126.54 | 8.69 | ||||
| 14.5 | 2100 | 321.9 | 6.52 | ||||
| 18.5 | 2.9 | 600 | 53.65 | 11.18 | LiPoх6/15X5.5 | ||
| 3.6 | 700 | 66.6 | 10.51 | ||||
| 4.3 | 800 | 79.55 | 10.06 | ||||
| 5.1 | 900 | 94.35 | 9.54 | ||||
| 5.8 | 1000 | 107.3 | 9.32 | ||||
| 6.5 | 1100 | 120.25 | 9.15 | ||||
| 11.5 | 1670 | 212.75 | 7.85 | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
