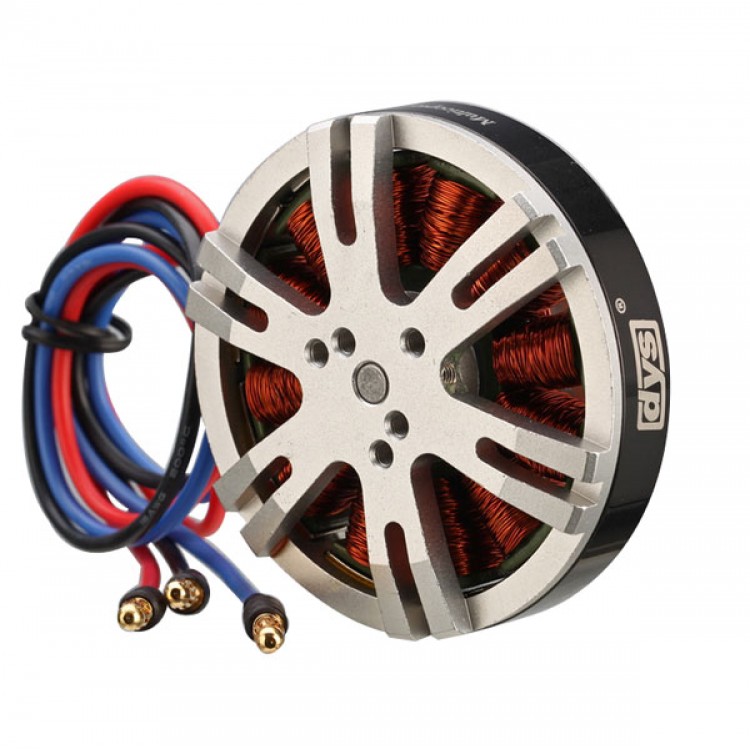

Multi-Rotor Brushless Motor BE5208-25(330KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................330
- Configuration....................................................................................NP
- Stator Diameter....................................................................................52mm
- Stator Length..........................................................................................8mm
- Shaft Diameter.......................................................................................5.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ63x30mm
- Weight (g)...................................................................................................200g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................28.2A
- Max Continuous Power(W)...........................................................626W
- Internal resistance..............................................................................0.106Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE5208-25(330KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.6 | 3680 | 5 | 680 | 55.5 | LiPoх3/16x8(APC) | |
| 10 | 1200 | 111.0 | LiPoх3/18x5.5(APC） | ||||
| 14.8 | 0.6 | 4900 | 8.4 | 1190 | 124.3 | LiPoх4/16x8(APC) | |
| 15.6 | 1890 | 230.9 | LiPoх4/18x5.5(APC） | ||||
| 18.5 | 0.7 | 6130 | 12.4 | 1800 | 229.4 | LiPoх5/16x8(APC) | |
| 22 | 2650 | 407.0 | LiPoх5/18x5.5(APC） | ||||
| 22.2 | 0.7 | 7360 | 17.4 | 2500 | 386.3 | LiPoх6/16x8(APC) | |
| 28.2 | 3300 | 626.0 | LiPoх6/18x5.5(APC） | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
